Rear Drive Shaft Installation
INSTALLATION1. Insert the rear drive shaft into rear axle.
2. Temporarily tighten the axle nut.

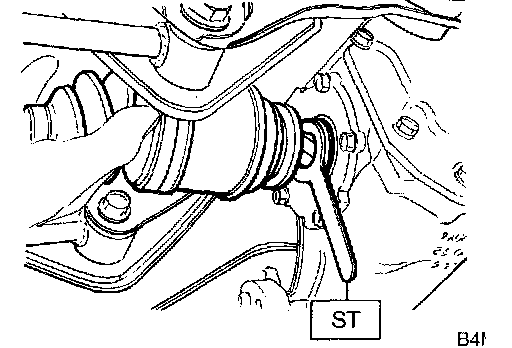

3. Install the rear drive shaft to rear differential using ST.
ST2 8099PA090 OIL SEAL PROTECTOR
4. Attach the front lateral link and rear lateral link to housing using a new self-locking nuts.
Tightening torque: 137 Nm (14 kgf-m, 104 ft. lbs.)
5. Attach the trailing link to housing using a new self-locking nut.
Tightening torque: 113 Nm (11.5 kgf-m, 83 ft. lbs.)
6. Install the stabilizer link.
Tightening torque: 45 Nm (4.6 kgf-m, 33 ft. lbs.)

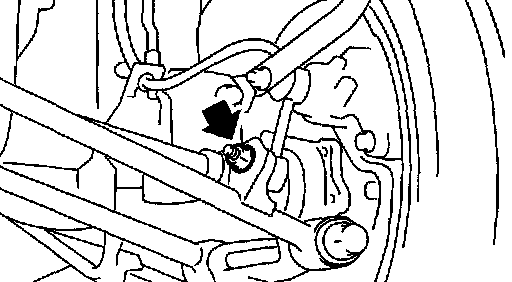

7. Install the ABS sensor.
Tightening torque: 32 Nm (3.3 kgf-m, 24 ft. lbs.)
8. Using the ST1 and ST2, pull the rear drive shaft into place.
ST1 922431000 AXLE SHAFT INSTALLER
ST2 92739000 ADAPTER
9. Tighten a new axle nut to the specified torque with brake pedal depressed.
Tightening torque: 186 Nm (19 kgf-m, 137 ft. lbs.)
10. Lock the axle nut.
11. Install the wheel.
