Front Drive Shaft Installation

INSTALLATION

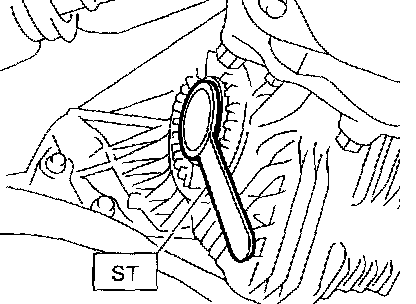

1. Using the ST, replace the differential side retainer oil seal with a new one.
ST 18675AA000 DIFFERENTIAL SIDE OIL SEAL INSTALLER





NOTE: Be sure to replace the oil seal with a new one when removing drive shaft.

2. Insert the front drive shaft into front axle.
3. Temporarily tighten the axle nut.





4. Install the front drive shaft to transmission using ST.
ST 28399SA10 OIL SEAL PROTECTOR

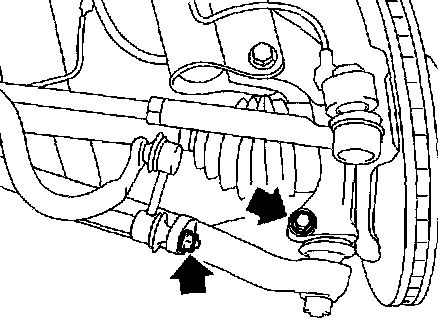

5. Install the ball joint to front axle.
Tightening torque (self-locking nut): 50 Nm (5.1 kgf-m, 37 ft. lbs.)





6. Install the stabilizer link.
Tightening torque (self-locking nut): 45 Nm (4.6 kgf-m, 33 ft. lbs.)
7. Install the tie-rod end.
Tightening torque (self-locking nut): 27 Nm (2.75 kgf-m, 19.9 ft. lbs.)





CAUTION: When connecting, do not hit the cap at bottom of tie-rod with hammer.

8. Tighten the castle nut to the specified torque and tighten further within 60° until pin hole is aligned with the slot in nut. Bend the cotter pin to lock.

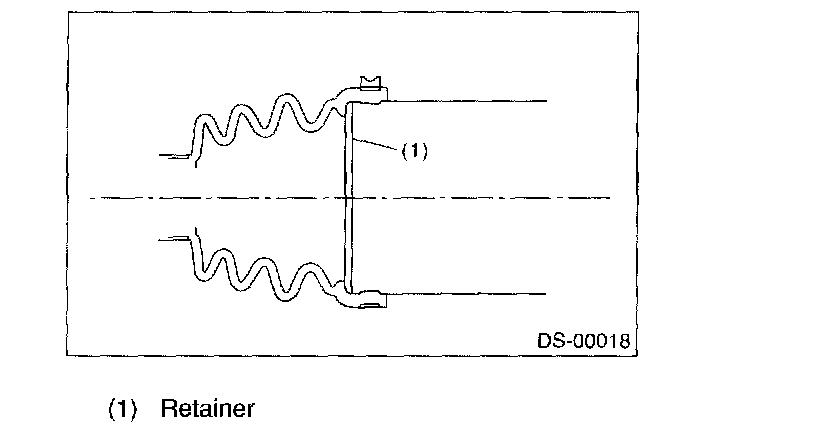

9. Make sure to recognize the position of AARi retainer.





10. Using the ST1 and ST2, pull the front drive shaft into place.
ST1 922431000 AXLE SHAFT INSTALLER
ST2 92739000 ADAPTER
11. Tighten a new axle nut to the specified torque with brake pedal depressed.
Tightening torque: 186 Nm (19 kgf-m, 137 ft. lbs.)





12. Lock the axle nut.
13. Install the ABS sensor bracket.
Tightening torque: 32 Nm (3.3 kgf-m, 24 ft. lbs.)
14. Add the transmission oil.
15. Install the wheel.
