Rear Seat Belt

REMOVAL

OUTER BELT SIDE

1. Remove the luggage floor mat.
2. Remove the rear seat.
3. Remove the rear quarter trim.

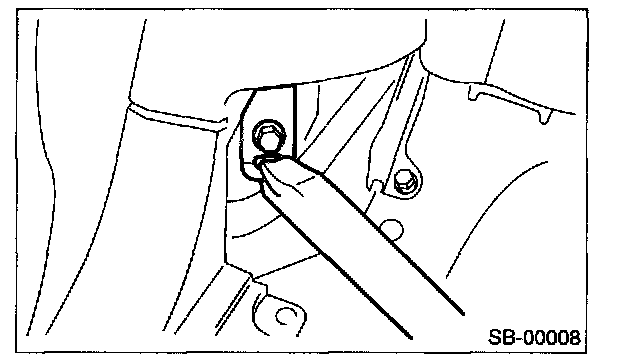

4. Remove the seat belt lower anchor bolt.

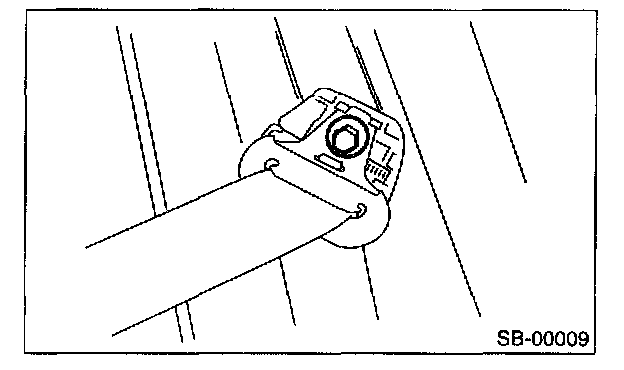

5. Remove the anchor cover. Remove the bolt and shoulder anchor from pillar.
6. Remove the rear quarter trim.

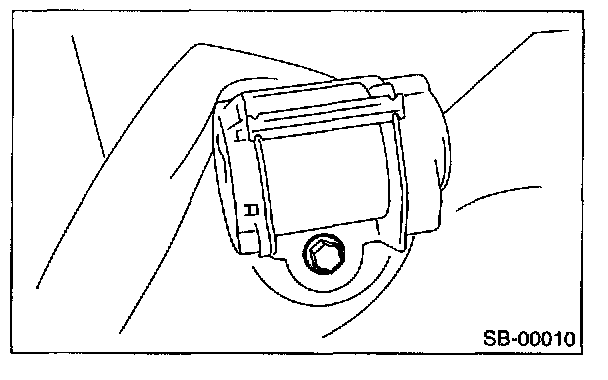

7. Remove the bolts, and then detach the outer belt side.

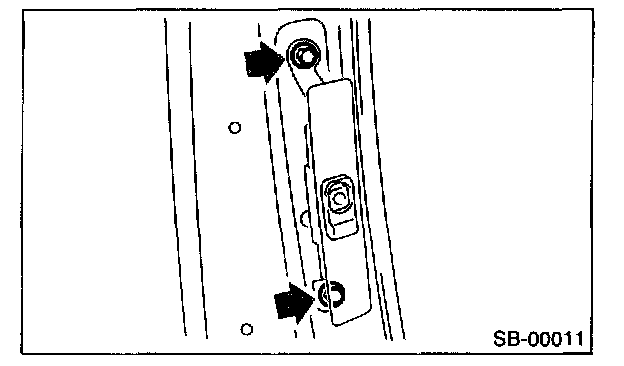

8. Remove the two bolts and adjustable anchor assembly.


OUTER BELT CENTER







1. Remove the anchor cover. Remove the bolt and then detach the shoulder anchor from pillar.
2. Remove the strut cap.
3. Remove the rear rail trim.
4. Remove the rear pillar upper trim.
5. Remove the rear skirt trim.
6. Remove the rear quarter lower trim.

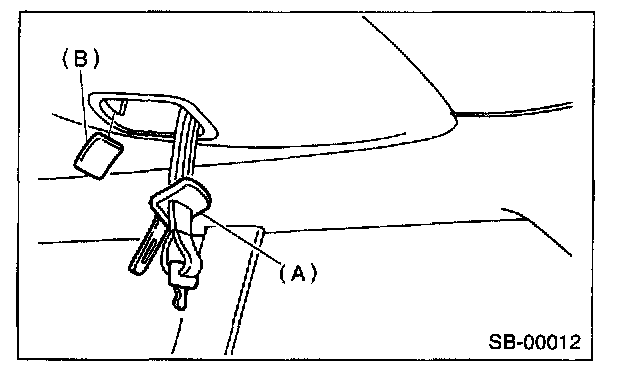

7. Remove the cover (B) while detaching snap lock carefully. Put the outer belt center tongue (A) out to the other side of the trim through the hole.
8. Remove the clips and hang down rear end of roof trim.

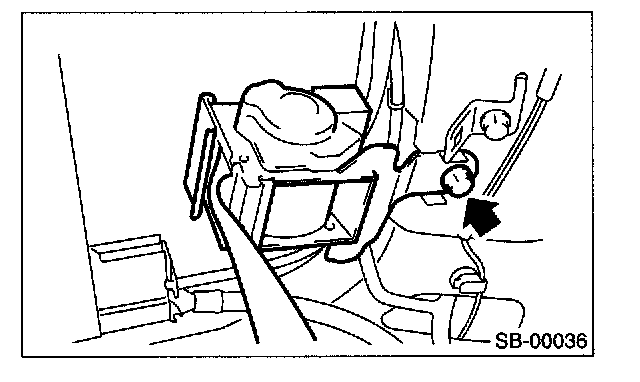

9. Disconnect the harness and connector, and then remove the outer belt center assembly.


INNER BELT

1. Remove the rear cushion.

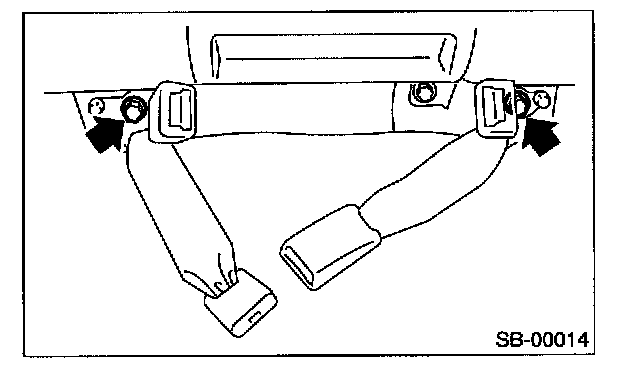

2. Remove the bolt, and then detach the inner belt.



INSTALLATION

OUTER BELT SIDE
Install in the reverse order of removal.

CAUTION: During installation, make sure that the seat belts are not twisted.
After installation, make sure that the seat belts can be smoothly extended and wound.



OUTER BELT CENTER
Install in the reverse order of removal.

CAUTION: During installation, make sure that the seat belts are not twisted.
After installation, make sure that the seat belts are smoothly extended and wound.

INNER BELT
Install in the reverse order of removal.

CAUTION: During installation, make sure that the seat belts are not twisted.
