Seat Belt Tensioner: Service and Repair

PRETENSIONER CONNECTOR

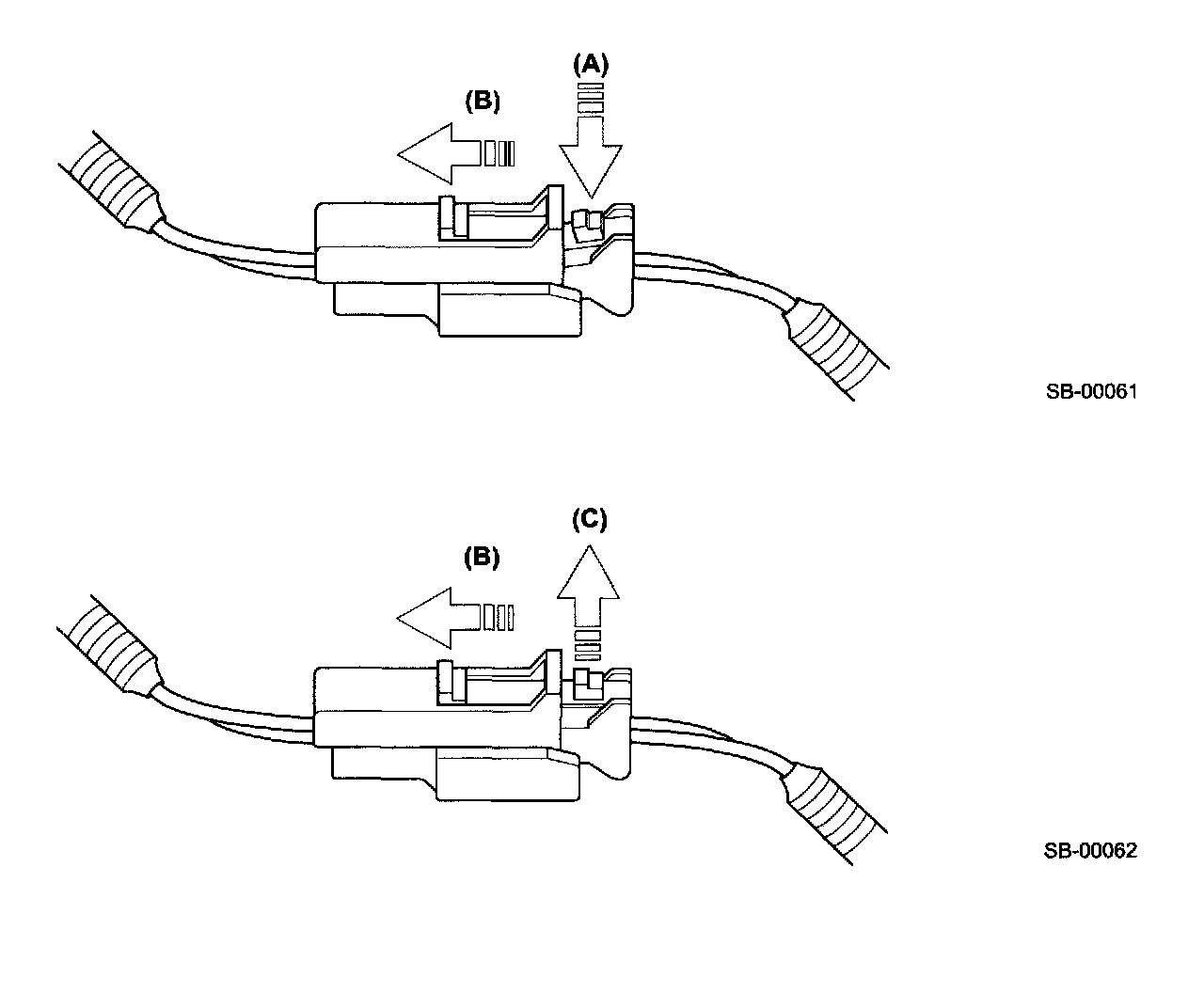

Disconnection: Hold slide lock moved in the direction of the arrow (B), then pull out the connector.

Part 1:

Part 2:

Connection:
Push the connector into the male connector carefully until a click is heard.
