Forester F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

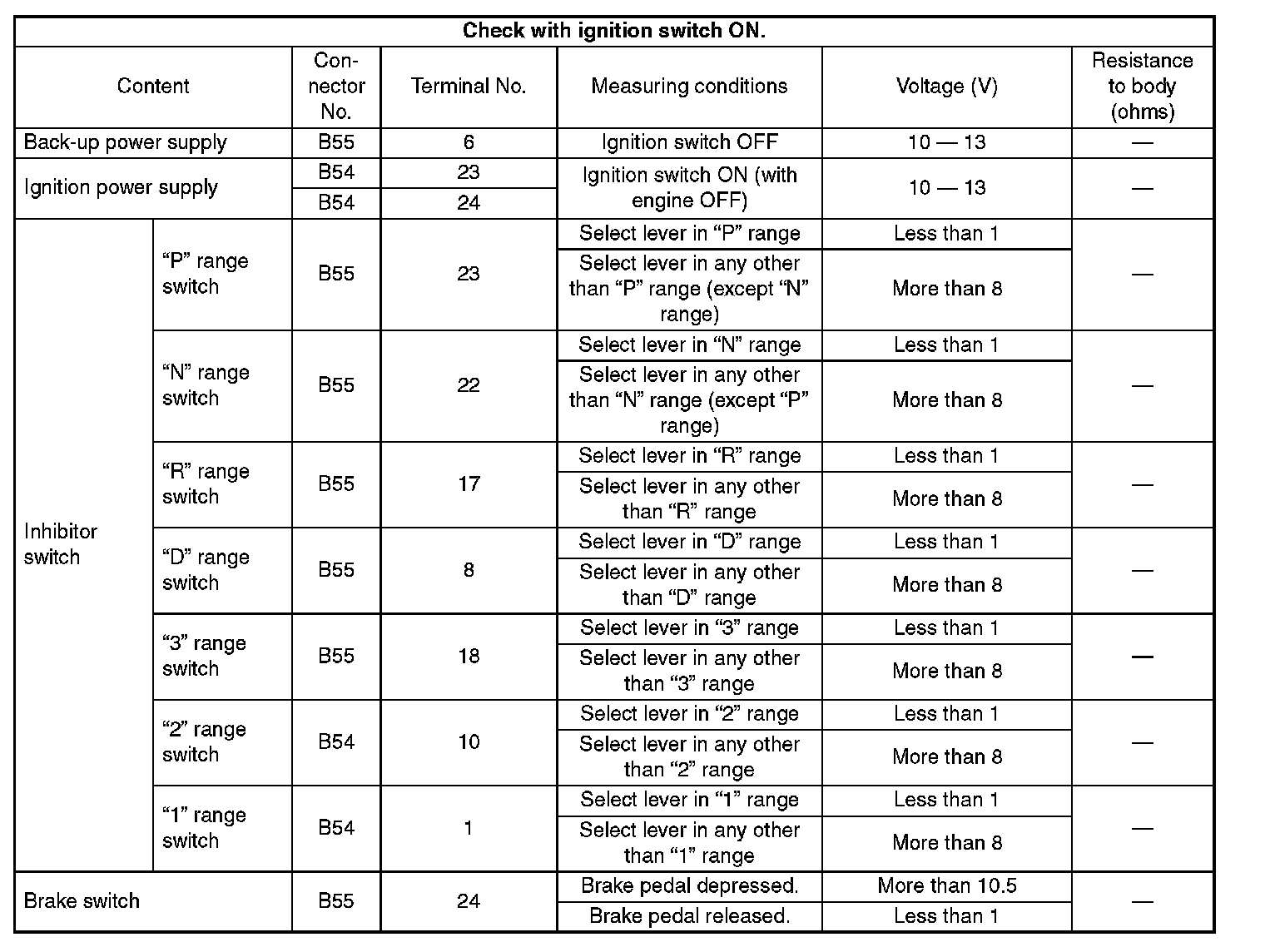

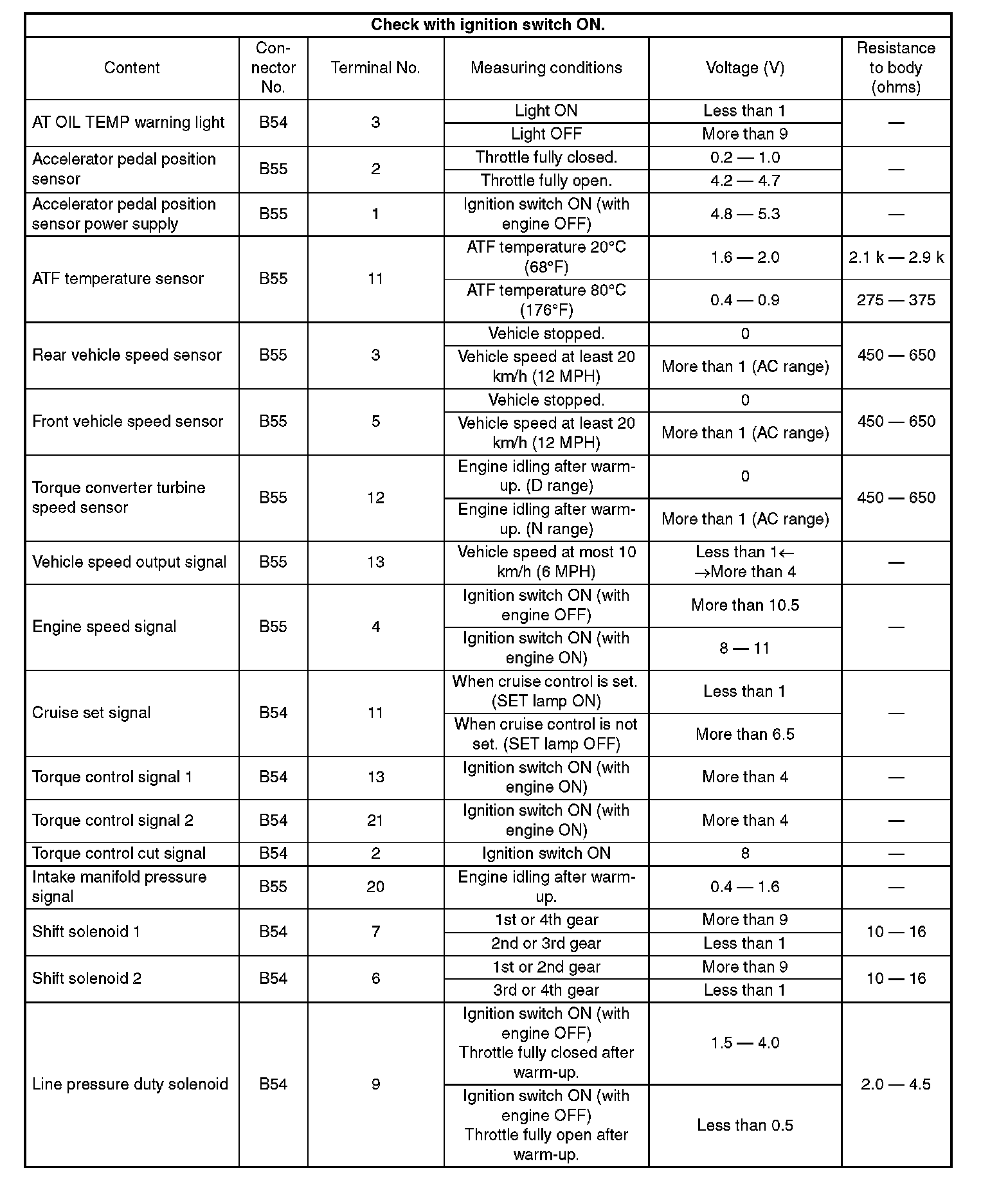

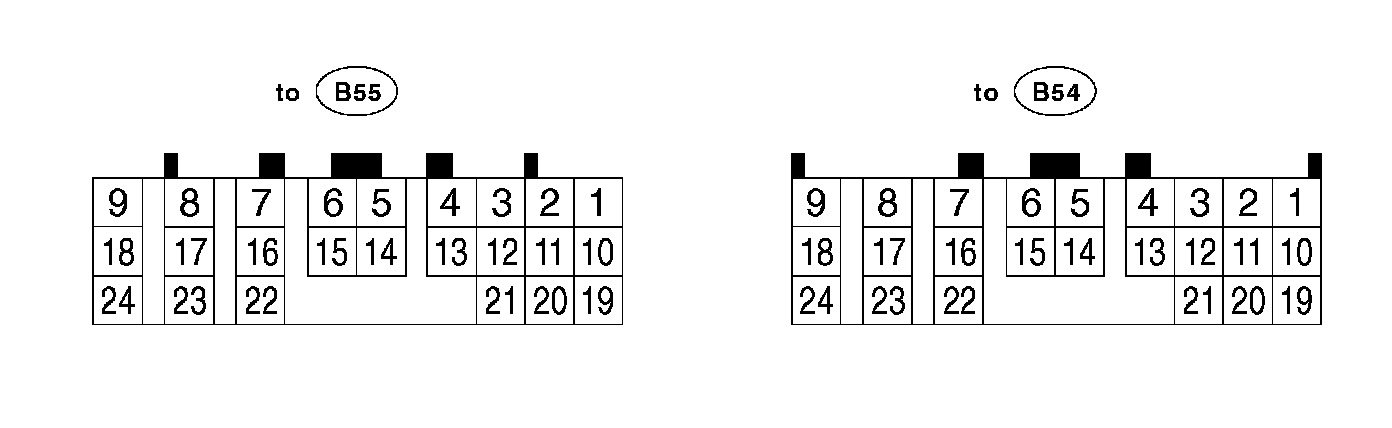

Transmission Control Module (TCM) I/O Signal
ELECTRICAL SPECIFICATION
