Intake Air Duct: Service and Repair

General Description Part 1:

General Description Part 2:

Air Intake Duct

REMOVAL

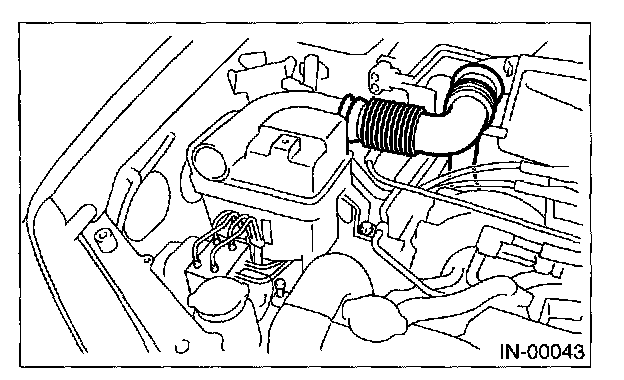

1. Remove the bolt (A) which installs air intake duct A on the front side of body.
2. Remove the clip (B) which connects air intake duct A to resonator chamber.




3. Remove the air intake duct A.




4. Remove the air intake duct B from resonator chamber and air cleaner case.

INSTALLATION

Install in the reverse order of removal.

NOTE: For tightening torque, refer to "COMPONENT".
