Canister Vent Valve: Service and Repair

Drain Valve

REMOVAL

1. Set the vehicle on a lift

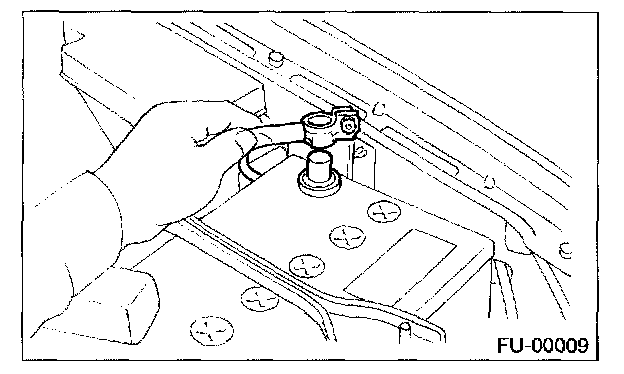

2. Disconnect the ground cable from battery
3. Lift-up the vehicle.
4. Remove the canister.

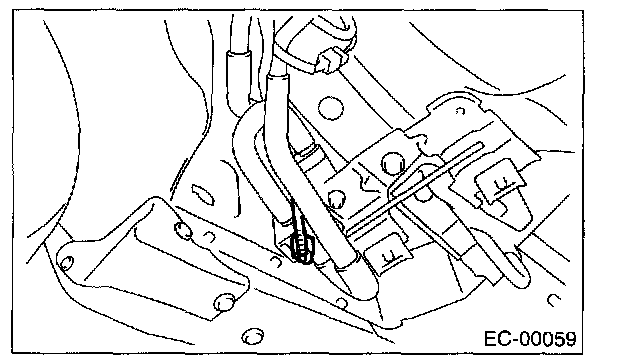

5. Disconnect the connector from drain valve

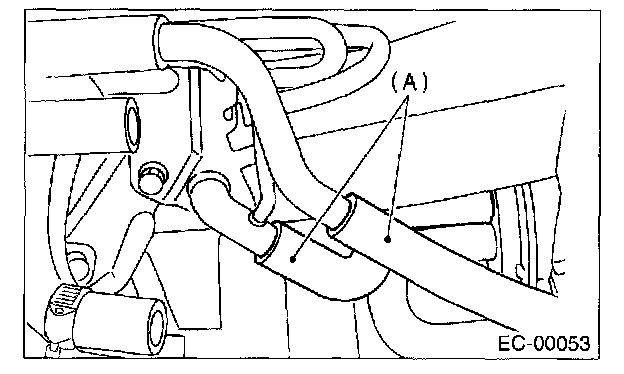

6. Disconnect the evaporation hoses (A) from joint pipes

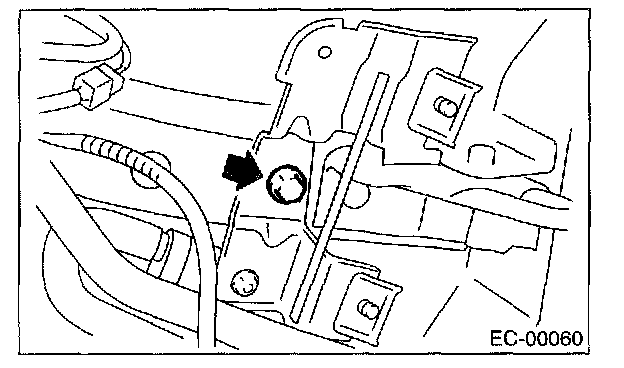

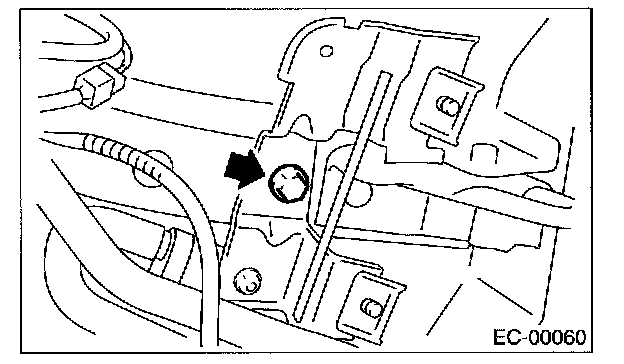

7. Remove the bolt which installs the drain valve and drain valve brackets on body, and remove them as a unit
8. Disconnect the evaporation hoses from drain valve.

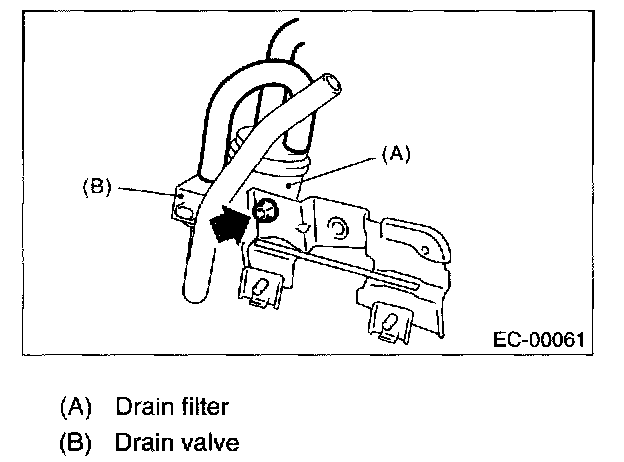

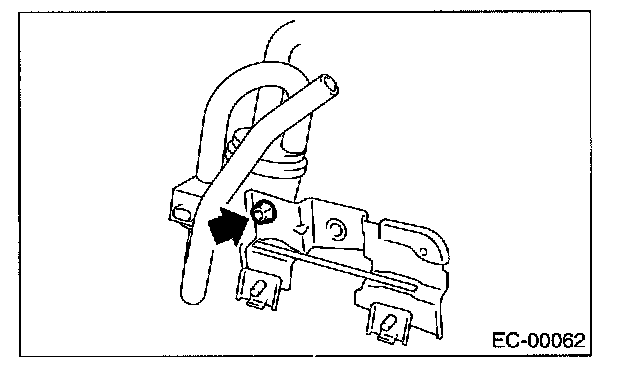

9. Remove the nuts, and then remove the drain valve.

INSTALLATION

Install in the reverse order of removal.




Tightening torque: 18 N.m (1.8 kgf.m, 13.0 ft.lb)




Tightening torque: 33 N.m (3.4 kgf.m, 25 ft.lb)
