Sunroof / Moonroof Switch: Service and Repair

REMOVAL

1. Disconnect ground cable from battery.
2. Remove the map light.

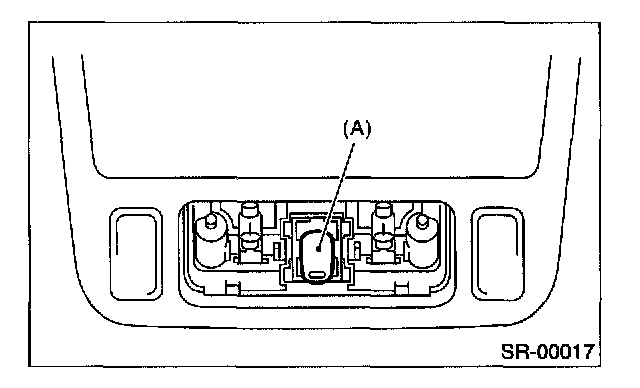

3. Disconnect harness connectors and remove sunroof switch (A).

INSTALLATION

Install in the reverse order of removal.
