Radio Body

Radio Body

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the front cover.

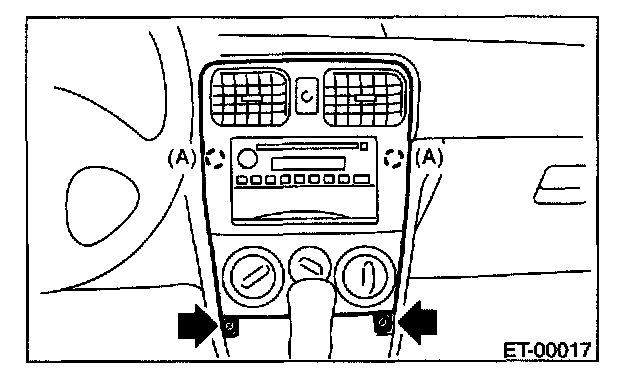

3. Loosen the screws and clips (A), and then remove the center panel.
4. Disconnect the connector.
5. Remove the fitting screws, and slightly pull out the radio from center console.
6. Disconnect the harness connectors and antenna feeder cord.

INSTALLATION

Install in the reverse order of removal.
