Antenna Amplifier: Service and Repair

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the rear quarter upper trim.
3. Disconnect the harness connector and terminal.

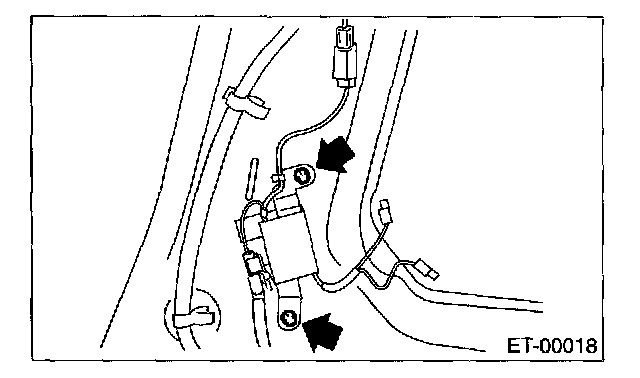

4. Remove the mounting screws and detach antenna amplifier.

INSTALLATION

Install in the reverse order of removal.
