Fuel Tank Cut Valve: Service and Repair

Fuel Tank Sensor Control Valve

REMOVAL

1. Remove the fuel tank.




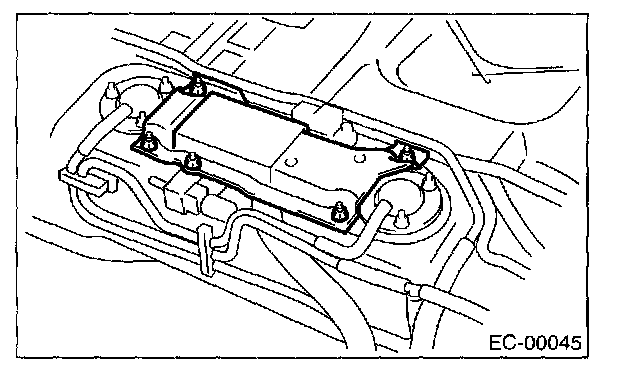

2. Remove the protector cover.

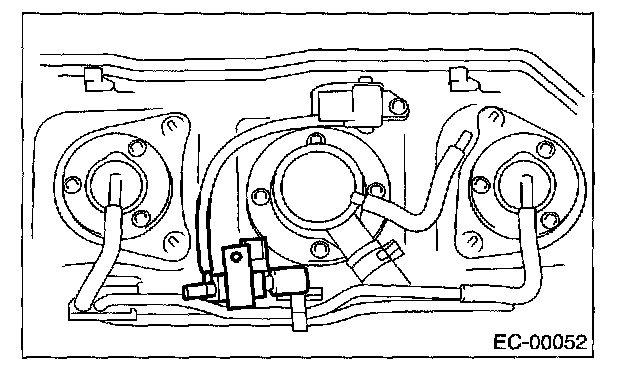

3. Disconnect the connector from fuel tank sensor control valve.




4. Disconnect the hose, and then remove the fuel tank sensor control valve.

INSTALLATION




Install in the reverse order of removal.

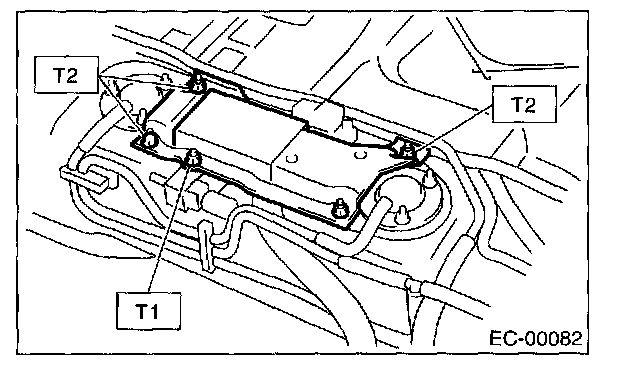

Tightening torque:
T1: 7.4 N.m (0.75 kgf.m, 5.4 ft.lb)
T2: 4.4 N.m (0.45 kgf.m, 3.3 ft.lb)
