Fuel Pressure Pulsation Damper: Service and Repair

Fuel Damper Valve

REMOVAL

1. Release the fuel pressure.

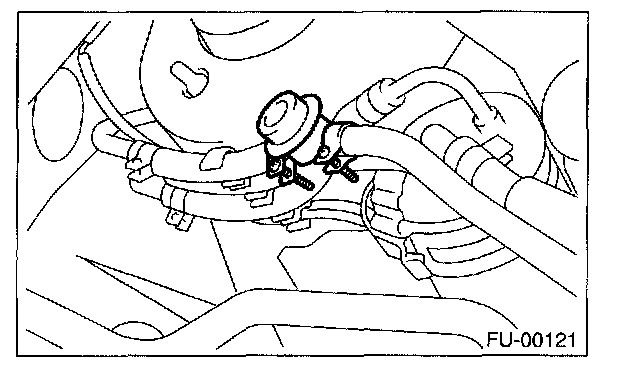

2. Remove the fuel damper valve from the fuel return line.

INSTALLATION

Install in the reverse order of removal.

Tightening torque: 1.25 N.m (0.13 kgf.m, 0.94 ft.lb)
