Forester F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Turbo Model
>>
E1-E61 & T3-T9
E1-E61 & T3-T9
ENGINE WIRING HARNESS AND TRANSMISSION CORD

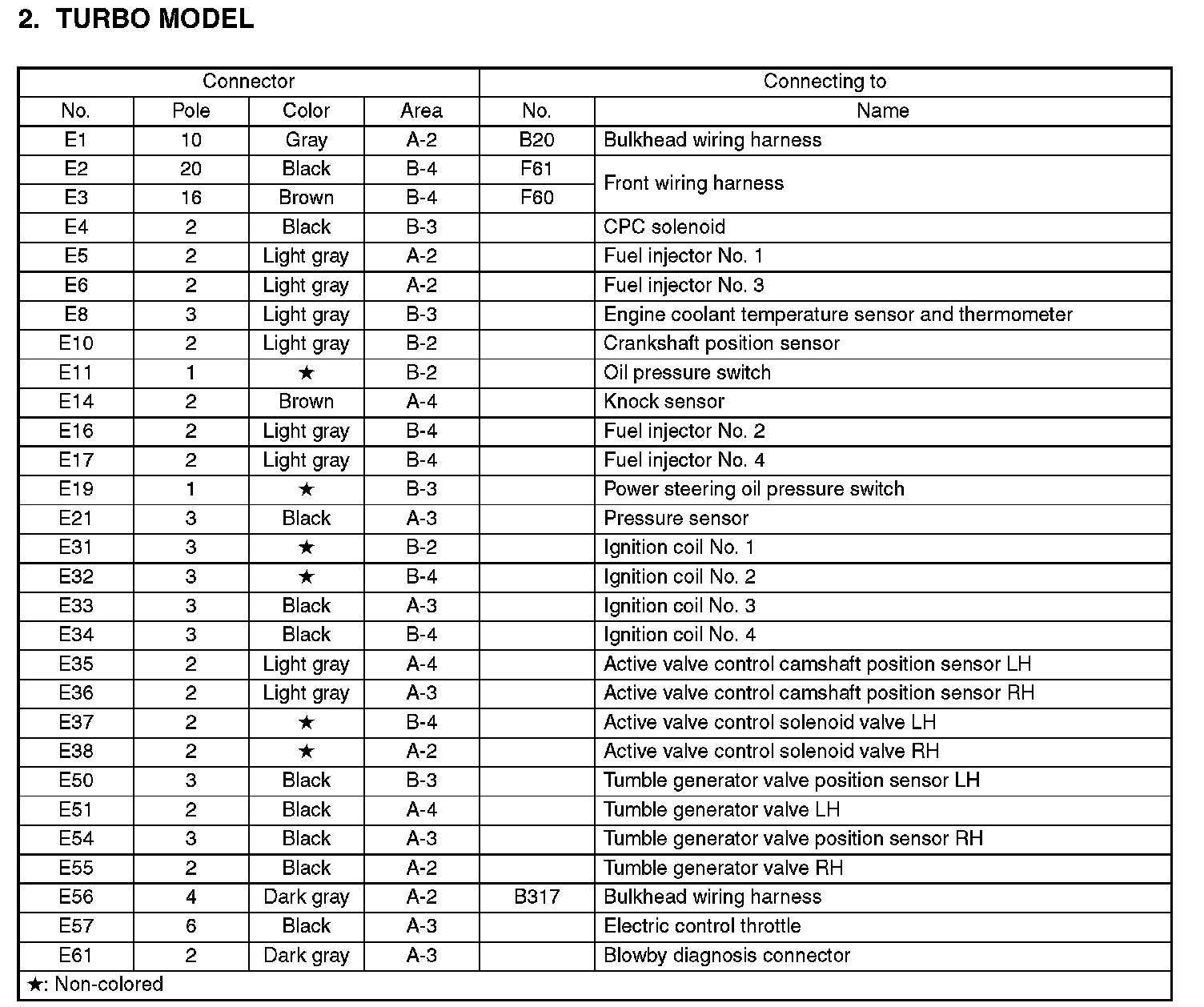

E1-E61:

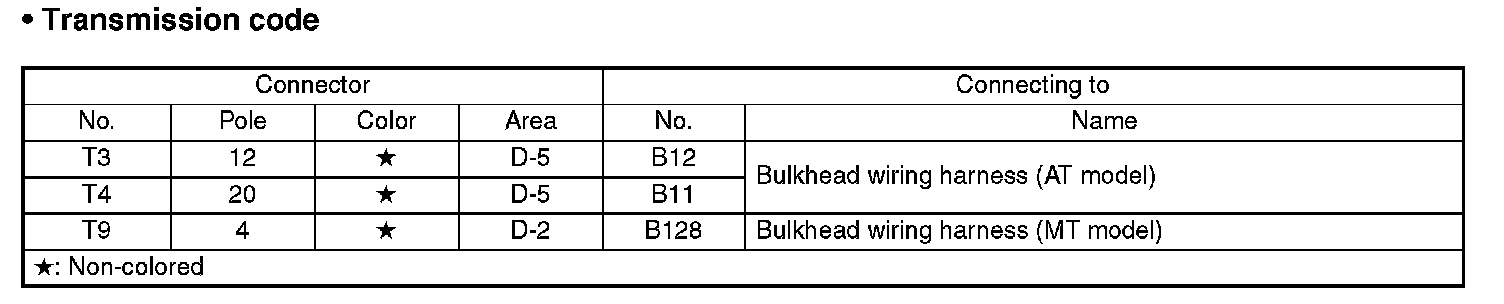

T3-T9:

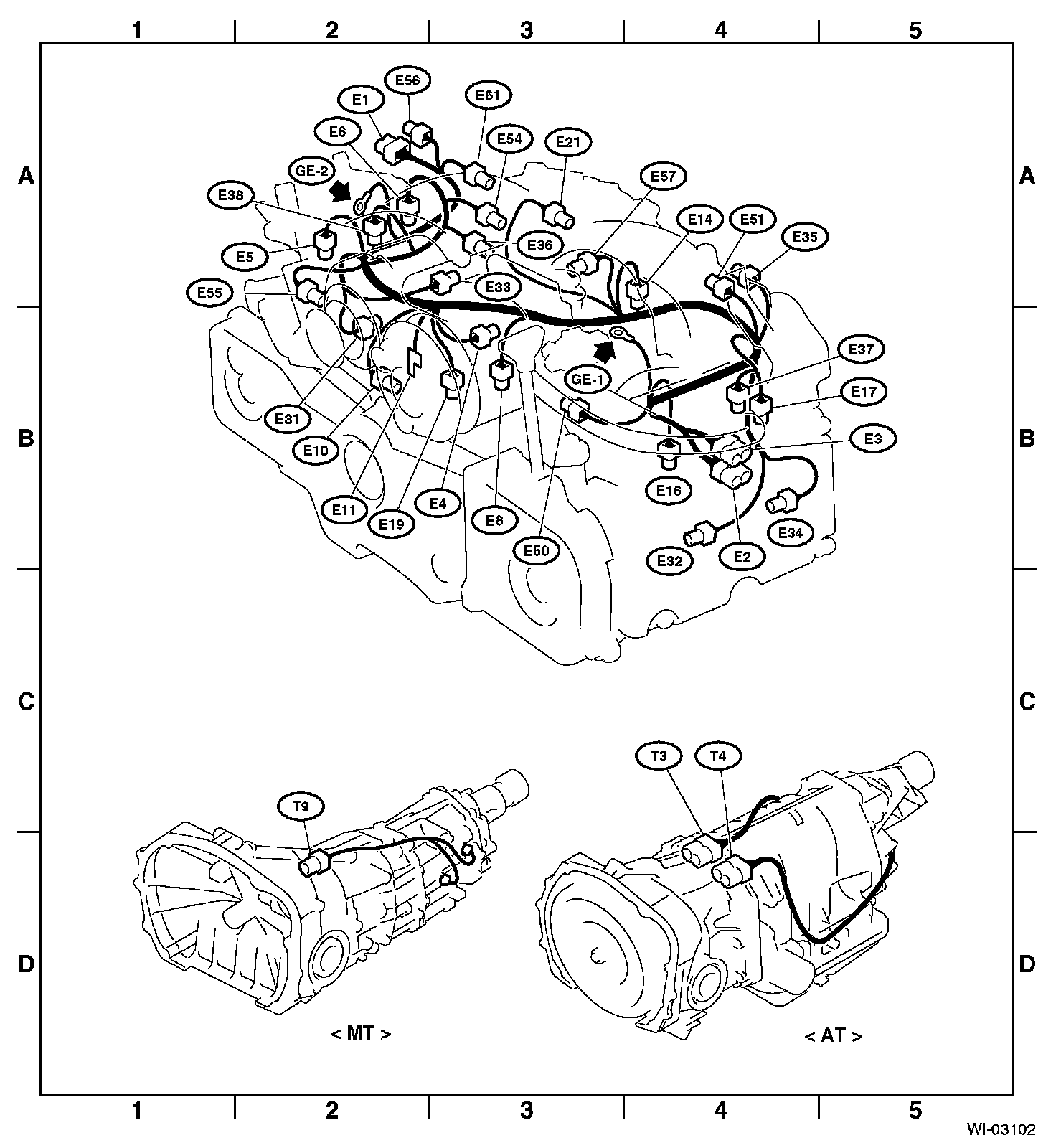

Area View:
