Coolant Reservoir: Service and Repair

Reservoir Tank
REMOVAL
1. Disconnect the overflow hose from the radiator filler neck position.

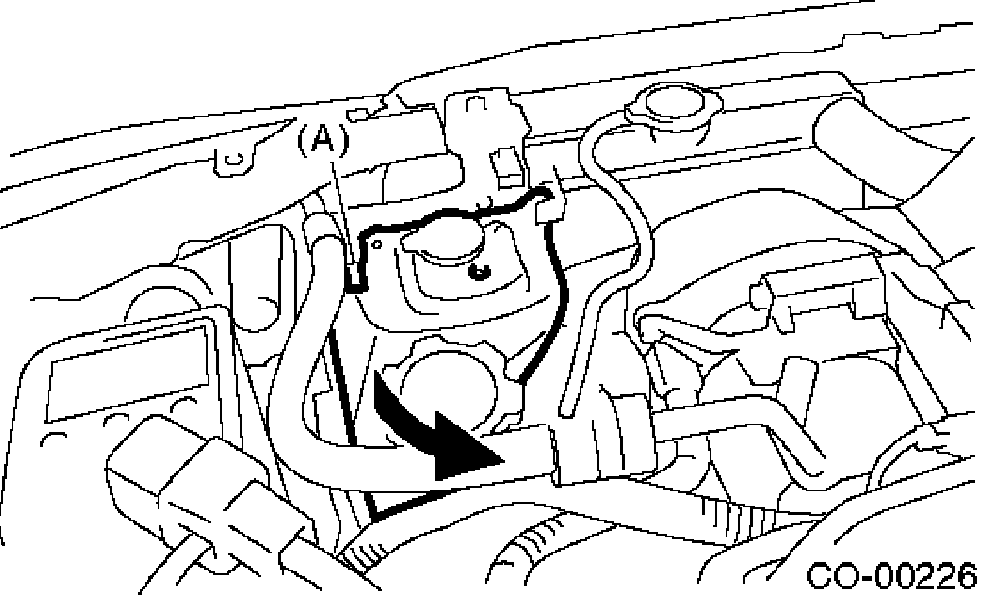

2. Pull out the reservoir tank to direction of arrow while pushing the pawl (A).

INSTALLATION
Install in the reverse order of removal.

NOTE: Refer to COMPONENT for tightening torque.

INSPECTION
Make sure the engine coolant level is between full and low.
