ABS Warning Light Does Not Come on

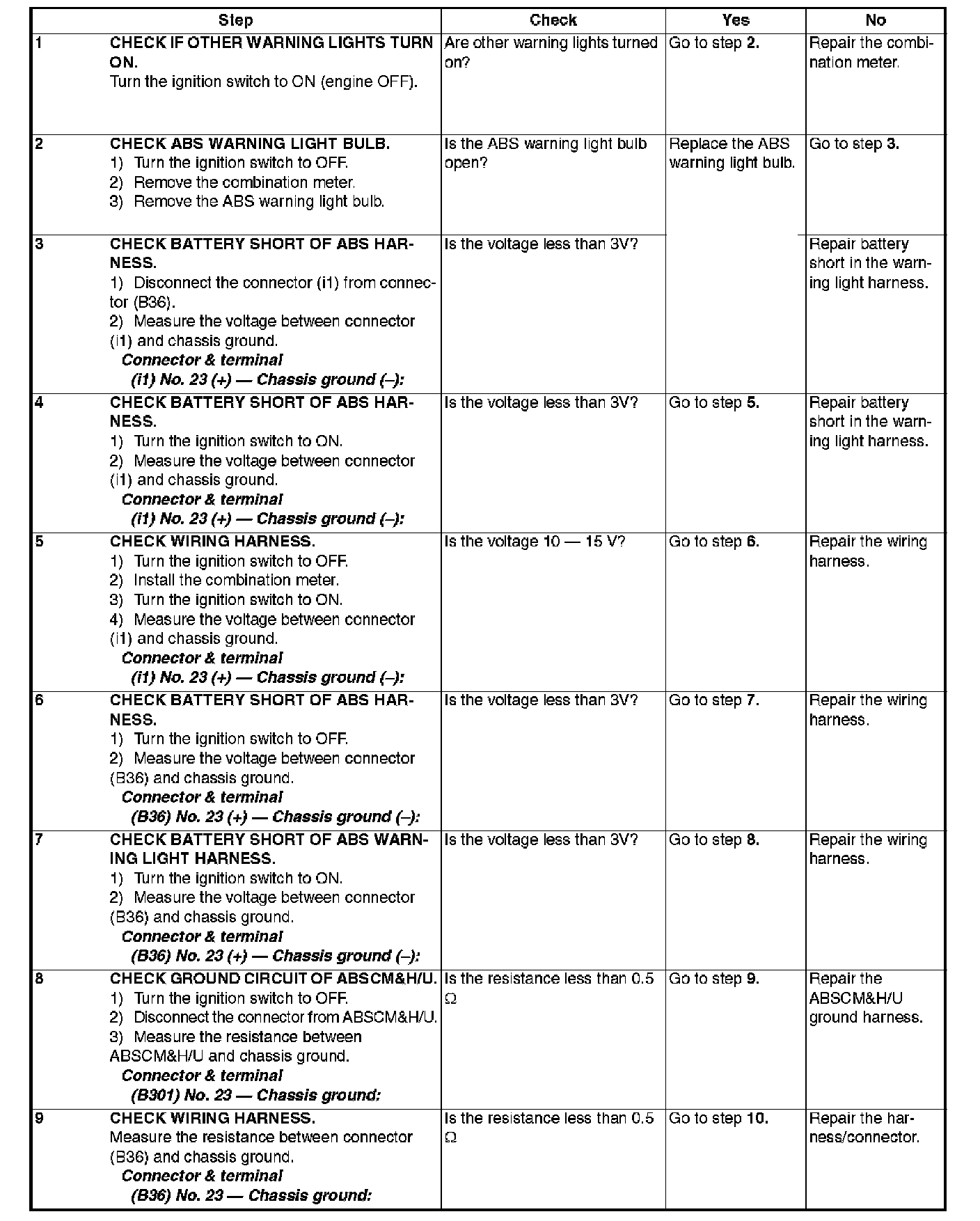

Steps 1-9:

Step 10:

ABS WARNING LIGHT DOES NOT COME ON.

DIAGNOSIS:
ABS warning light circuit is open or shorted.

TROUBLE SYMPTOM:
When the ignition switch is turned to ON (engine OFF), ABS warning light does not come on.

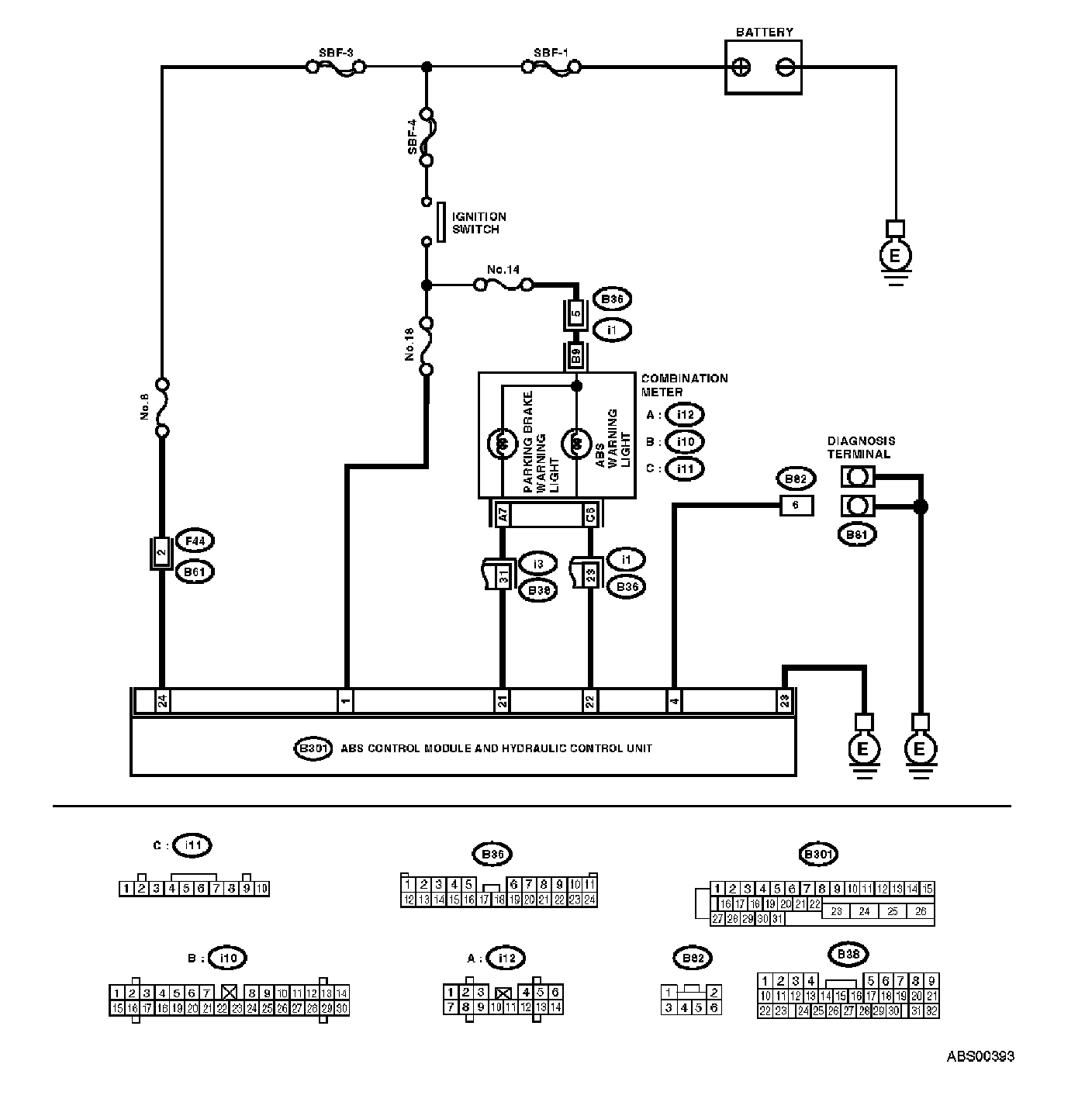

WIRING DIAGRAM
