LUGGAGE FLOOR MAT
Luggage Floor Mat:
REMOVAL
1.

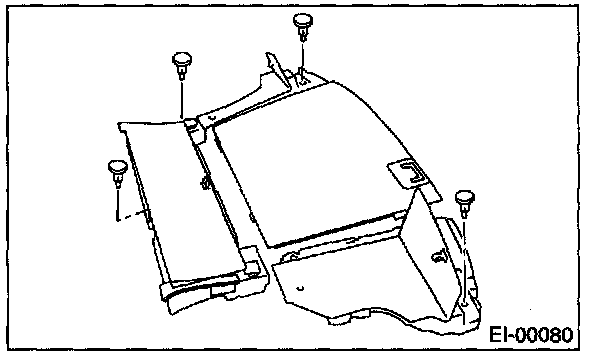

Remove the back mat of rear seat backrest.
2.

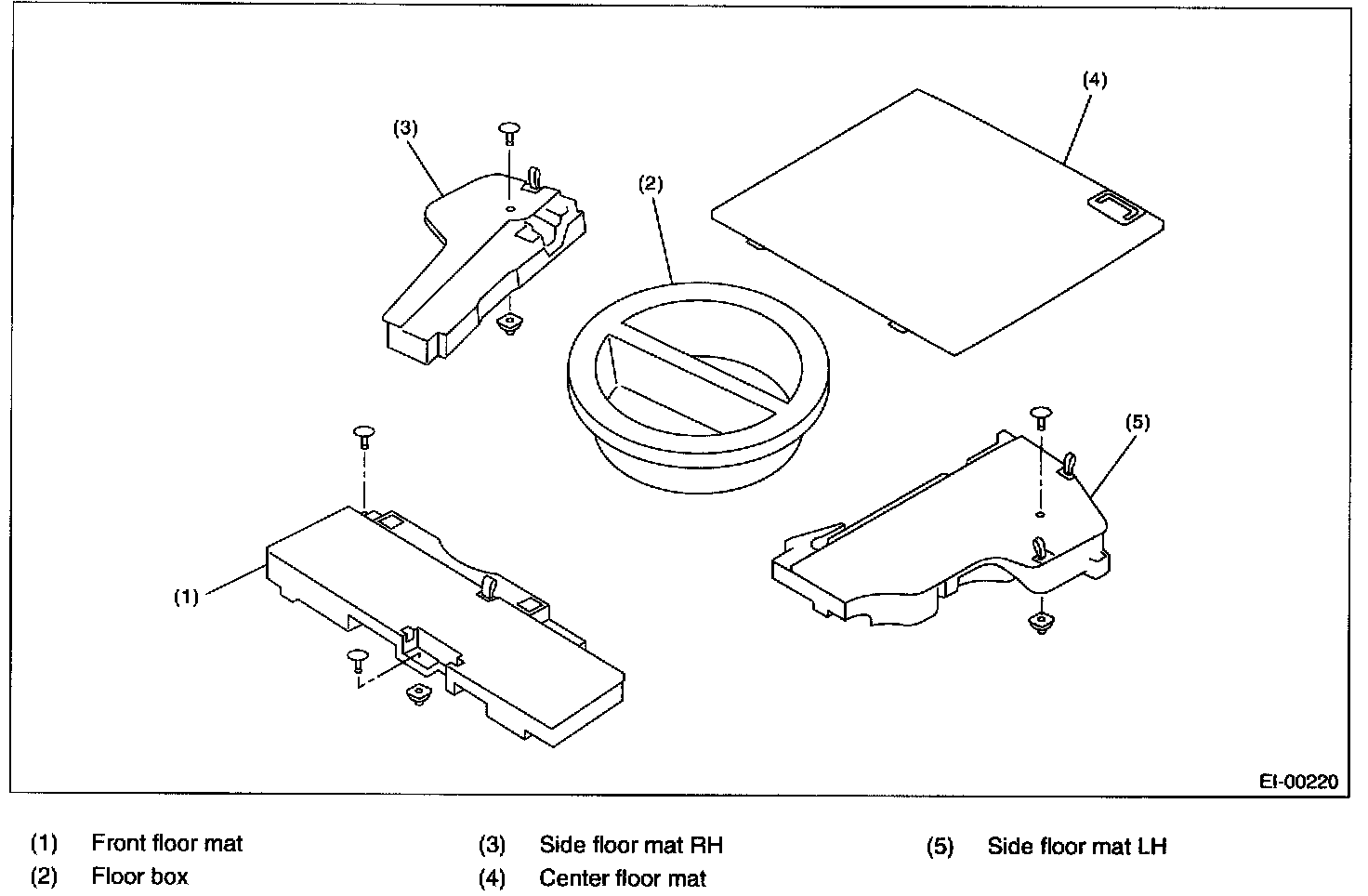

Remove the clips, then detach the rear floor mats and boxes.
INSTALLATION
Install in the reverse order of removal.
