P0604

DTC P0604 - INTERNAL CONTROL MODULE RANDOM ACCESS MEMORY (RAM) ERROR

OUTLINE OF DIAGNOSIS
Zero clear all the normal RAM area on initial routine, and judge NG when the sum of all cleared RAMs is any value except zero.

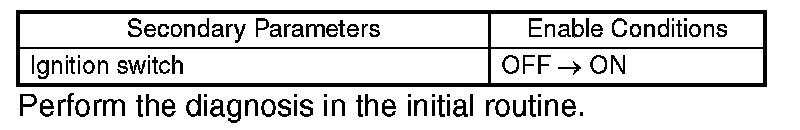

ENABLE CONDITION

GENERAL DRIVING CYCLE
Perform the diagnosis immediately after IG key SW is turned ON.

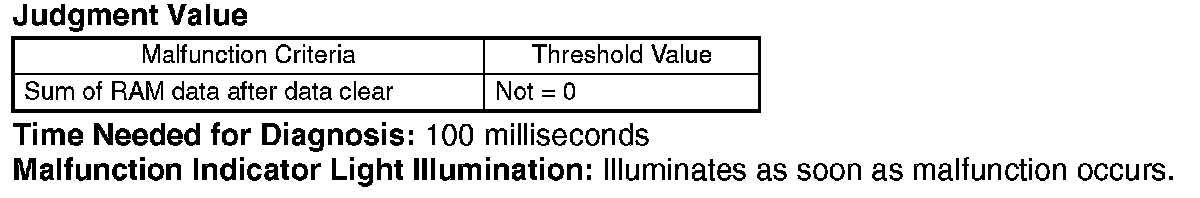

DIAGNOSTIC METHOD




Judge NG when the malfunction criteria are completed.Judge OK and clear NG when the malfunction criteria are not completed.

DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When "Clear Memory" was performed

MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When "Clear Memory" was performed

FAIL SAFE
None

ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
