Air Intake Duct

REMOVAL

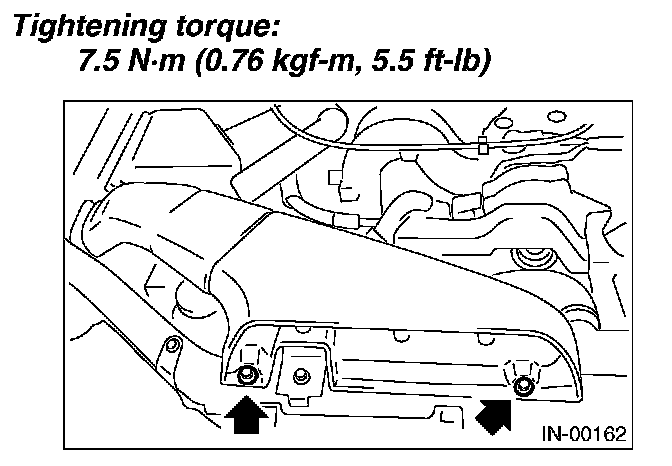

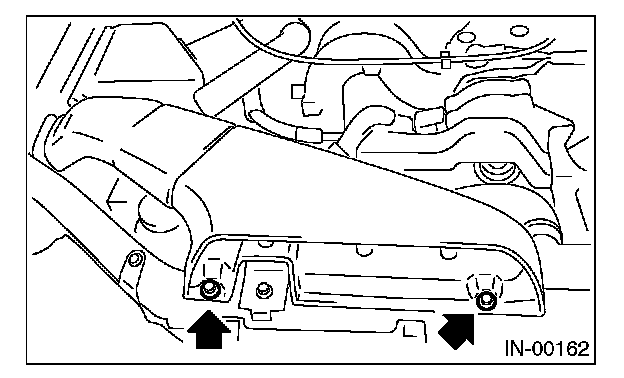

Remove the bolts which install the air intake duct on front side of body.

INSTALLATION




Install in the reverse order of removal.
