Fuel Pressure Pulsation Damper: Service and Repair

REMOVAL

1. Release the fuel pressure.

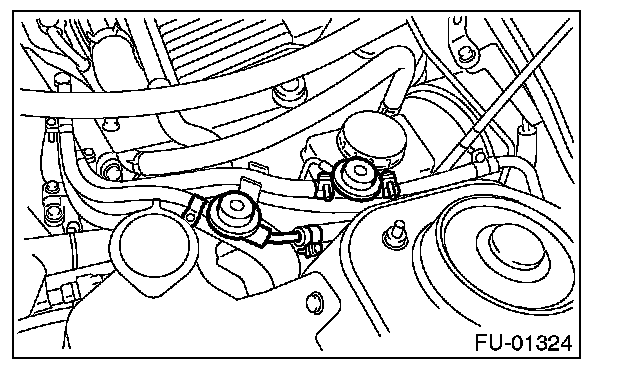

2. Remove the fuel damper valve from the fuel delivery line and return line.

INSTALLATION
Install in the reverse order of removal.
Tightening torque: 1.25 N.m (0.13 kgf.m, 0.94 ft.lb)
