Canister Purge Solenoid: Service and Repair

Purge Control Solenoid Valve

REMOVAL

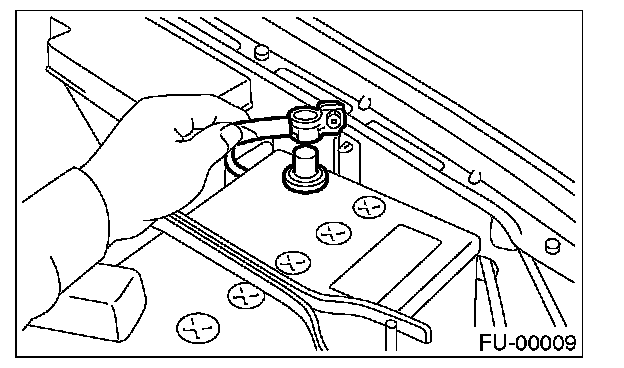

1. Disconnect ground cable from battery.

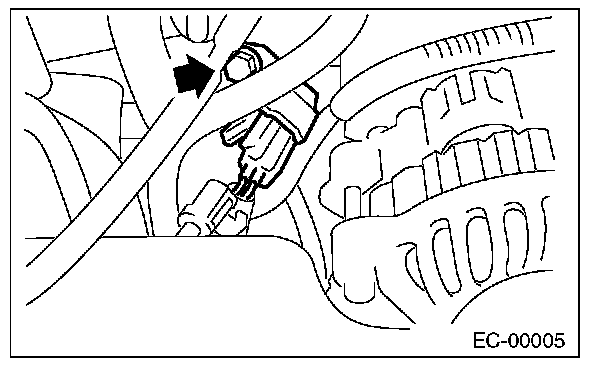

2. Disconnect the connector and hoses from purge control solenoid valve.




3. Remove the bolt which installs the purge control solenoid valve onto intake manifold.

INSTALLATION

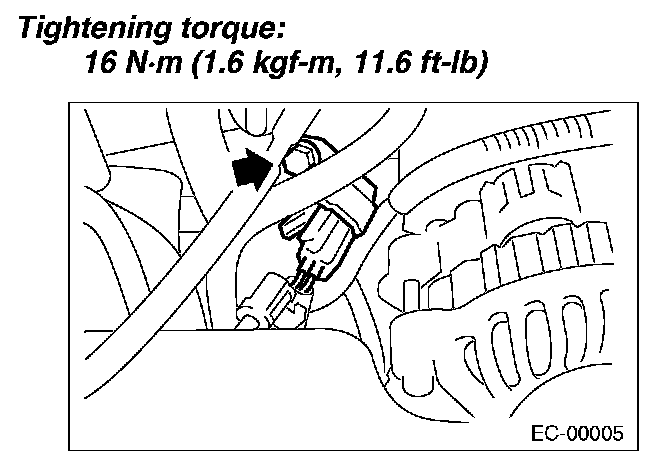

Install in the reverse order of removal.

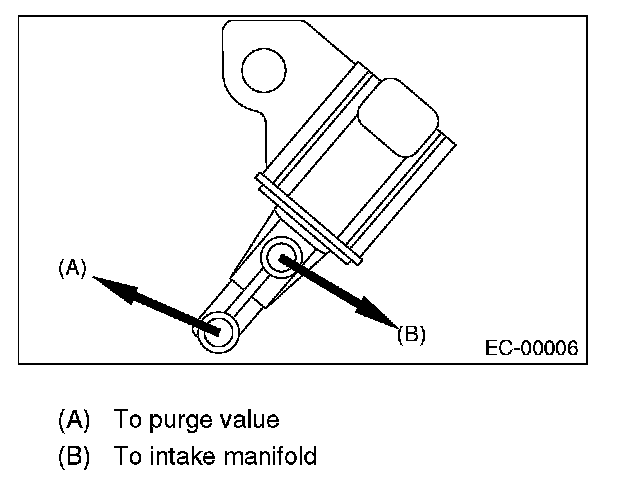

NOTE: Connect the evaporation hoses as shown in the figure.
