Home >> Subaru >> 2002 >> Outback VDC Sedan AWD F6-3.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft

Axle Shaft

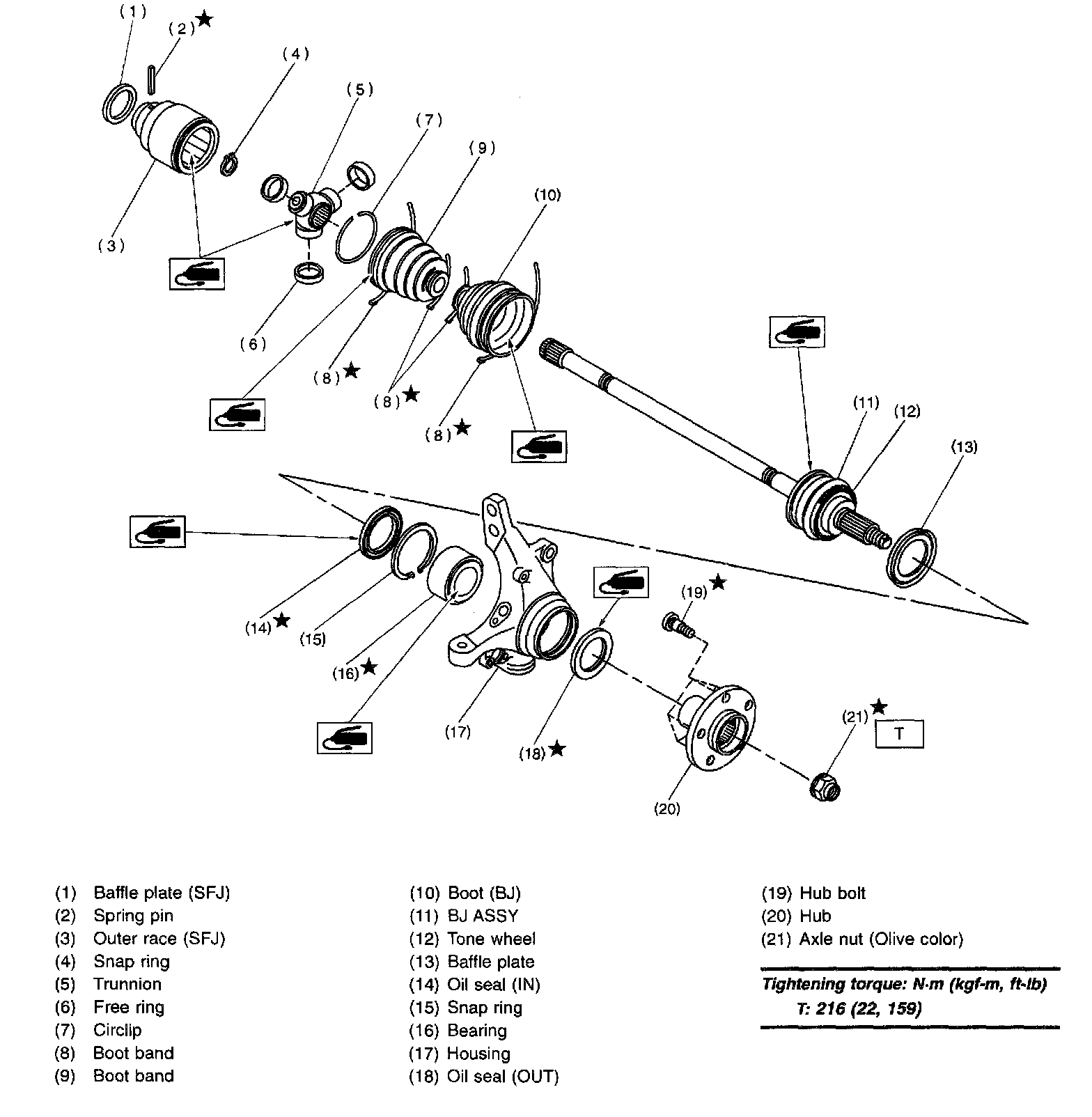

FRONT AXLE

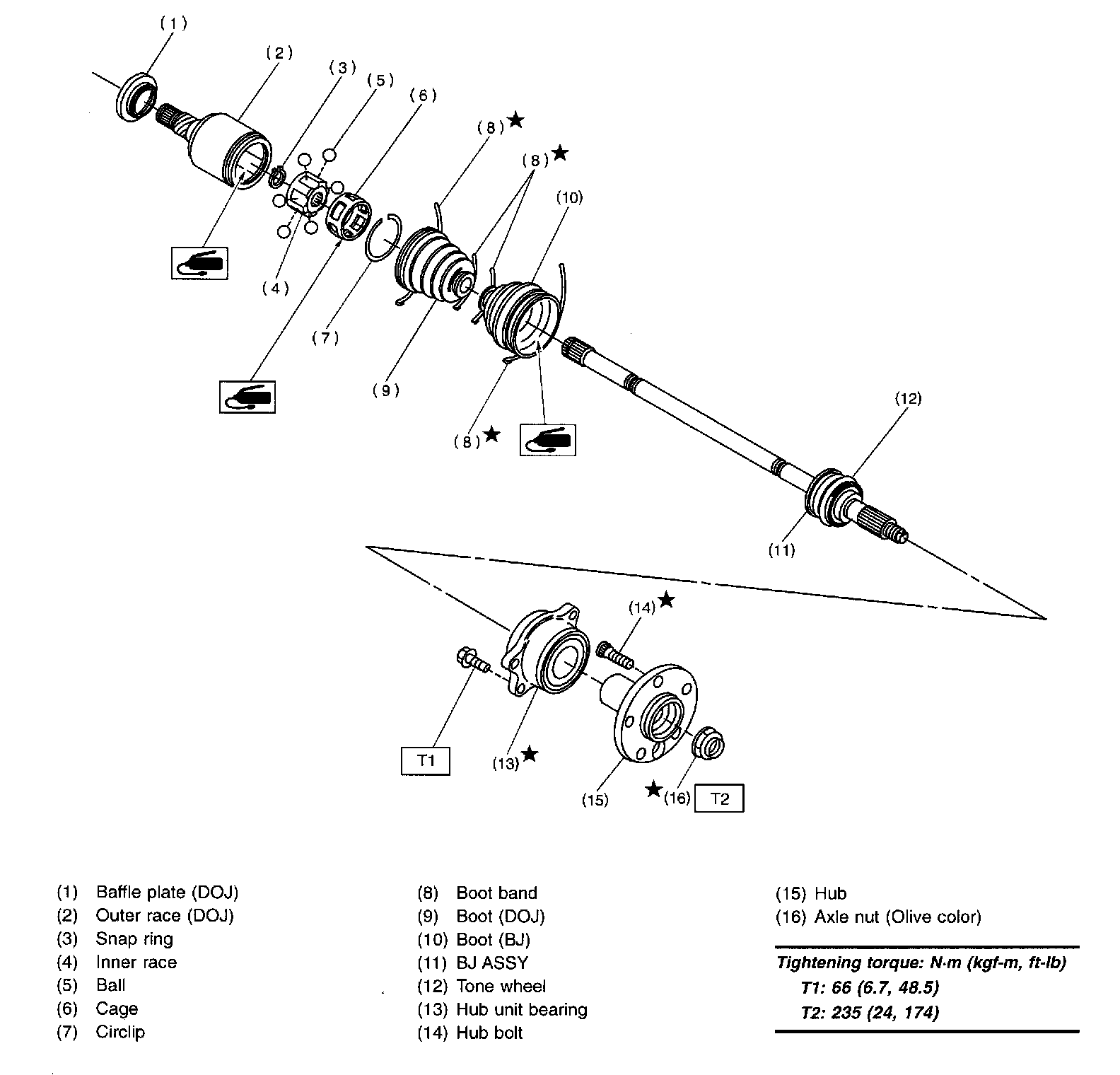

REAR AXLE
