Home
>>
Subaru
>>
2001
>>
Forester L F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
System Diagram
System Diagram

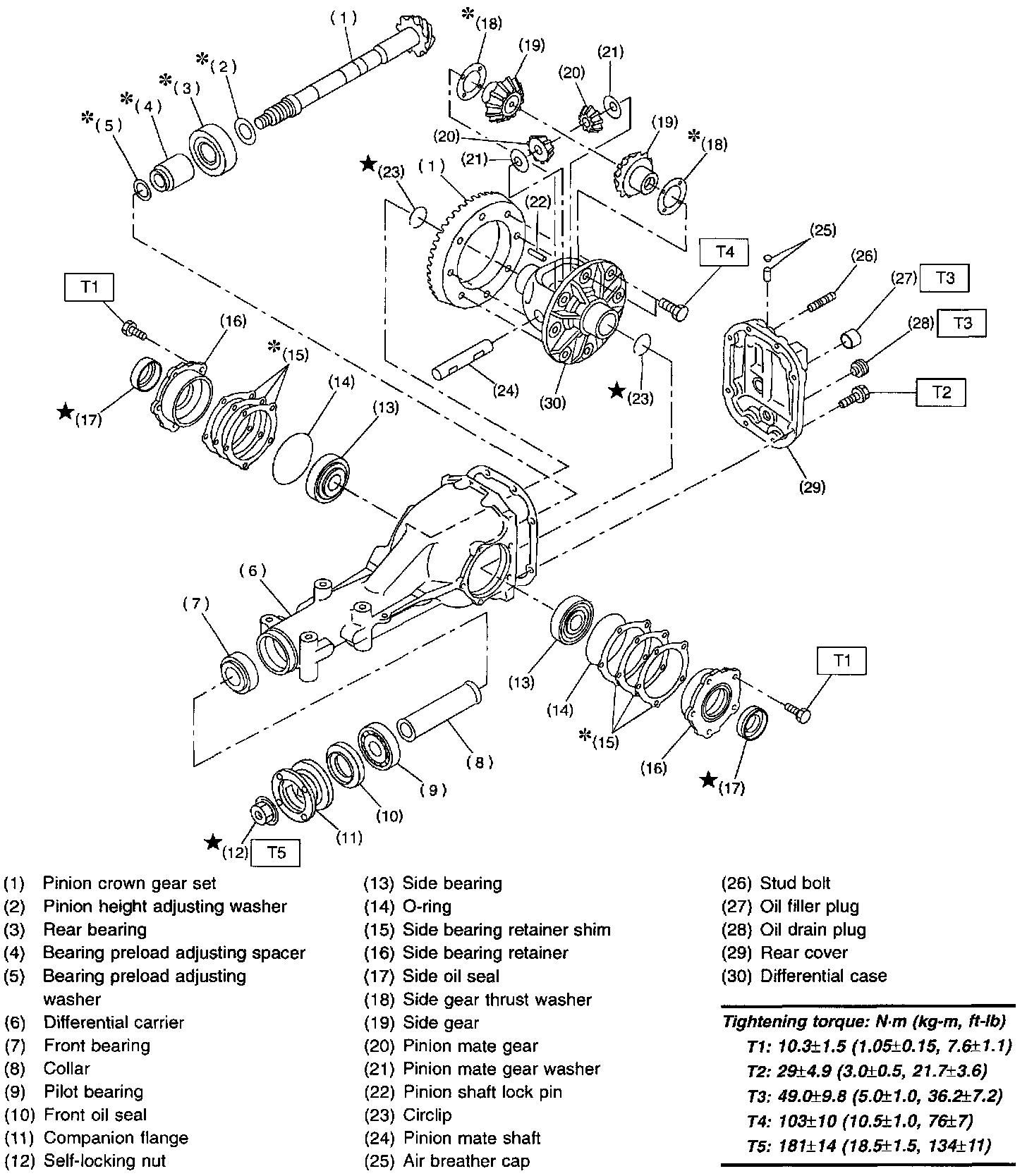

A: WITHOUT LSD

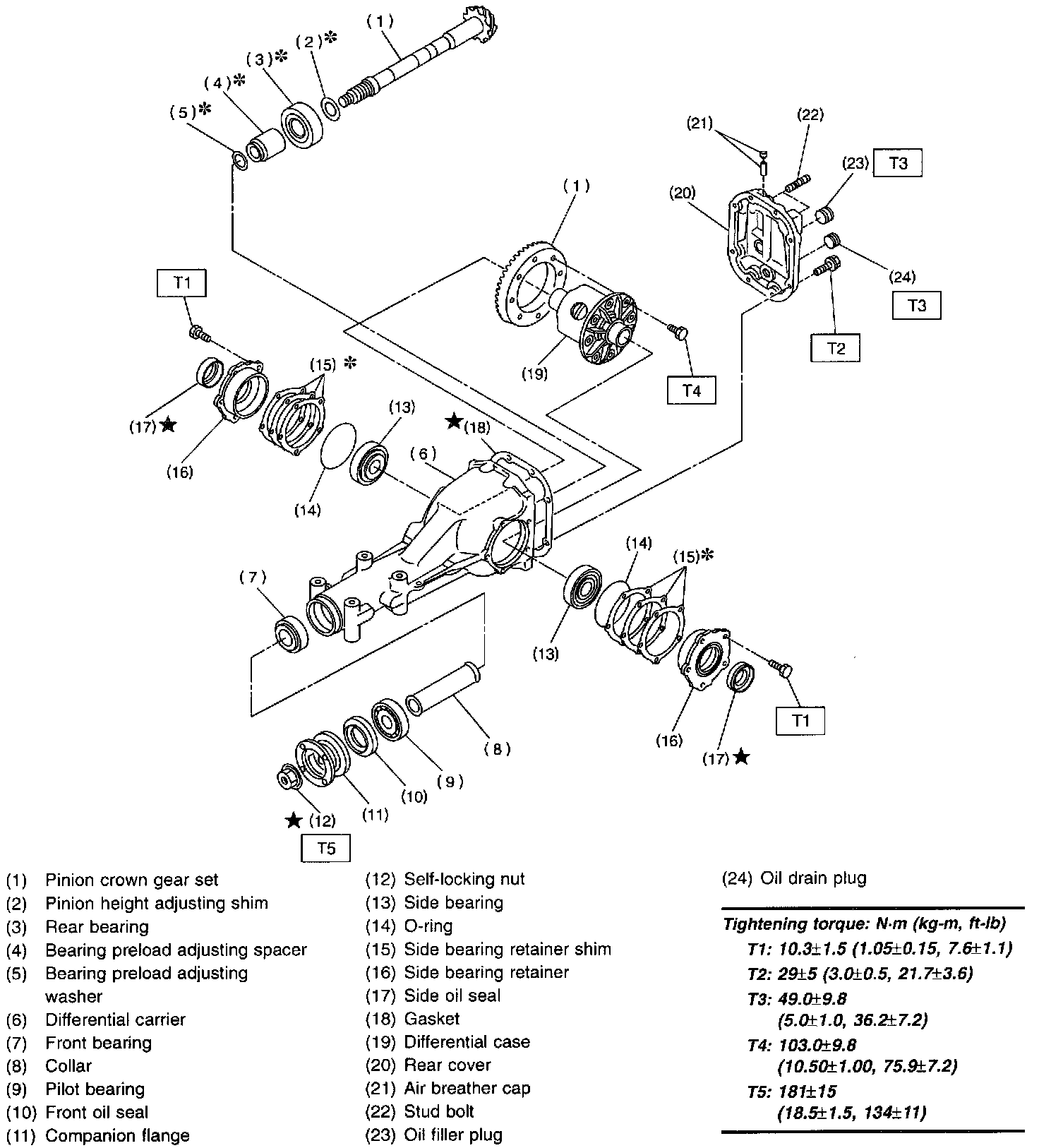

B: WITH LSD
