Home
>>
Subaru
>>
2000
>>
Legacy L Sedan AWD F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
AT Model
AT Model

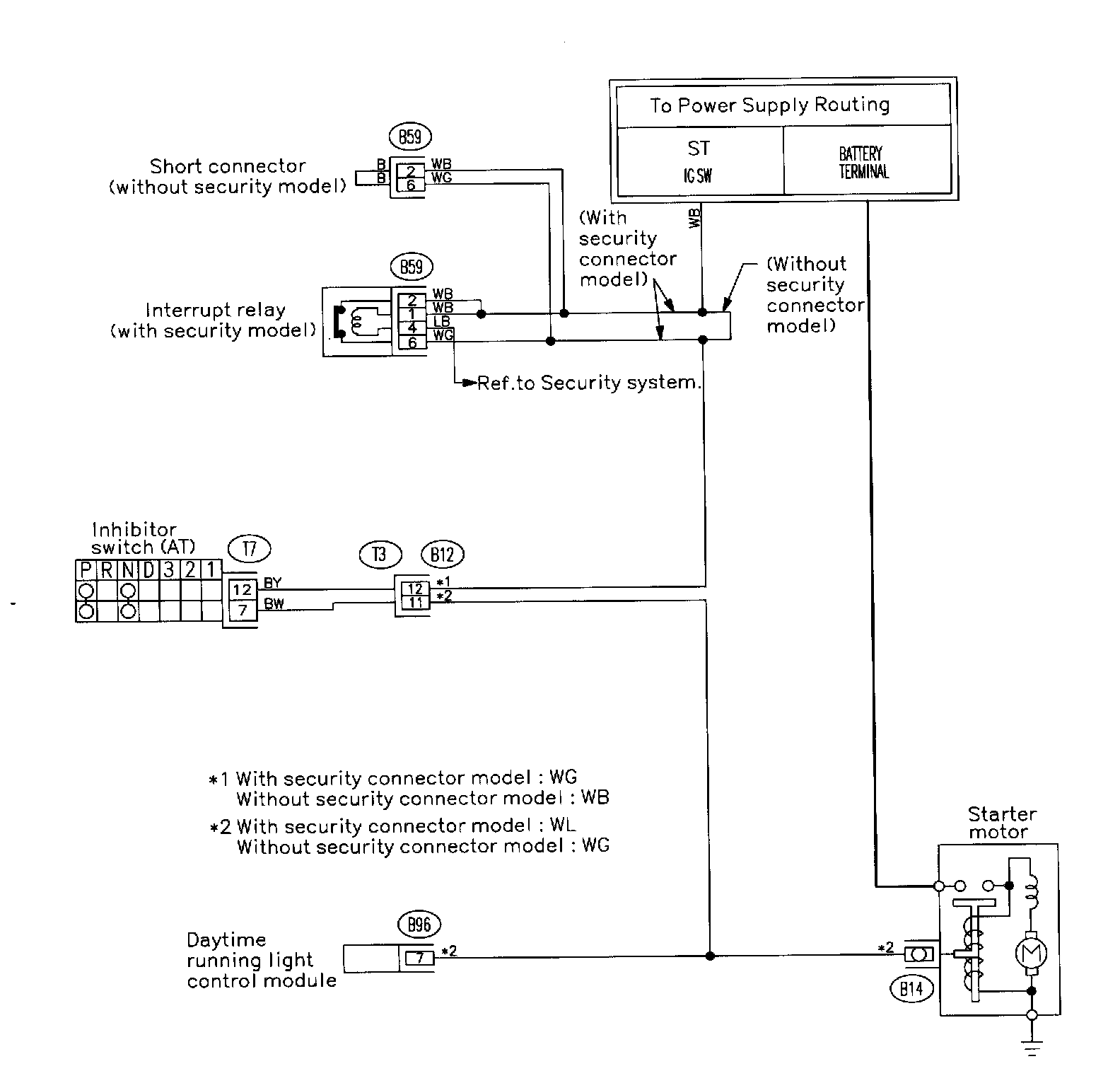

Circuit Diagram
Circuit Connectors
