Home
>>
Subaru
>>
2000
>>
Forester S F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

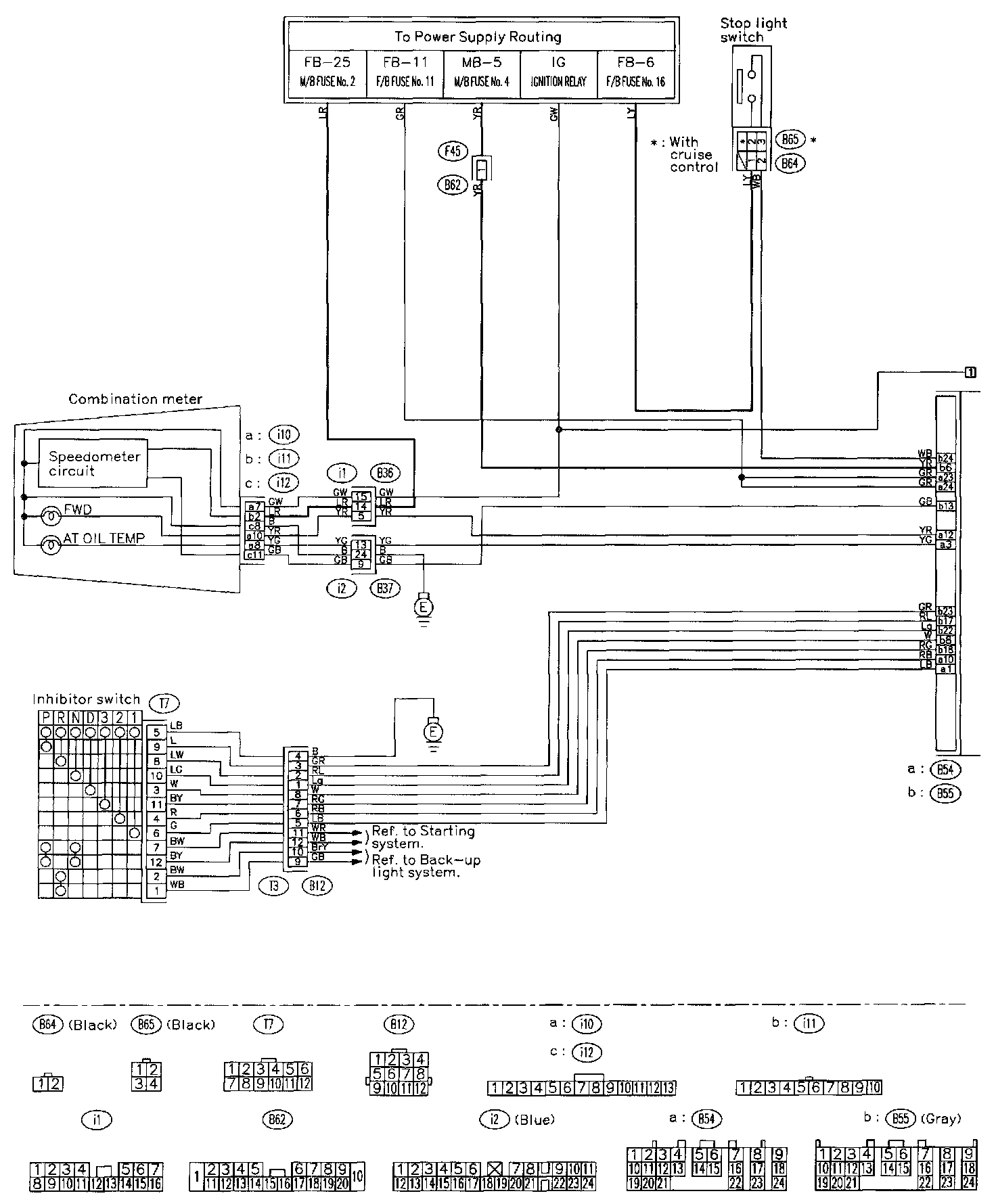

Circuit 1:

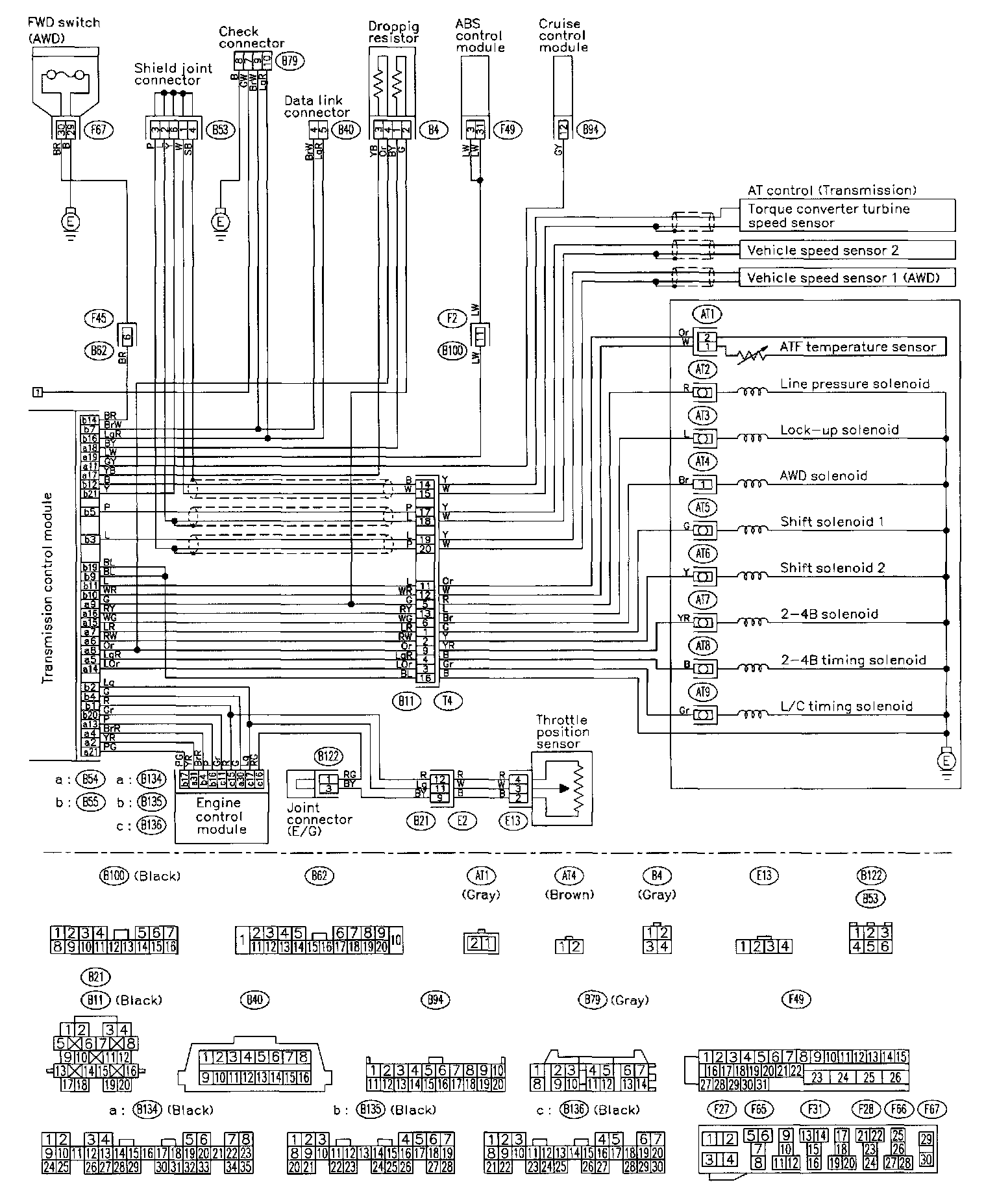

Circuit 2:
