Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters
5.

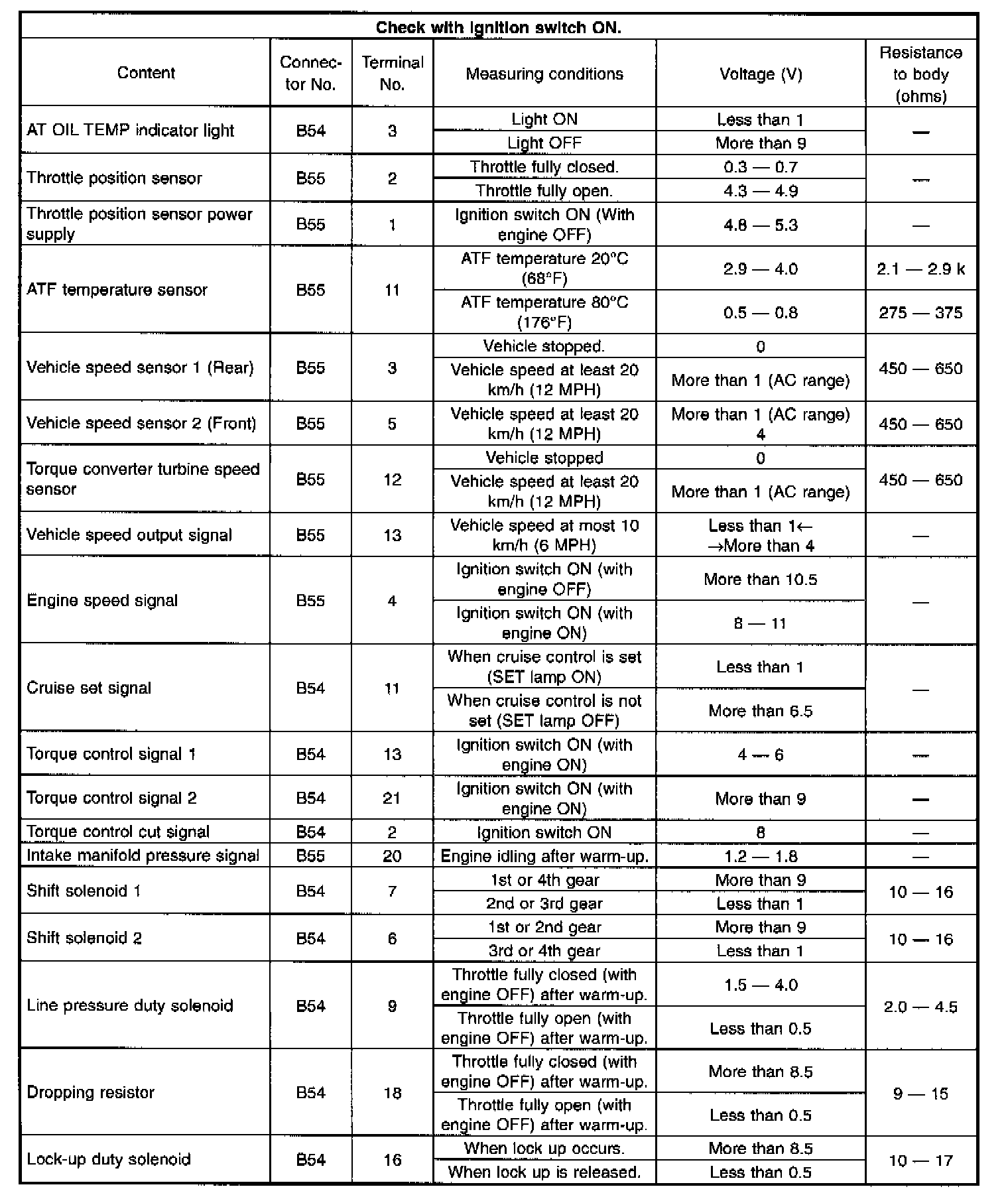

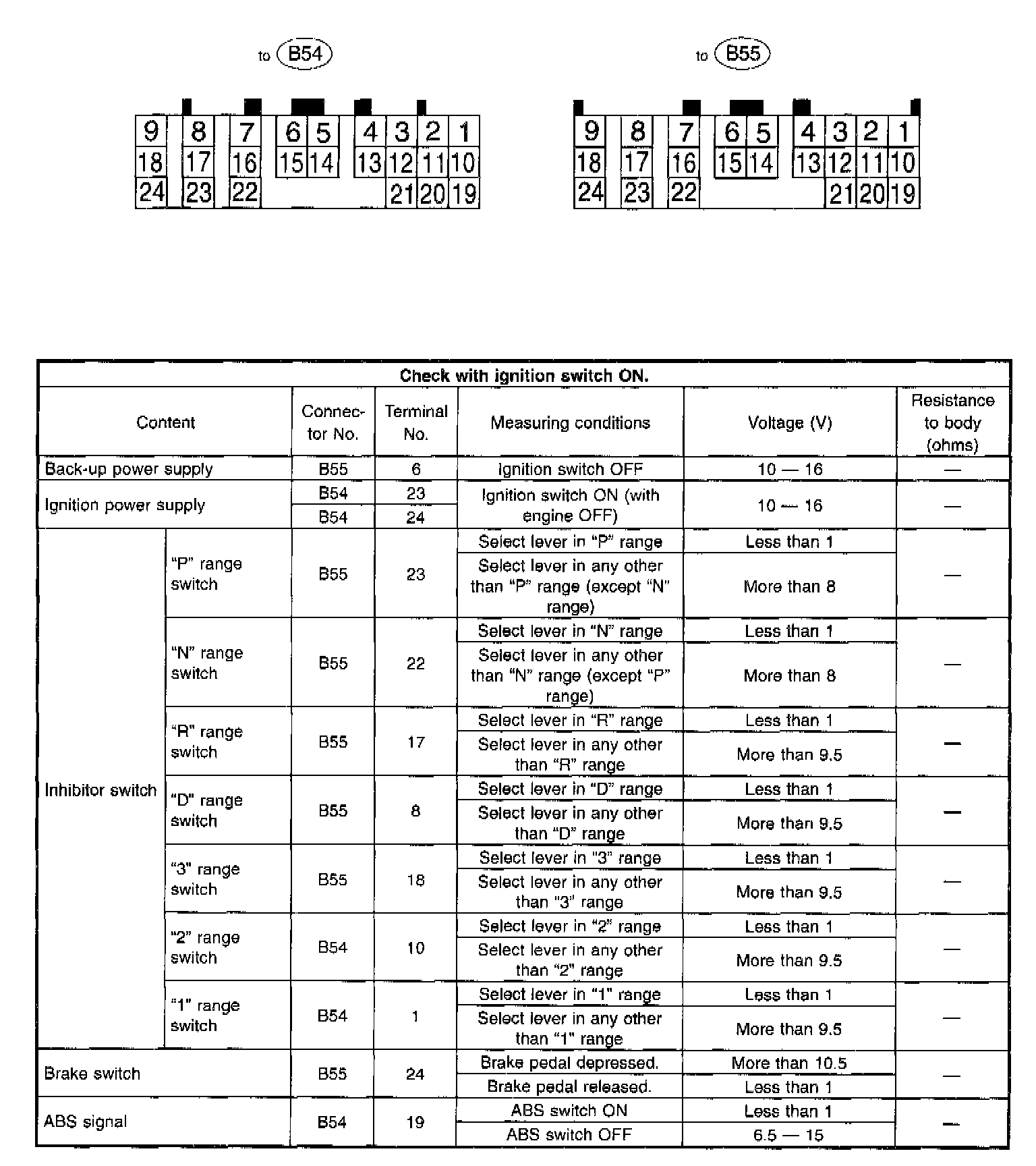

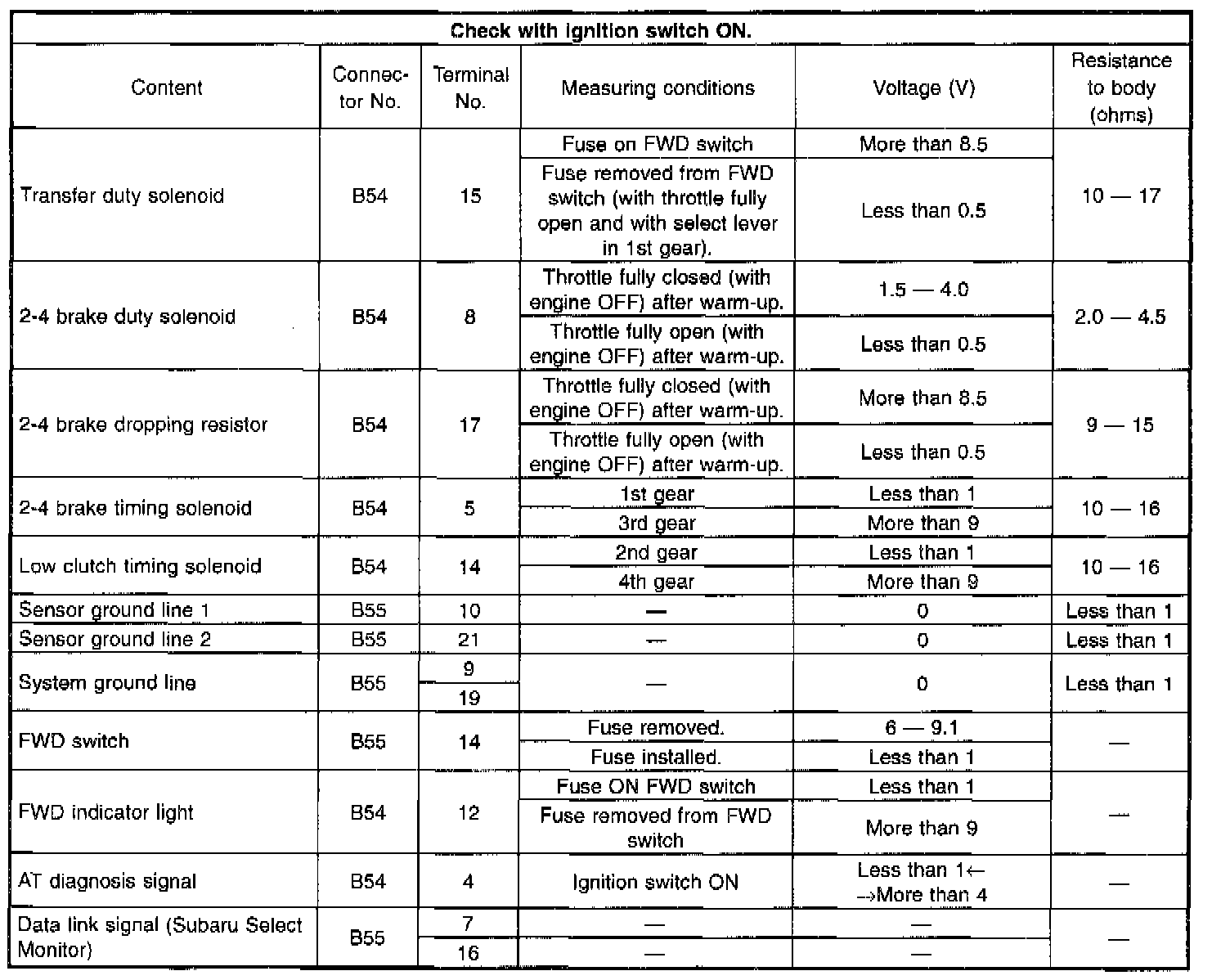

Transmission Control Module (TCM) I/O Signal
