Home
>>
Subaru
>>
2000
>>
Forester L F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

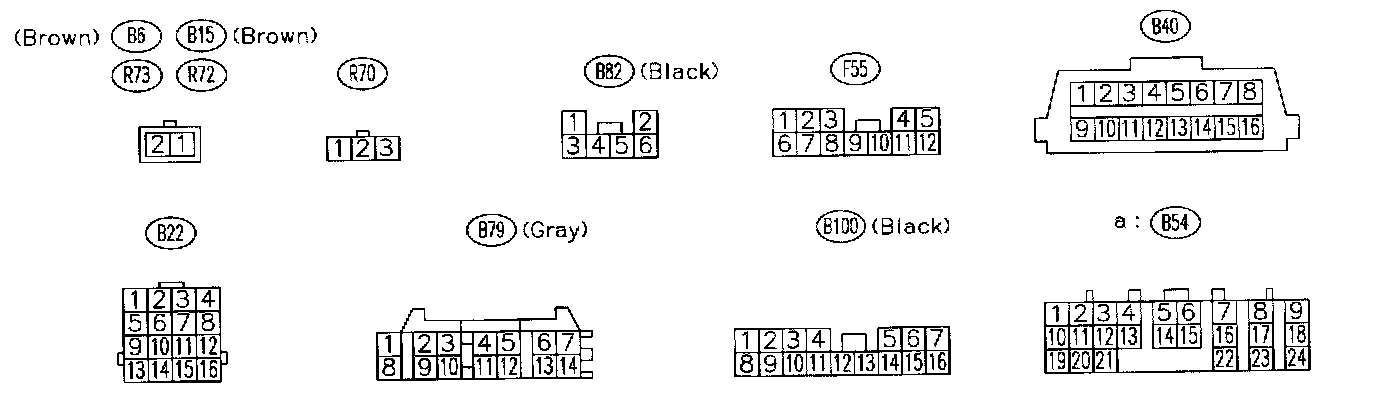

Connector Views Part 1:

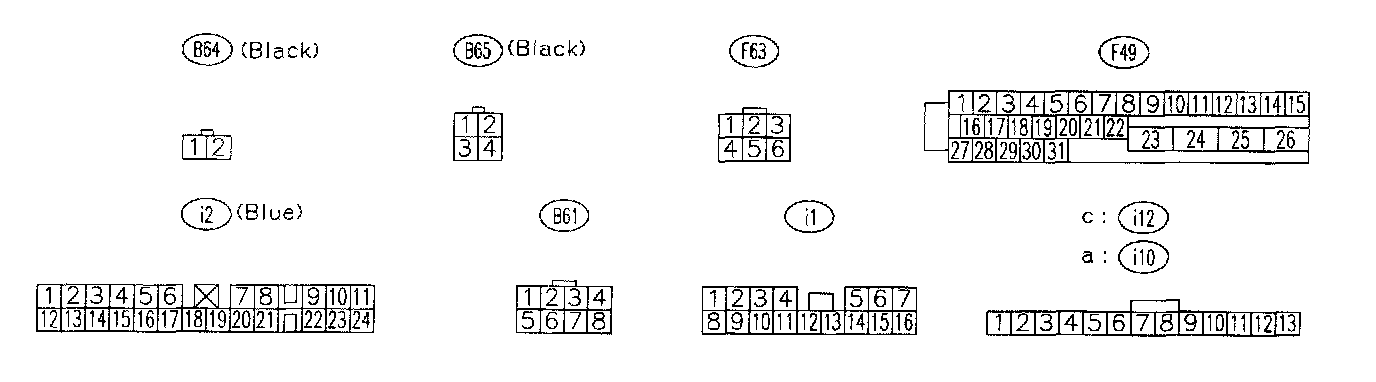

Connector Views Part 2:
