Key Reminder Switch
Key Reminder Switch

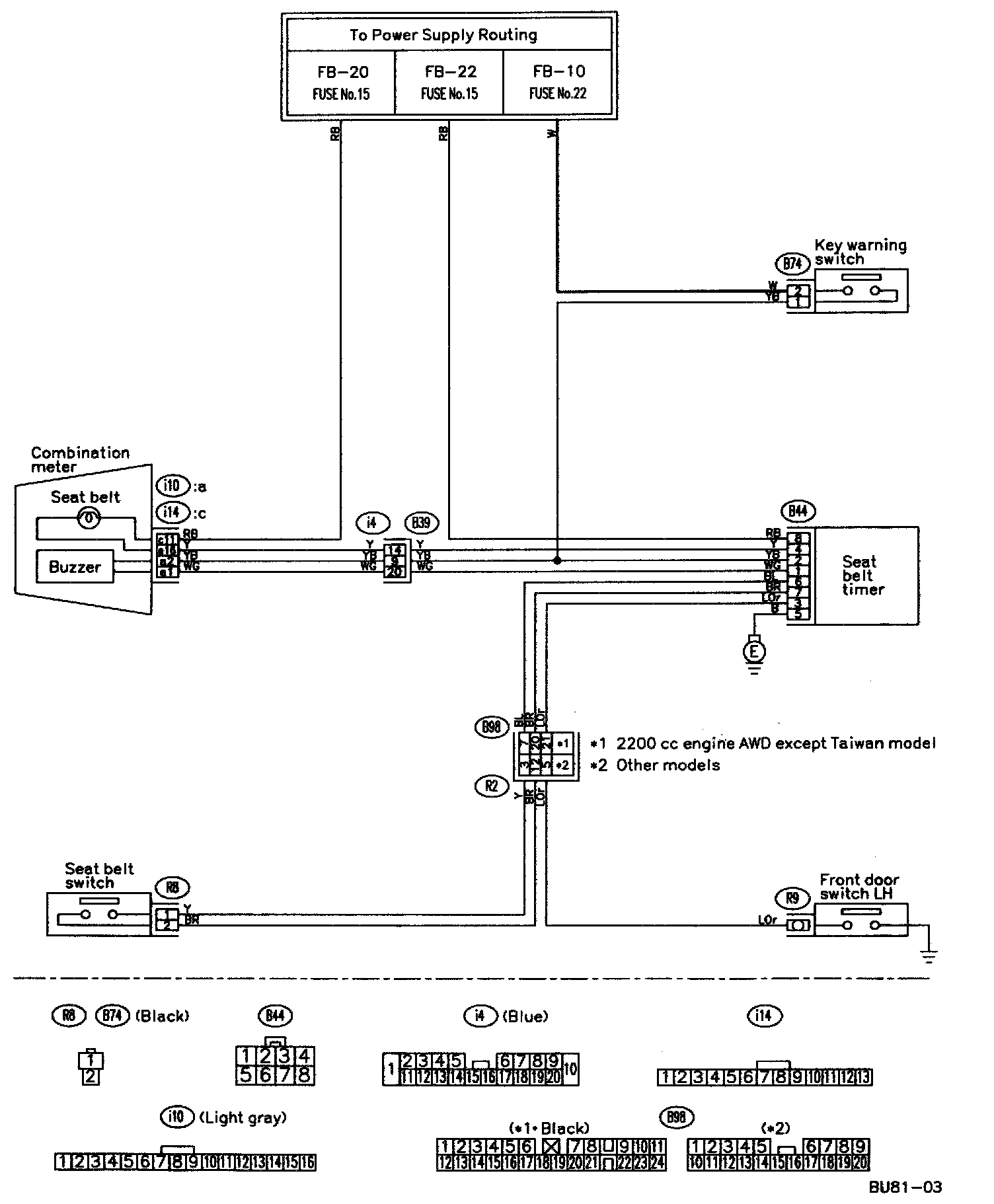

Seat Belt Warning And Key Warning System (LHD Model) Circuit:

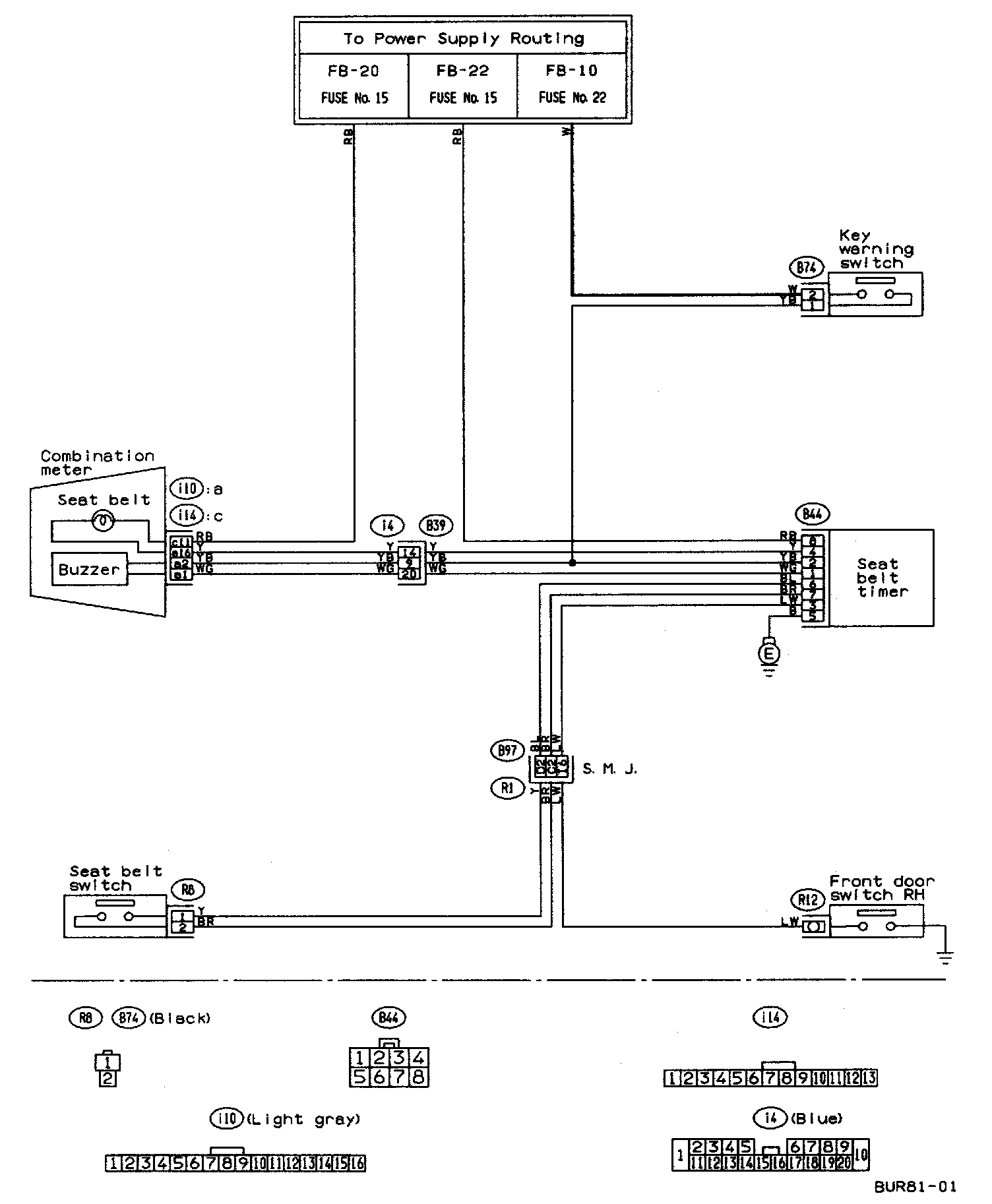

Seat Belt Warning And Key Warning System (RHD Model) Circuit:
