Keyless Entry
Keyless Entry

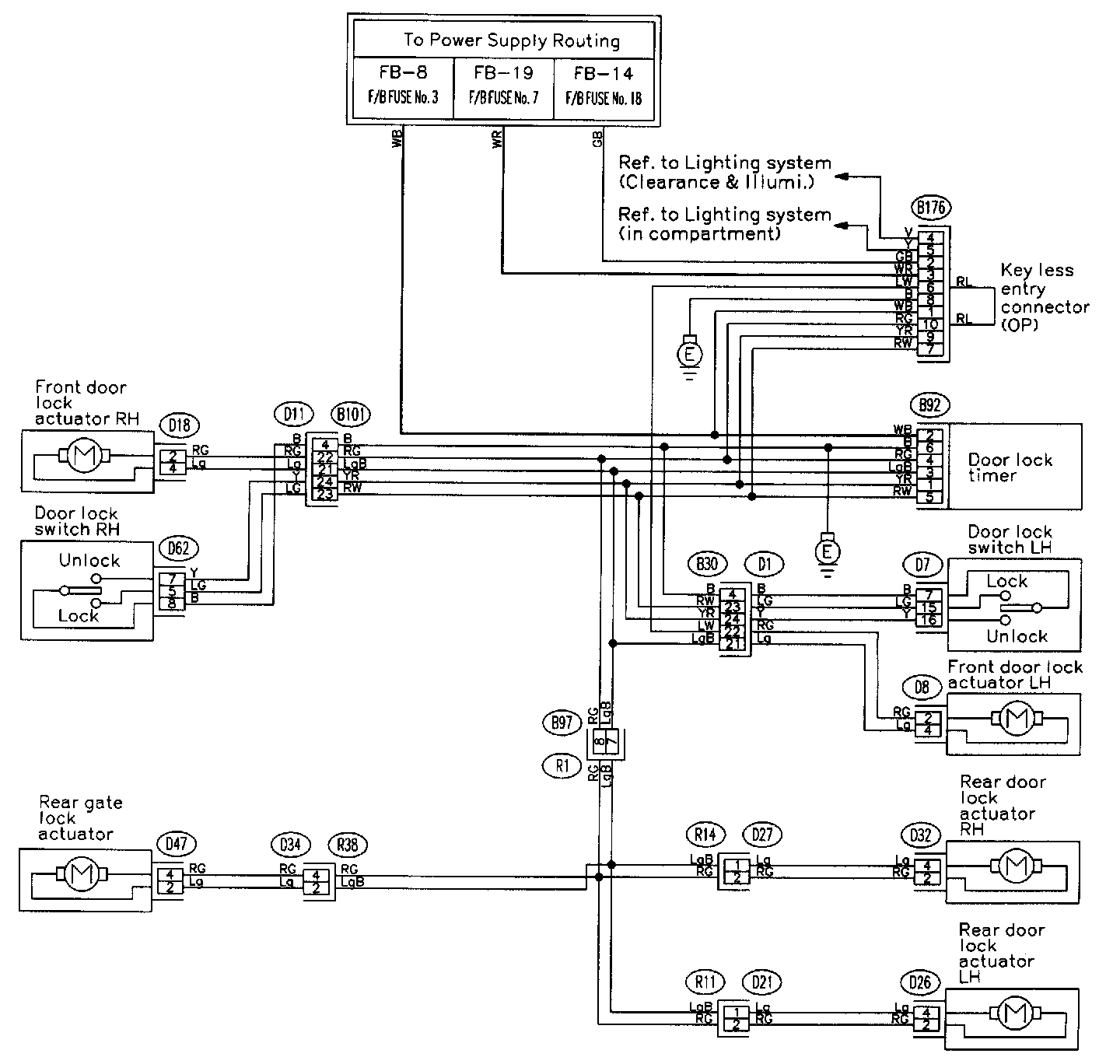

DOOR LOCK WIRING DIAGRAM
CONNECTORS

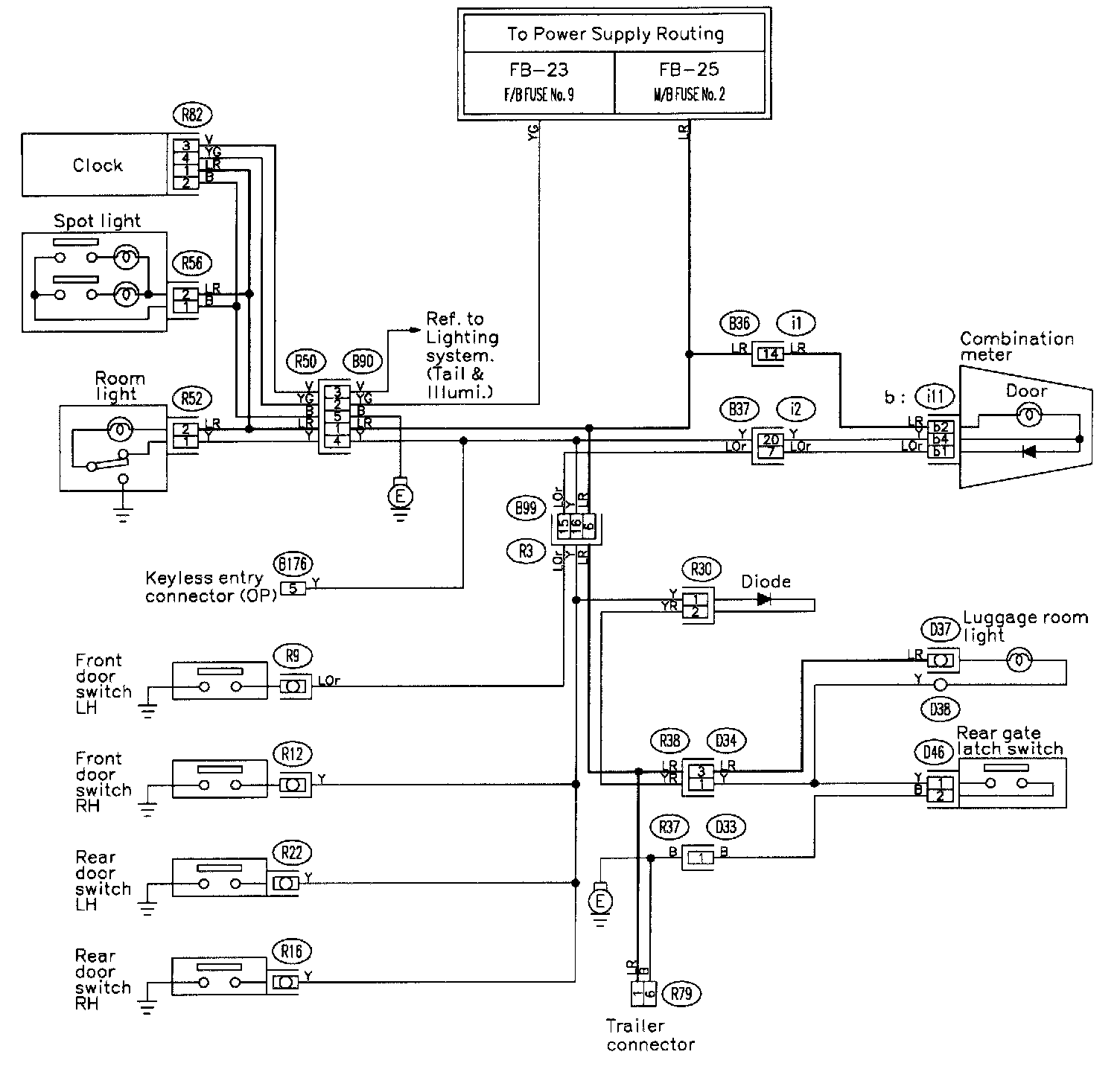

DOOR SWITCH WIRING DIAGRAM
CONNECTORS
