Cylinder Head Assembly
>>
System Diagram
System Diagram

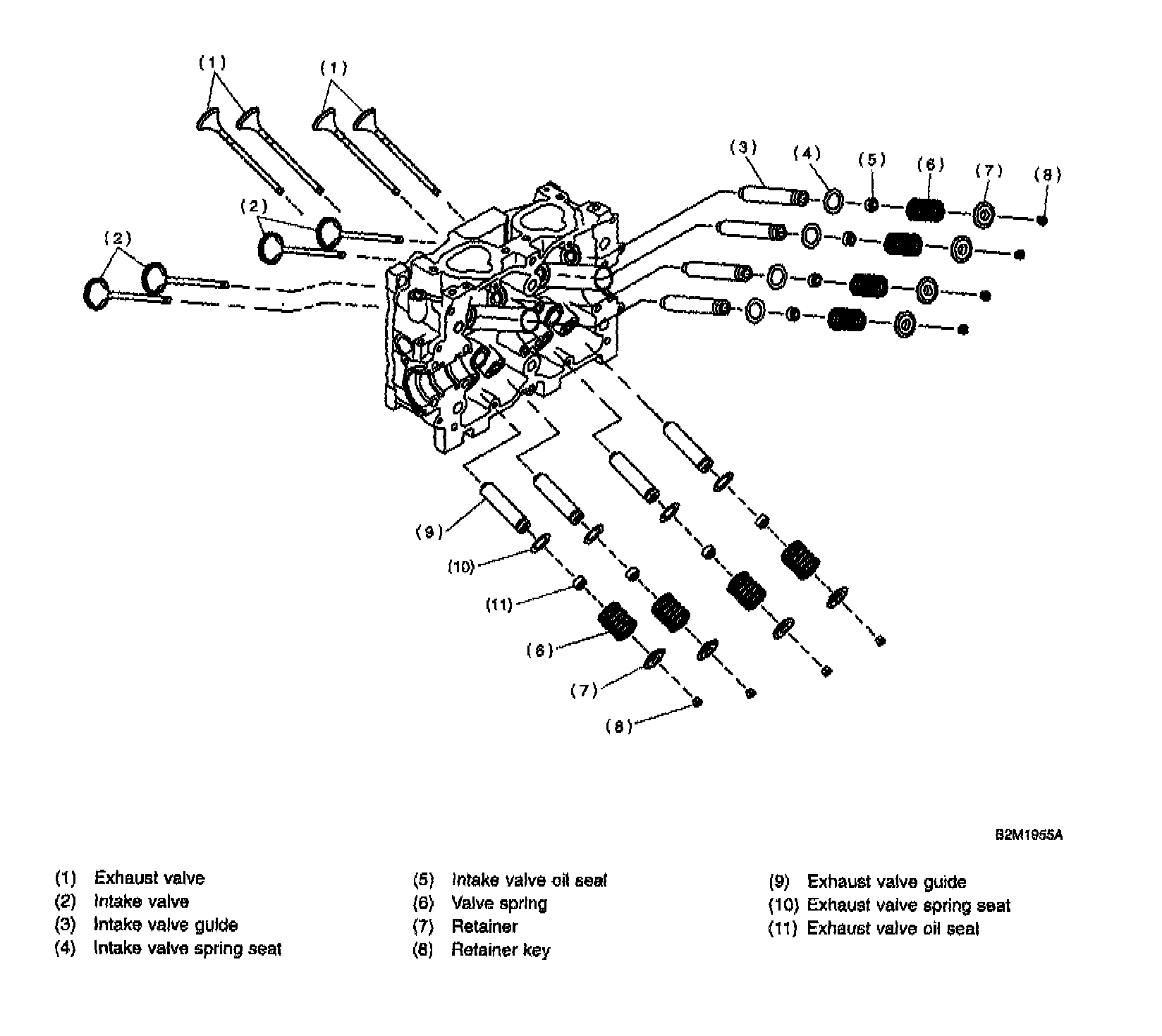

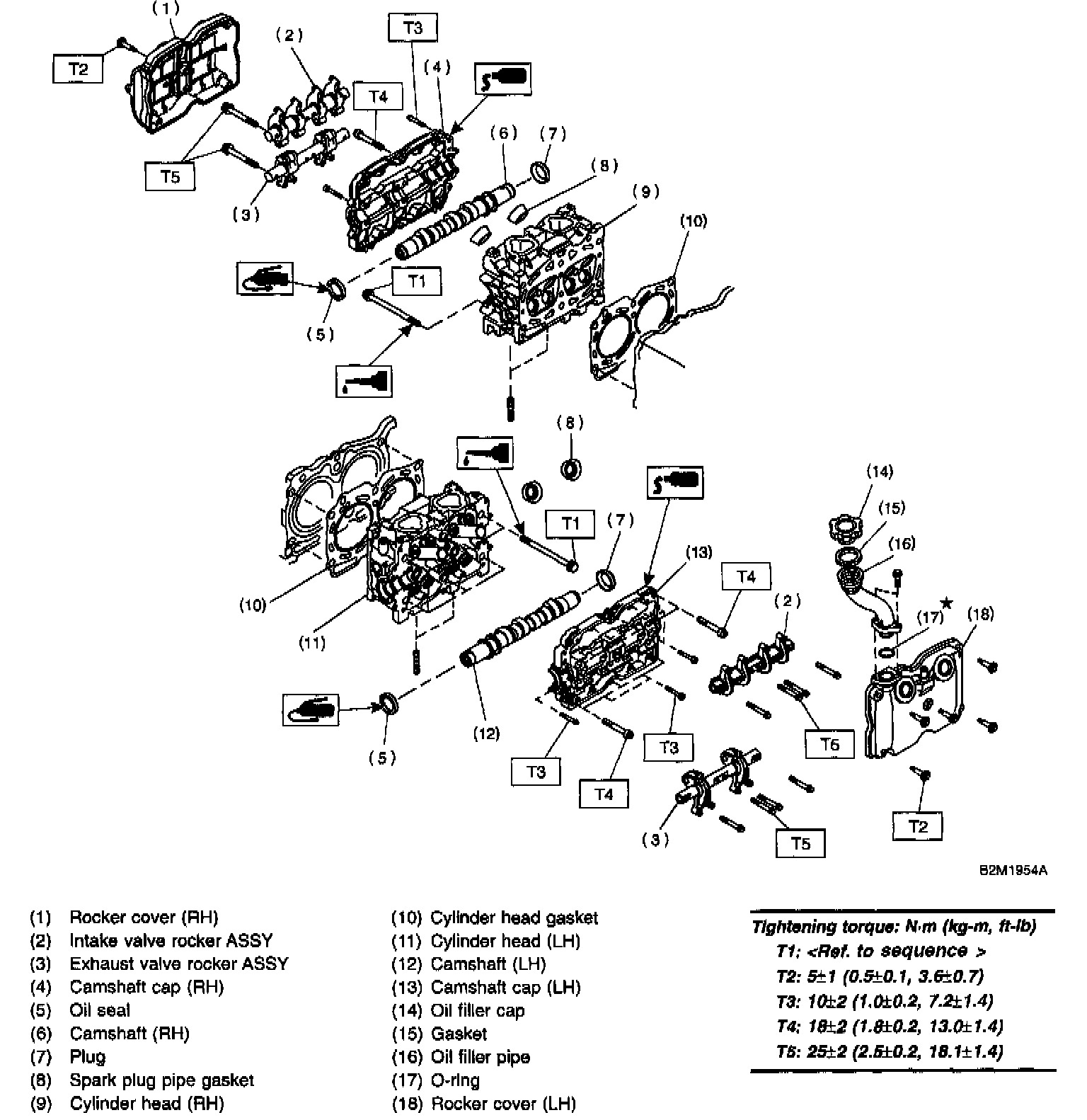

CYLINDER HEAD ASSEMBLY
W/ RELATED COMPONENTS
