Pinout Values and Diagnostic Parameters

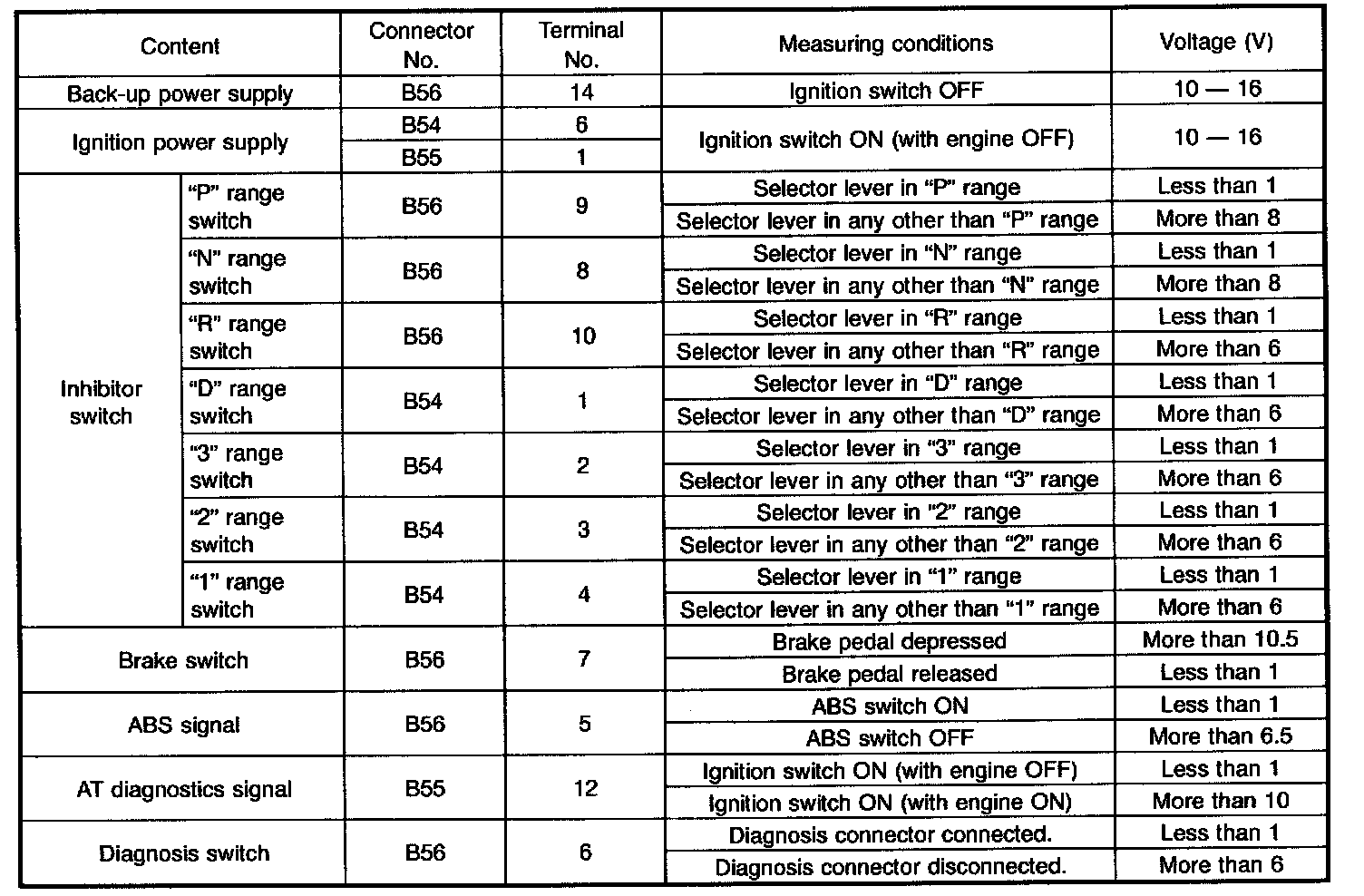

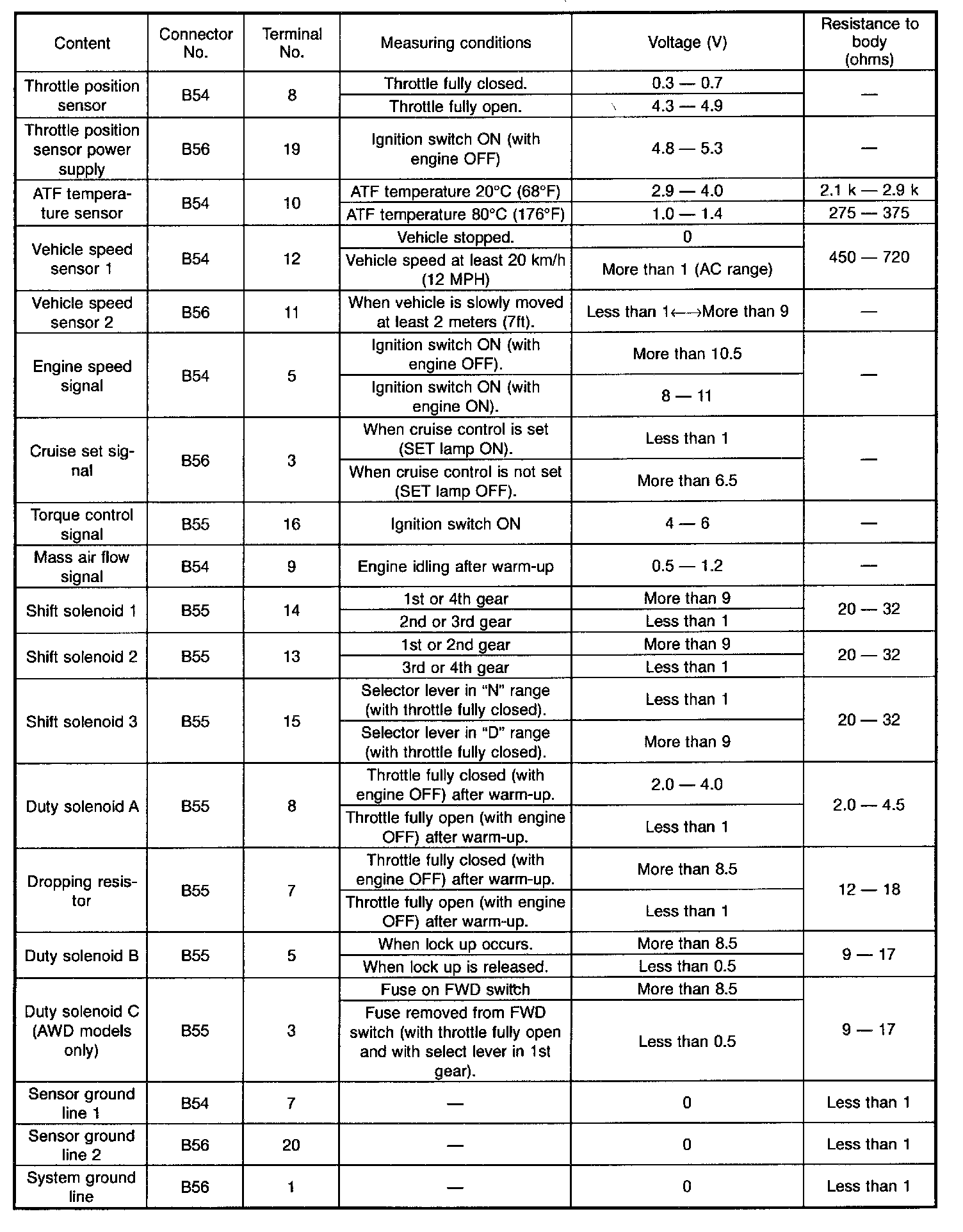

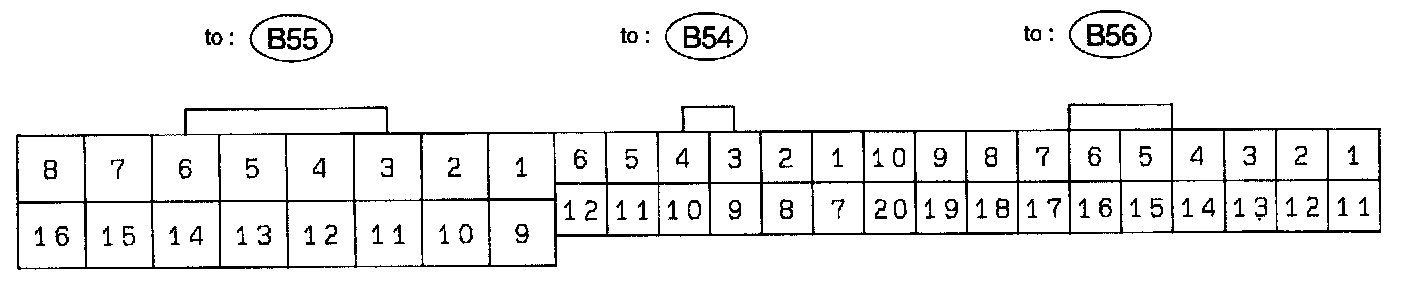

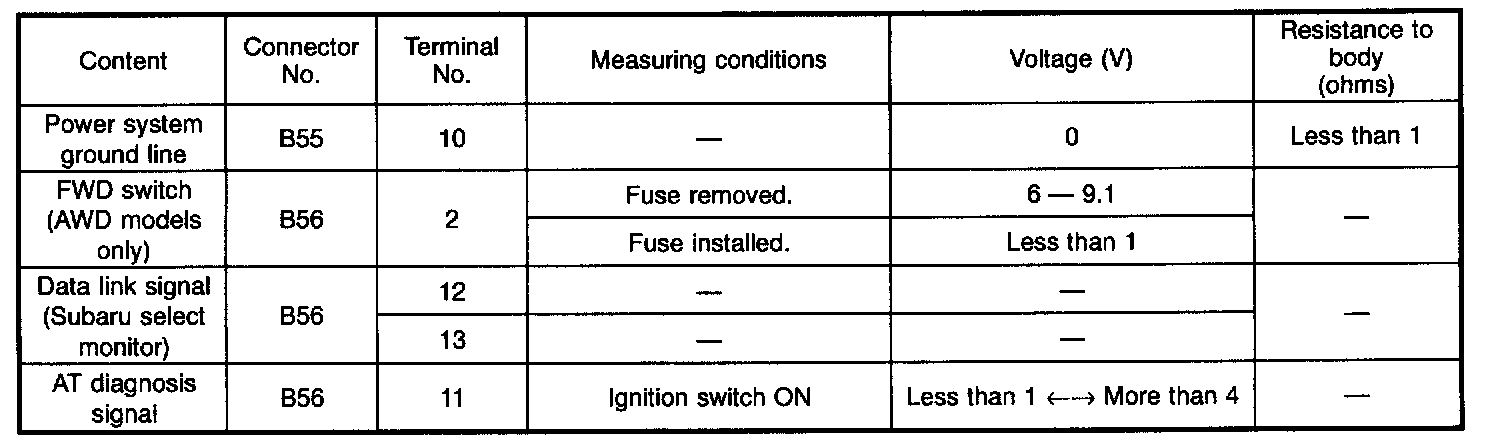

TRANSMISSION CONTROL MODULE (TCM) I/O SIGNAL

NOTE: Check with ignition switch ON.
