Curiosii for ever!: Car repair manuals for everyone.
Home >> Subaru >> 1998 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Chart With Select Monitor >> Check Throttle Position Sensor

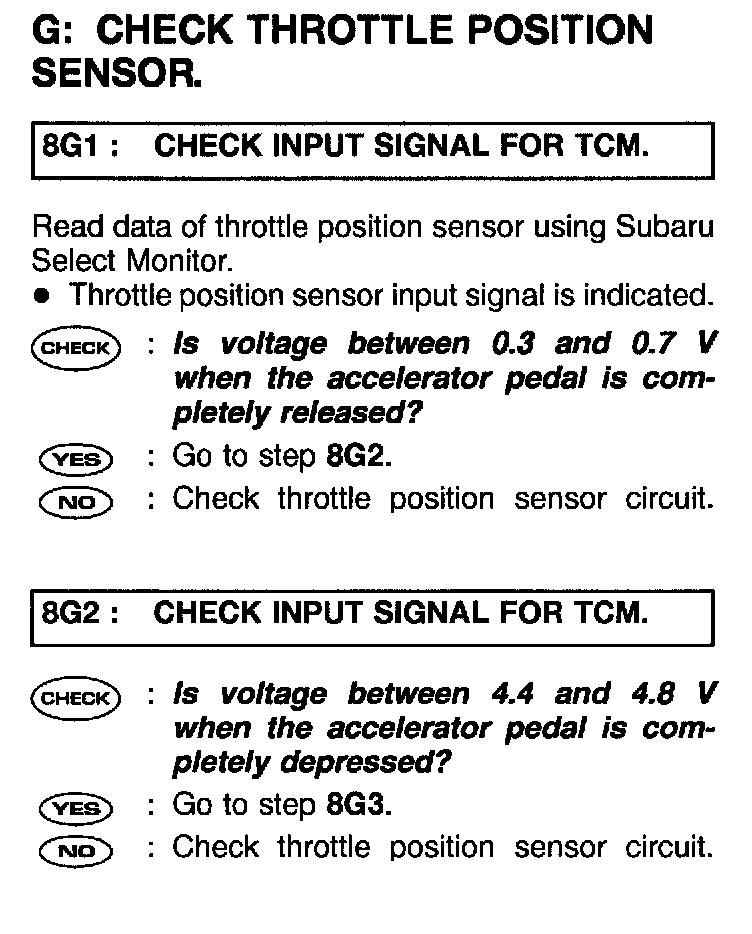

Check Throttle Position Sensor








CHECK THROTTLE POSITION SENSOR
