Subaru
>>
1998
>>
Forester AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Control Module
>>
Locations
>>

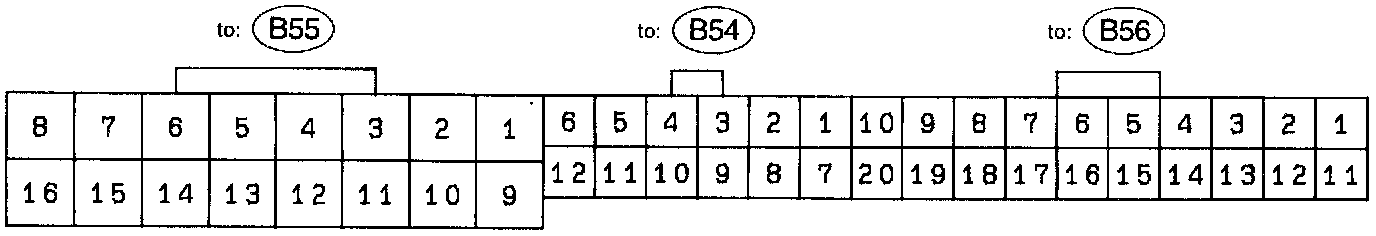

Connector Locations
Connector Locations

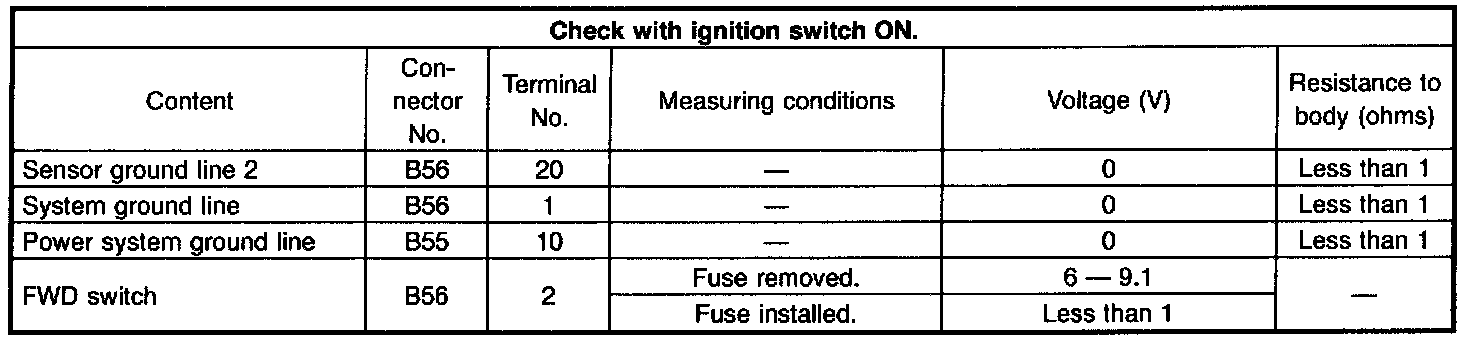

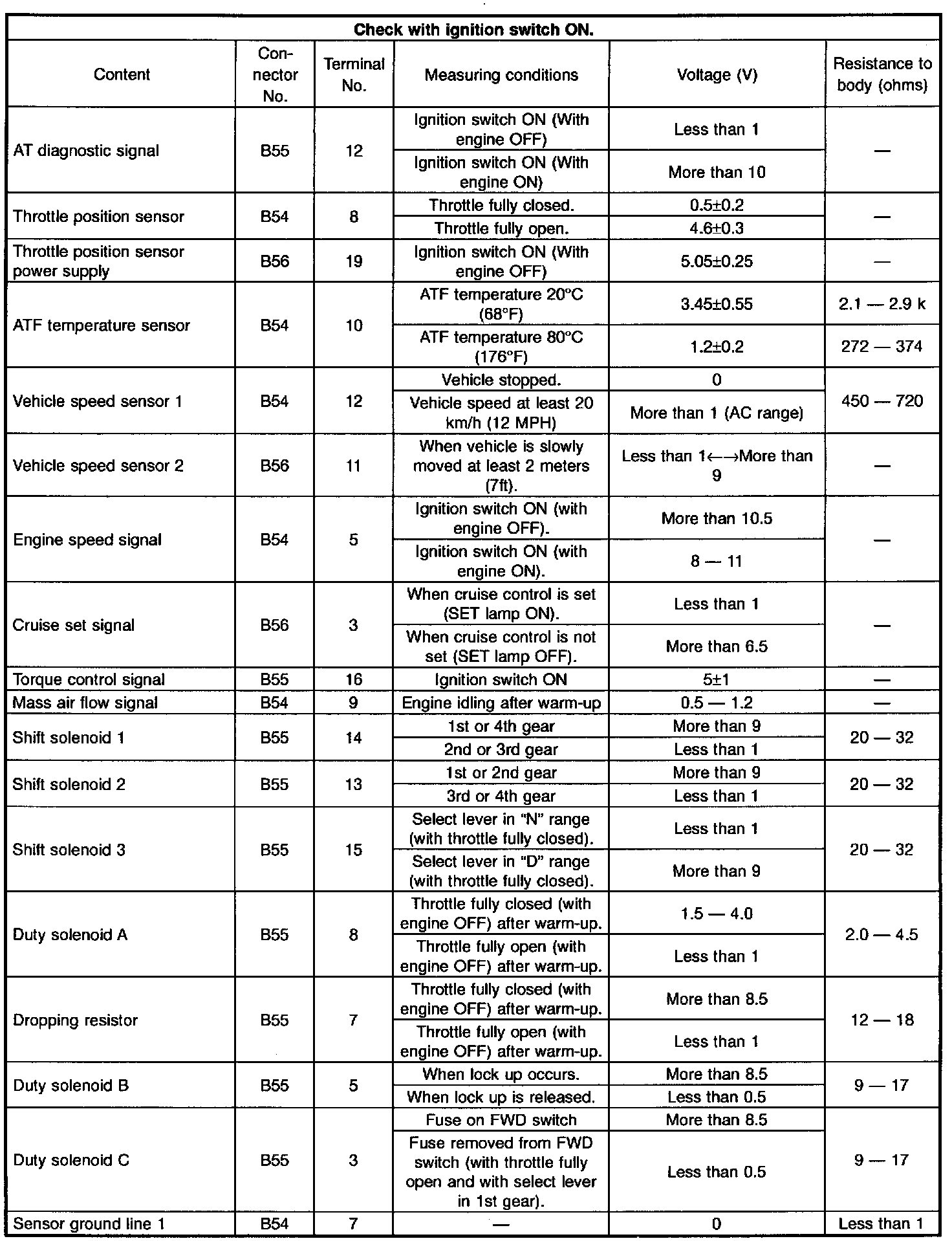

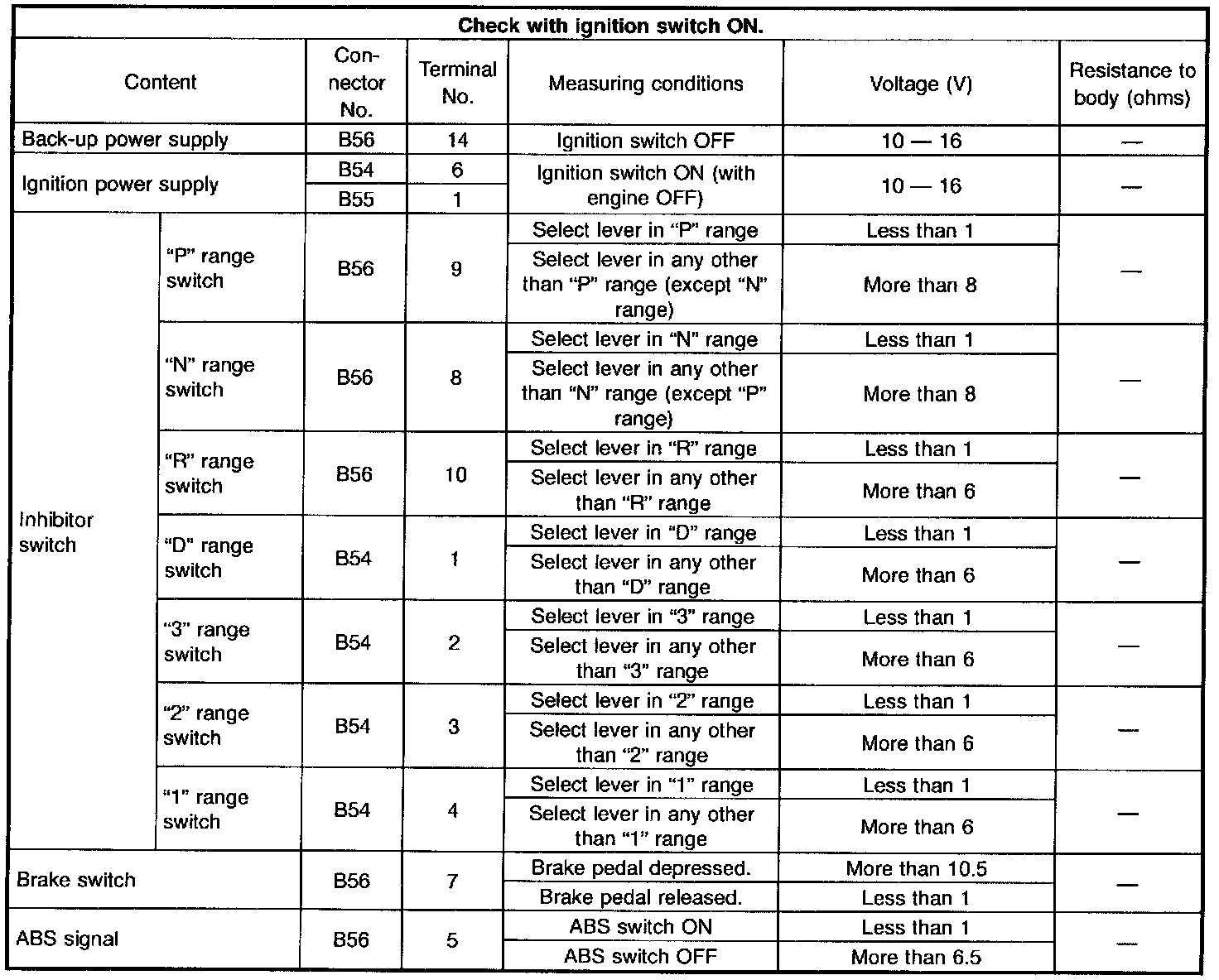

TRANSMISSION CONTROL MODULE (TCM) I/O SIGNAL
