Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Subaru
>>
1998
>>
Forester AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Connector Views
Connector Views

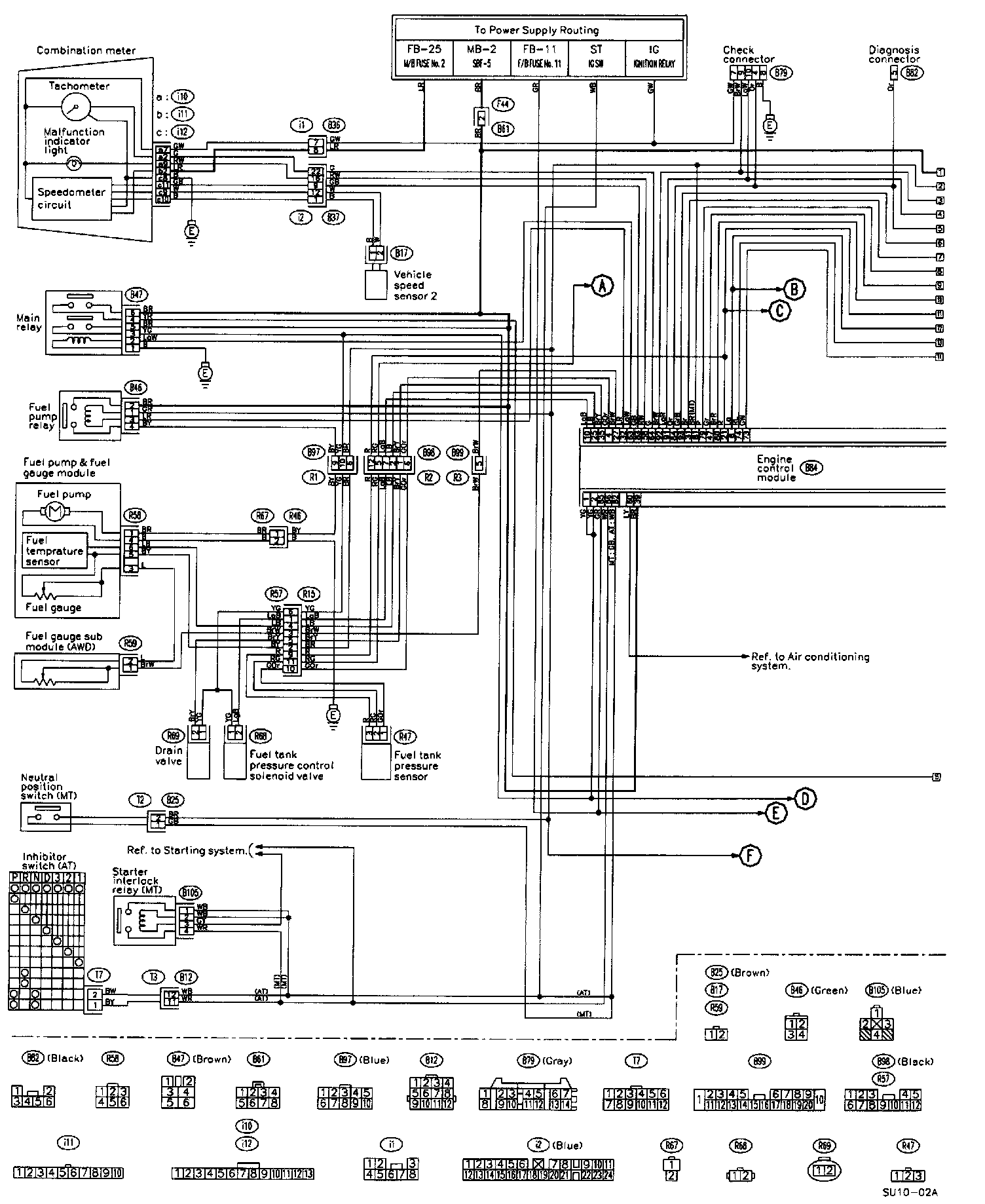

Engine Electrical System Circuit 1:

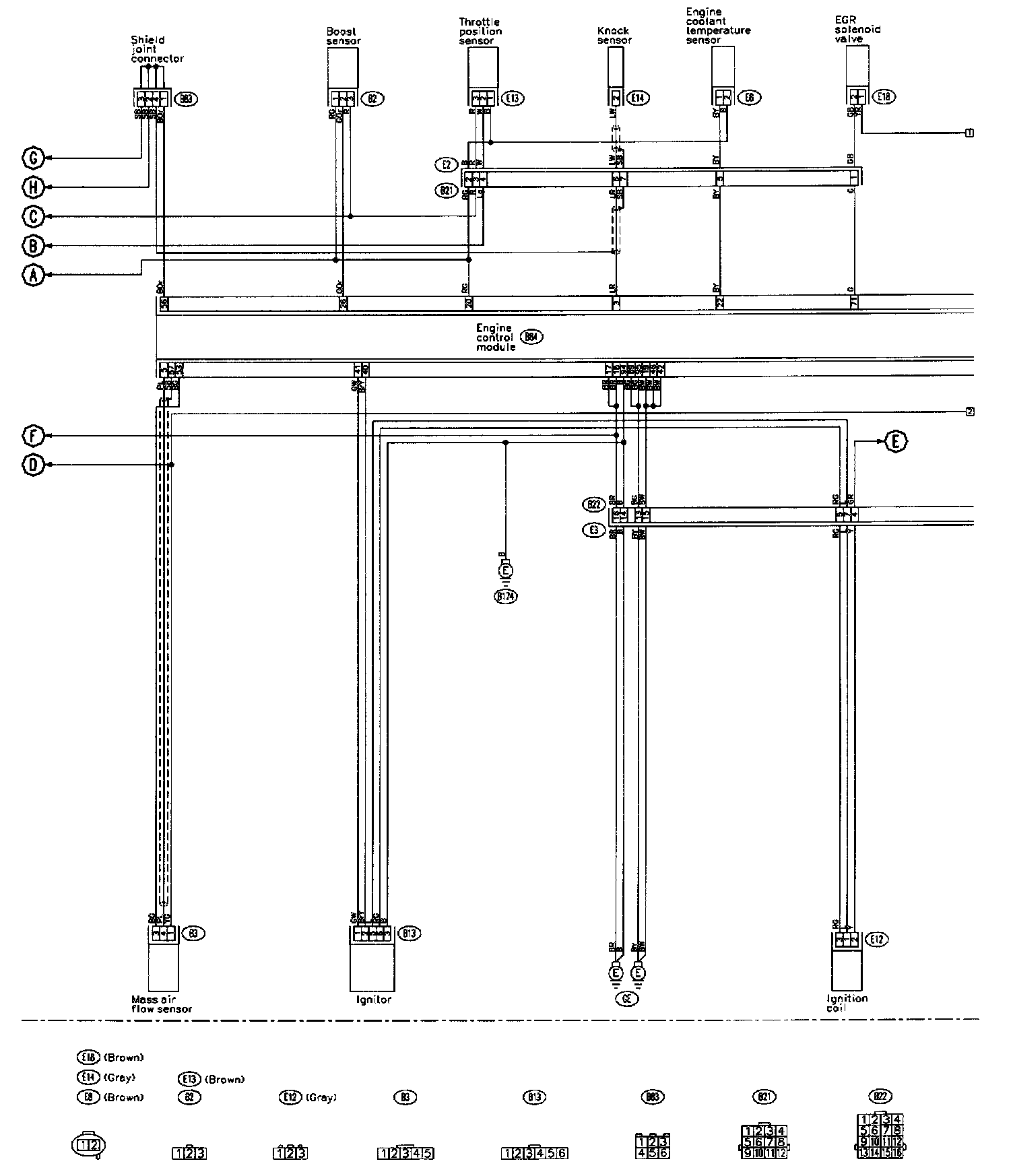

Engine Electrical System Circuit 2:

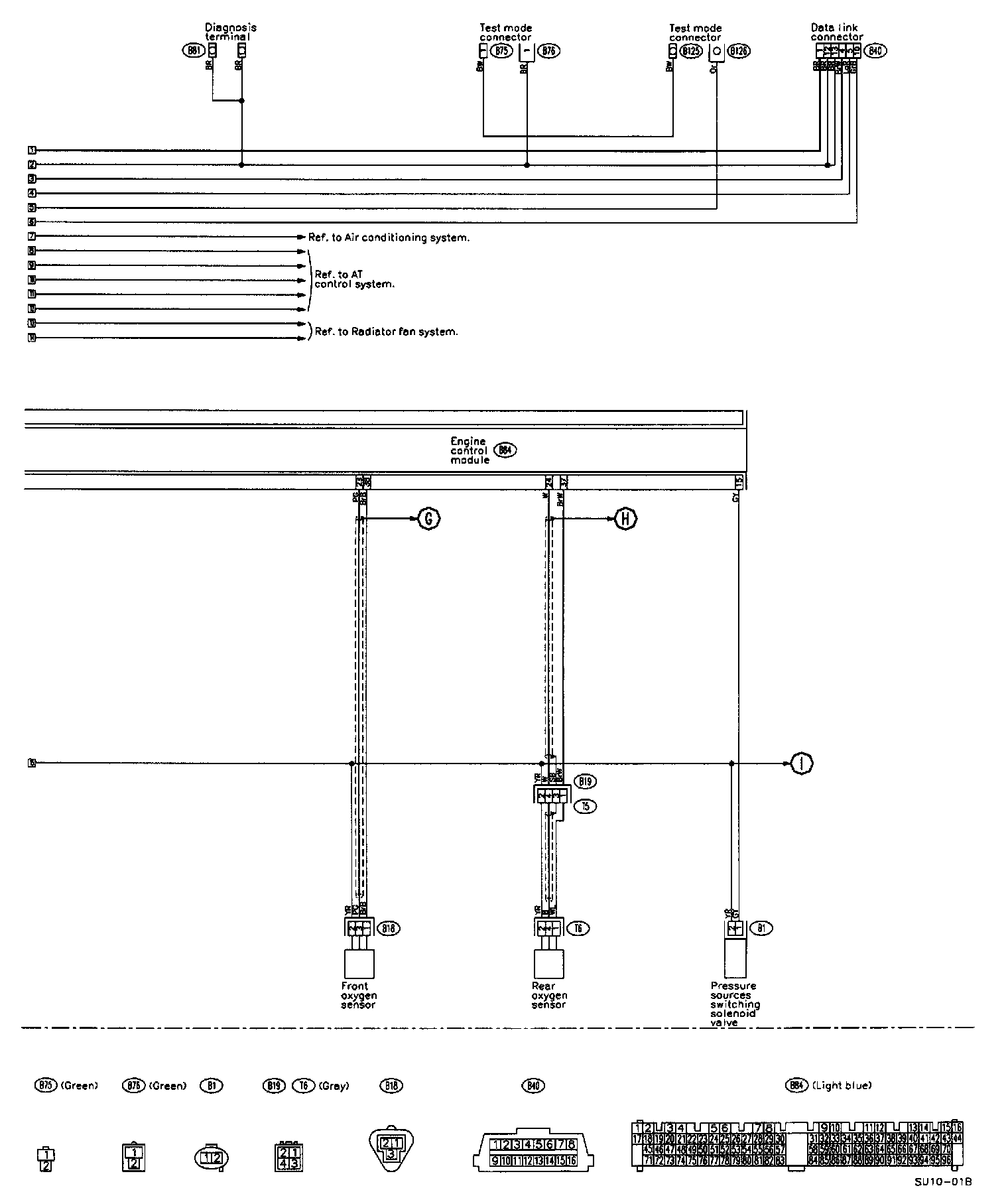

Engine Electrical System Circuit 3:
Engine Electrical System Circuit 4:
