Home
>>
Subaru
>>
1996
>>
Impreza Outback F4-2.2L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Heating and Air Conditioning
>>
System Specifications
>>
Evaporator
Evaporator

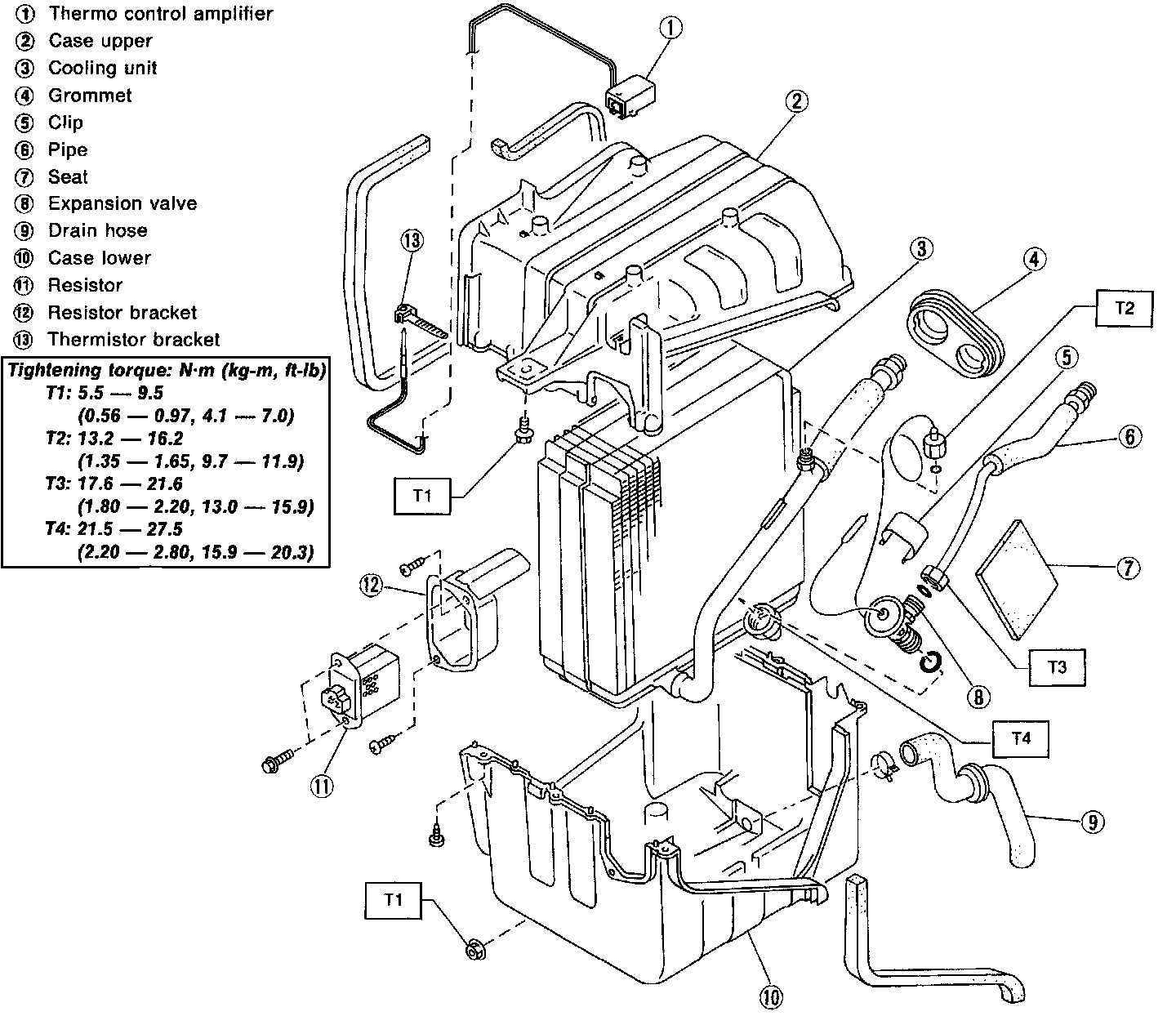

Evaporator (Cooling Unit):
