Home
>>
Subaru
>>
1987
>>
Hatchback 2WD F4-1595cc 1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
XT
XT

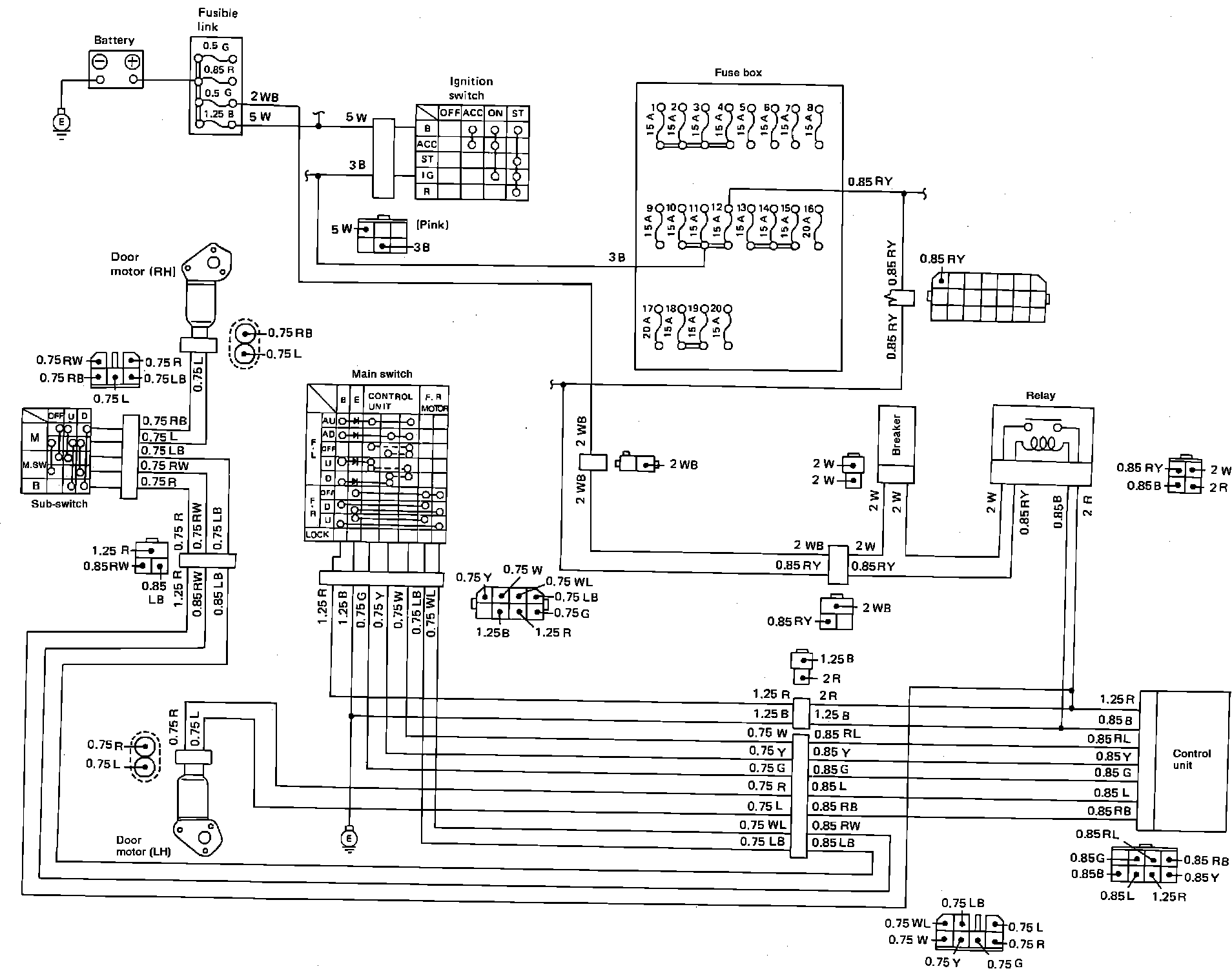

Fig. 128 Power Window Wiring Circuit. XT Models:
