Subaru Truck
>>
1984
>>
Brat F4-1781cc 1.8L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Specifications
>>
Differential Torque Data
>>
Front and Rear Axle
Front and Rear Axle

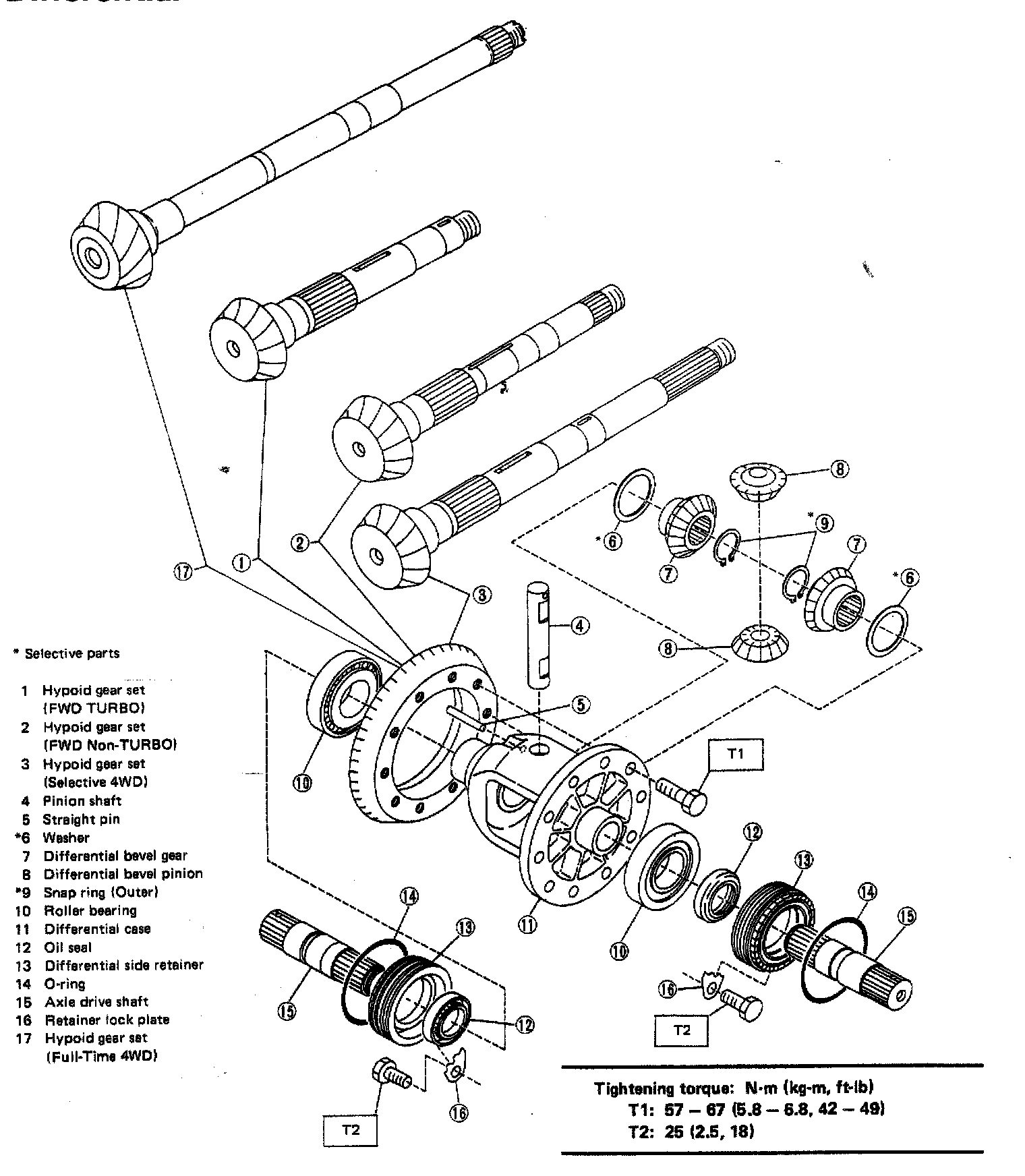

5-spd M/T, Differential:

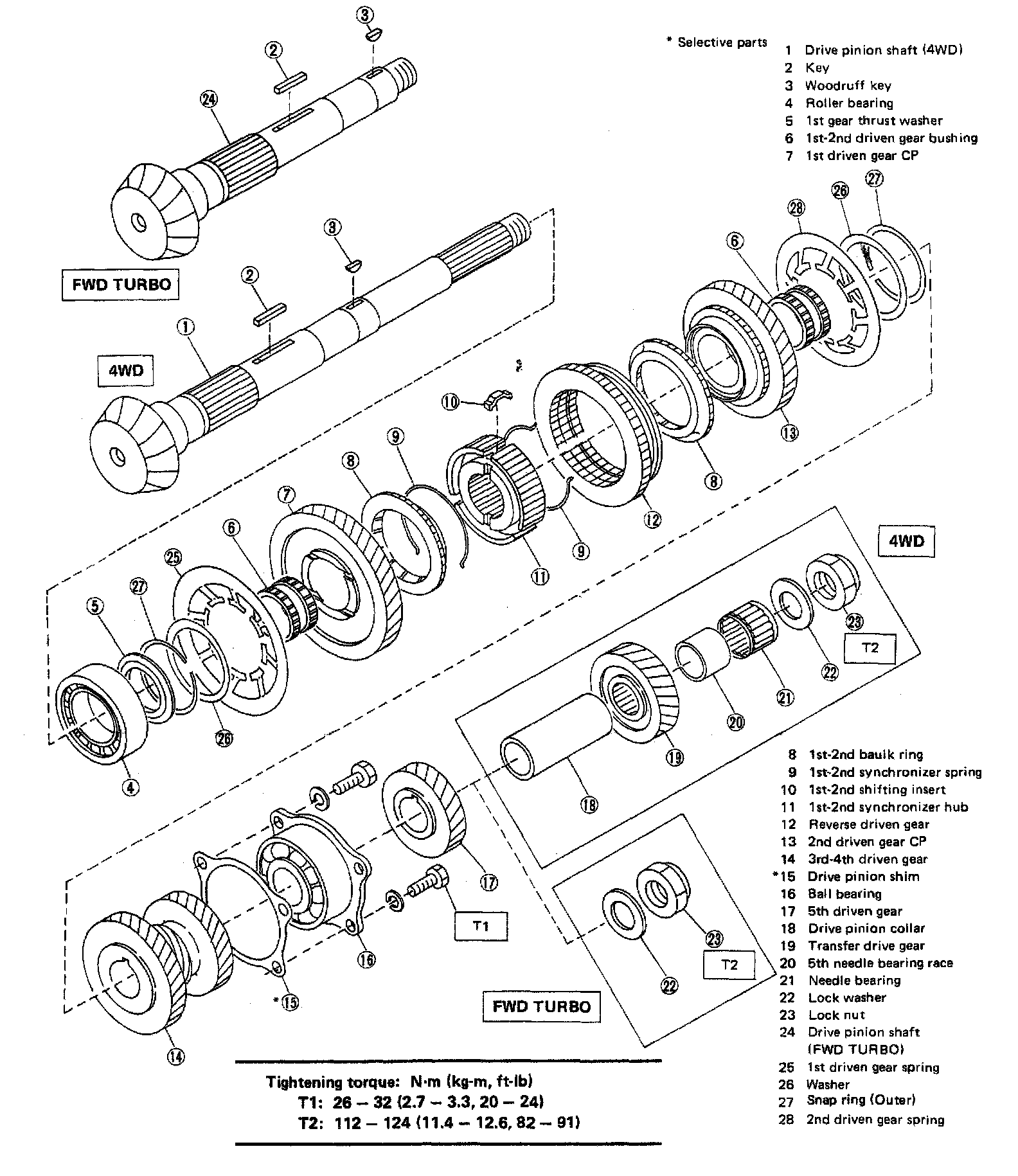

5-spd M/T, Drive Pinion Shaft (Full-Time 4WD):

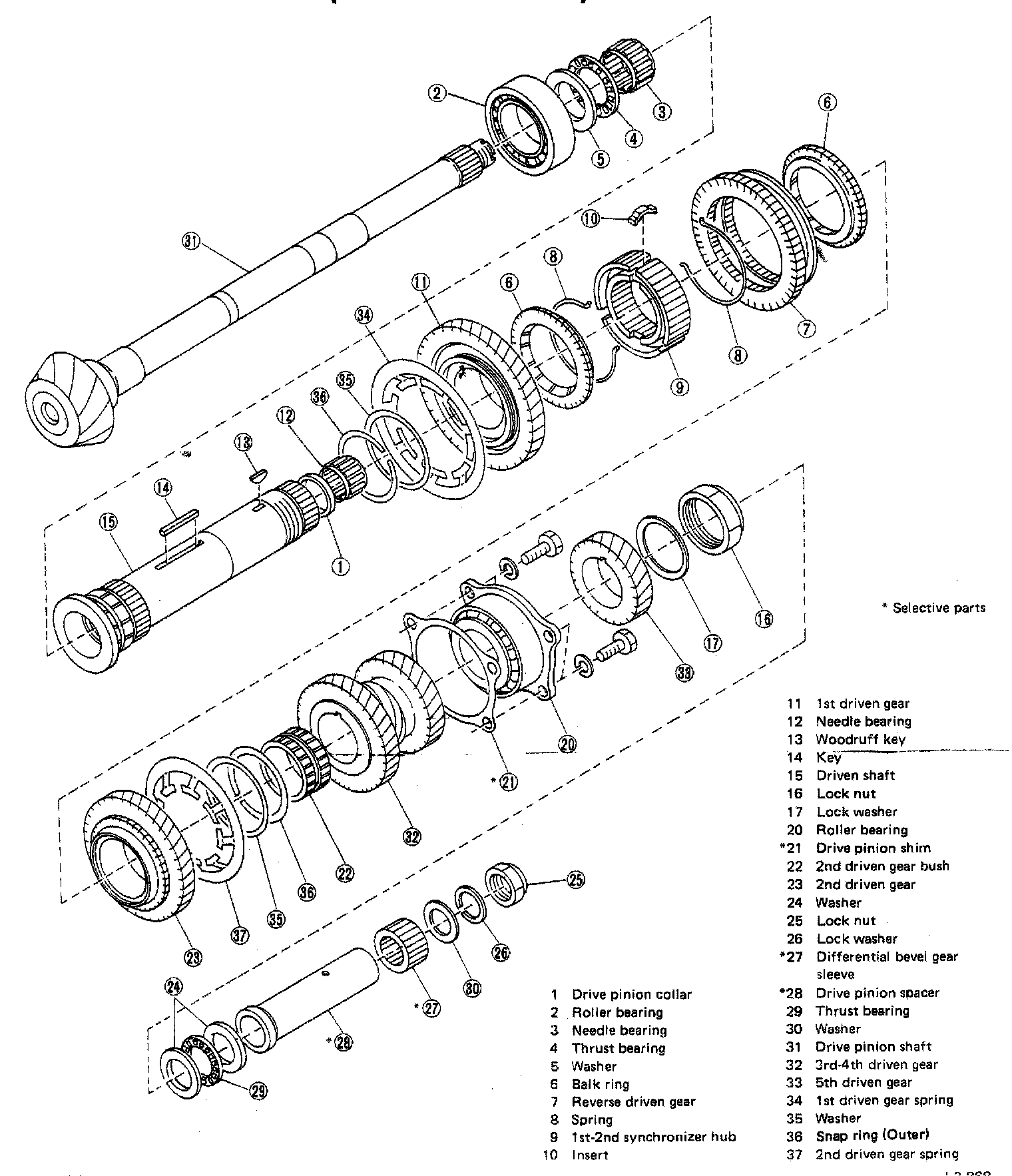

5-spd M/T, Drive Pinion Shaft (Selective 4WD & FWD TURBO):

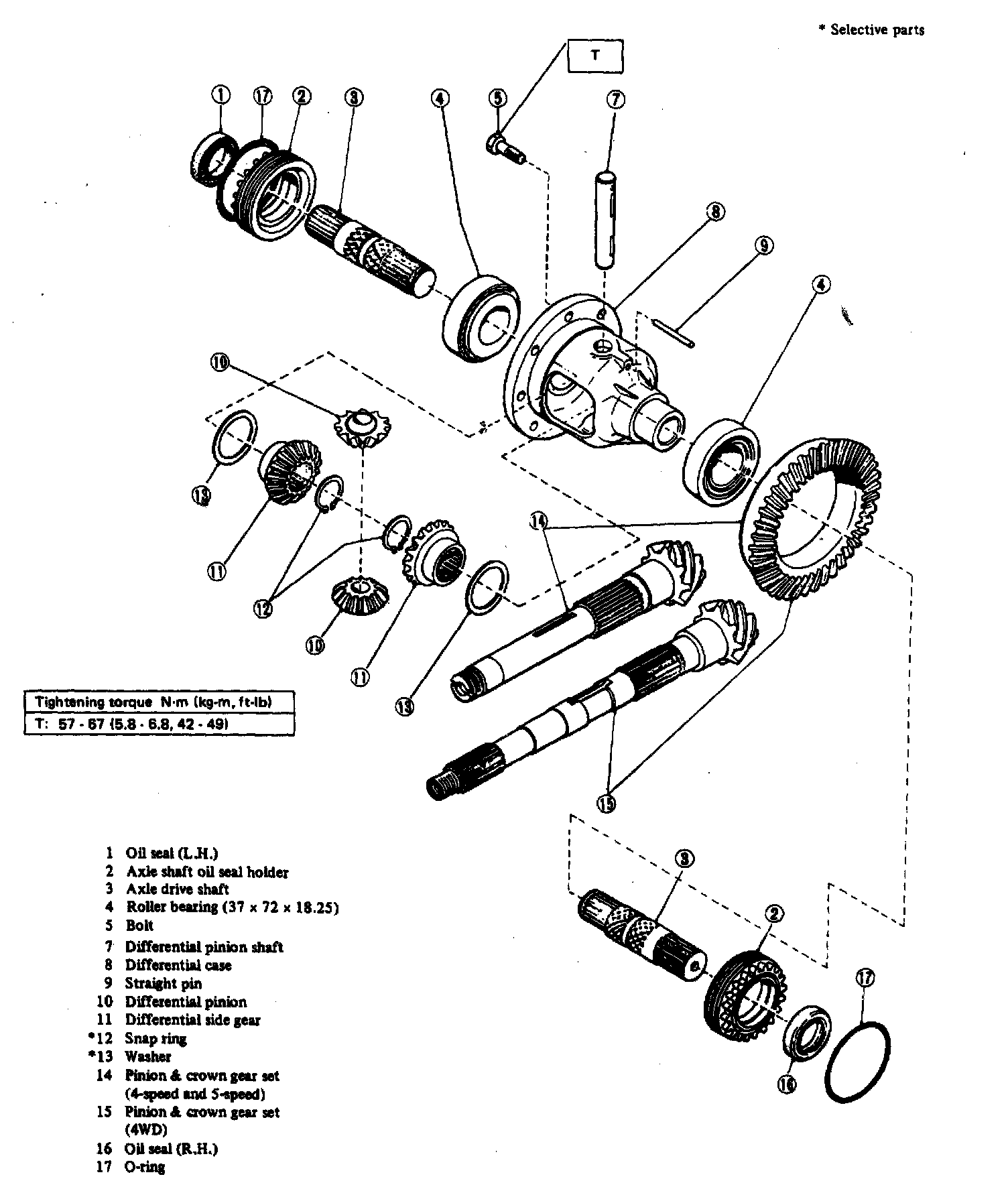

4/5 Spd M/T, Differential:
