Governor Gear - Lubricate When Installing
84subaru1 NUMBER 16-23-84DATE 09-12-84
APPLICABILITY: ALL SUBARU'S EQUIPPED WITH AUTOMATIC TRANSMISSIONS
SUBJECT: GOVERNOR GEAR LUBRICATION
-THIS SERVICE BULLETIN IS FOR INFORMATION ONLY-

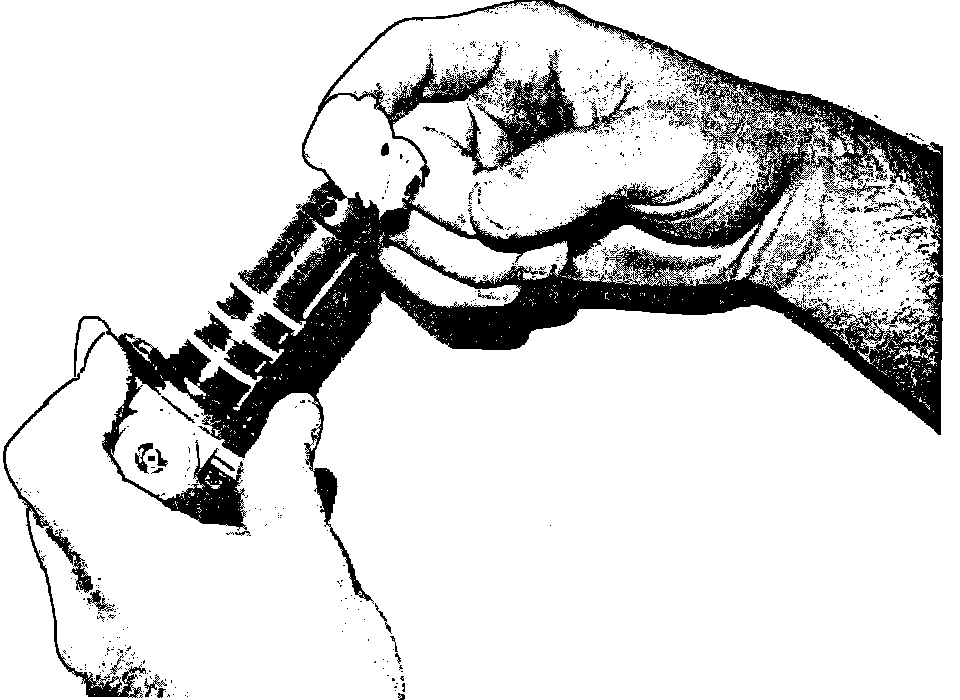

FIGURE 1:
Whenever servicing or installing the steel governor gear (P/N 445 097 010) it is necessary that you lubricate it prior to installation, filling the teeth with lithium grease such as Shell Alvania NO. 2. (Which is available on a national level.) or the equivalent.
For proper application of the lubrication refer to FIGURE 1.
