System Specifications

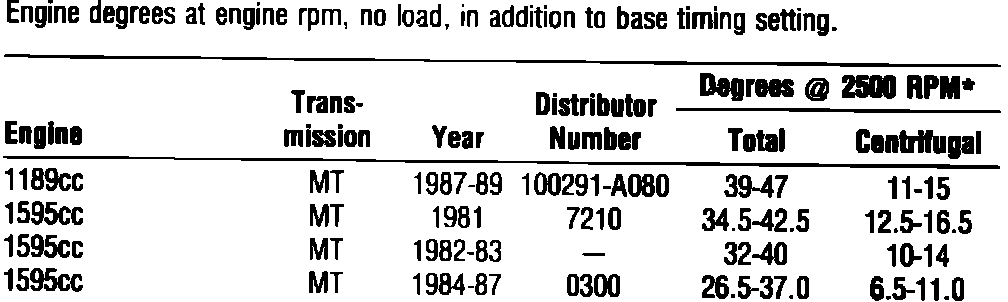

Fig. 2 Distributor Timing Advance Specifications:

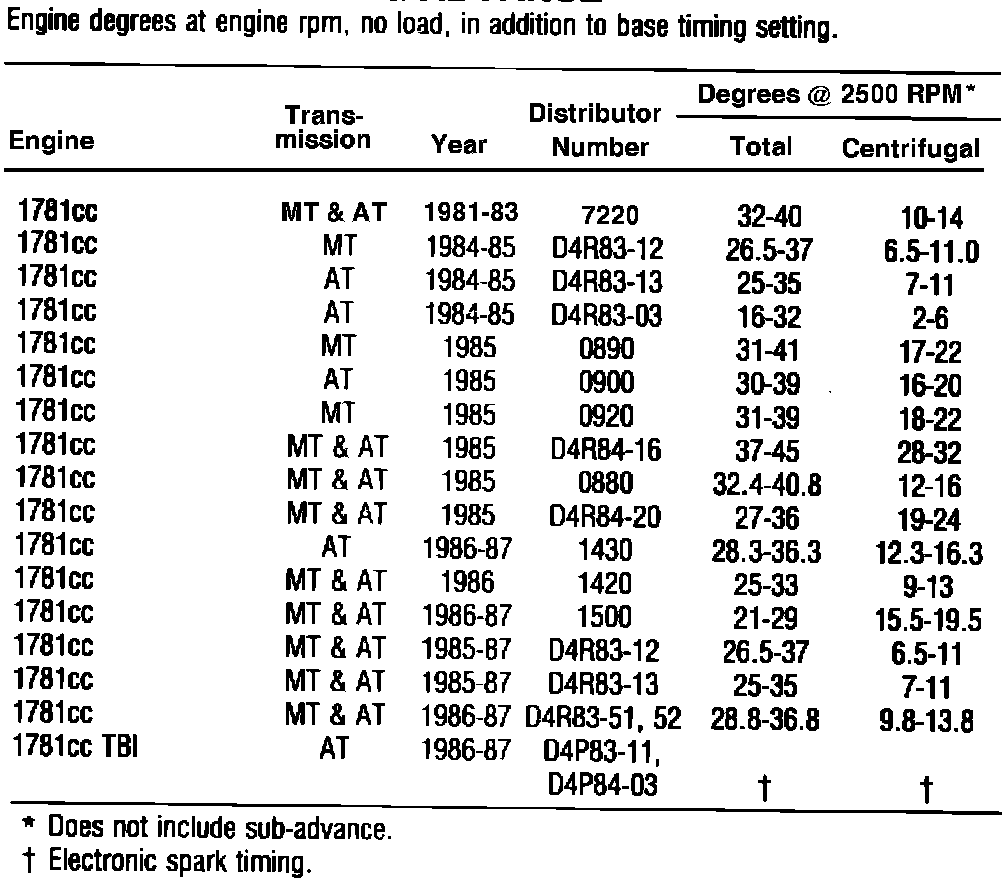

Fig. 1 Distributor Timing Advance Specifications:
