Subaru Truck
>>
1984
>>
Brat F4-1781cc 1.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
System Diagram
>>
California Models
California Models

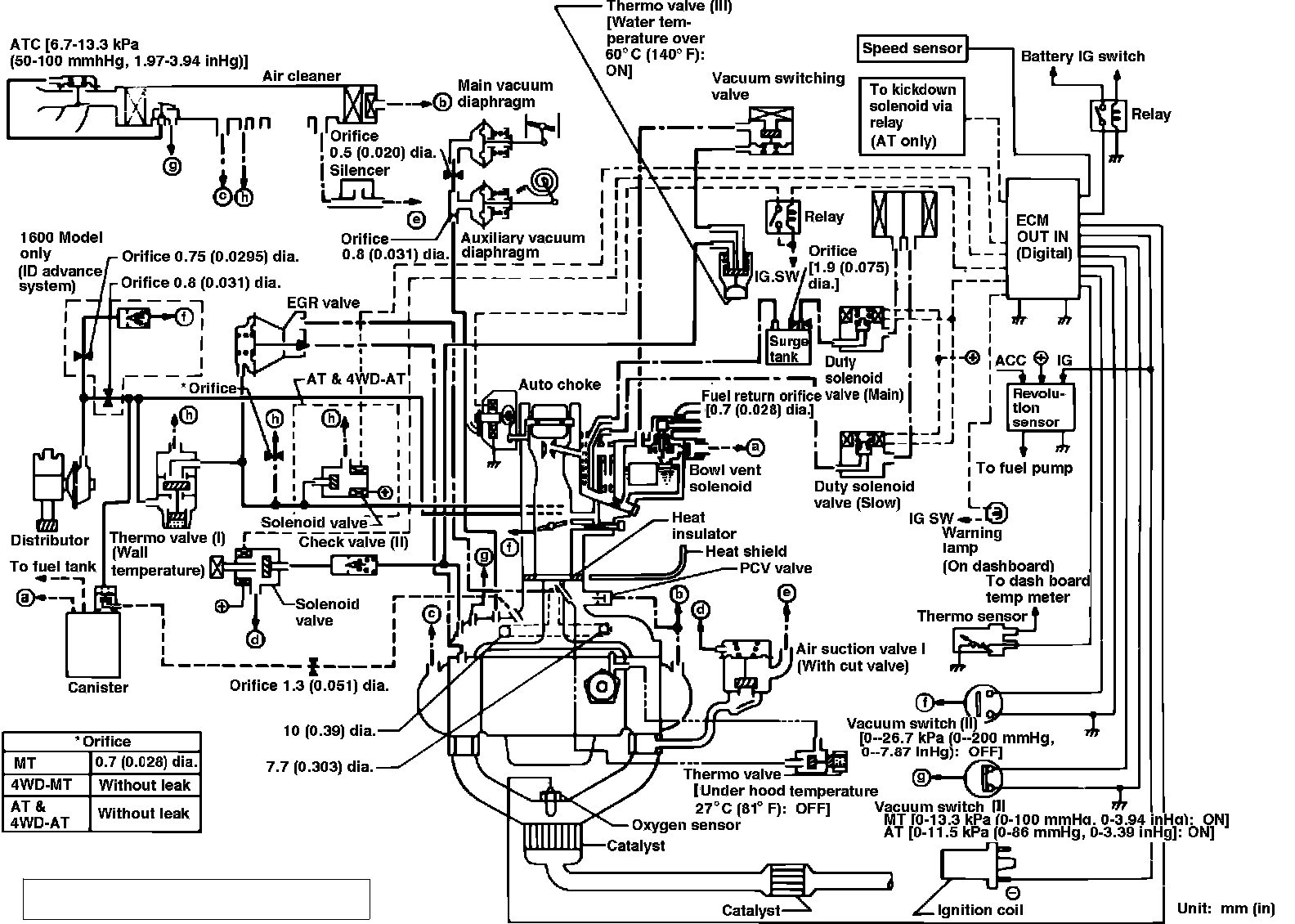

Fig.11 Emission system schematic. California models.:
