Subaru Truck
>>
1984
>>
Brat F4-1781cc 1.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Non-Turbo
Non-Turbo

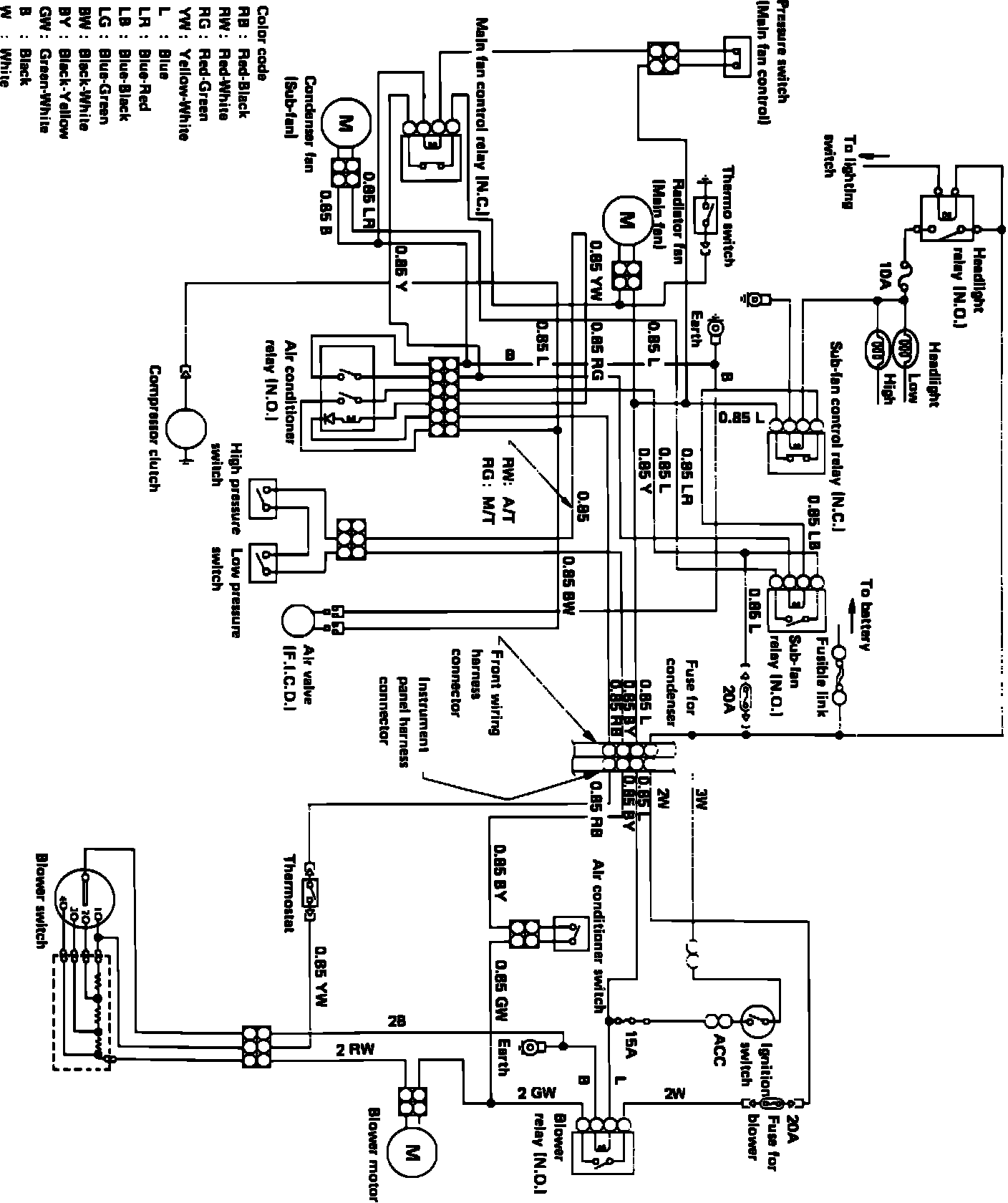

Wiring Diagram (Non-Turbo):

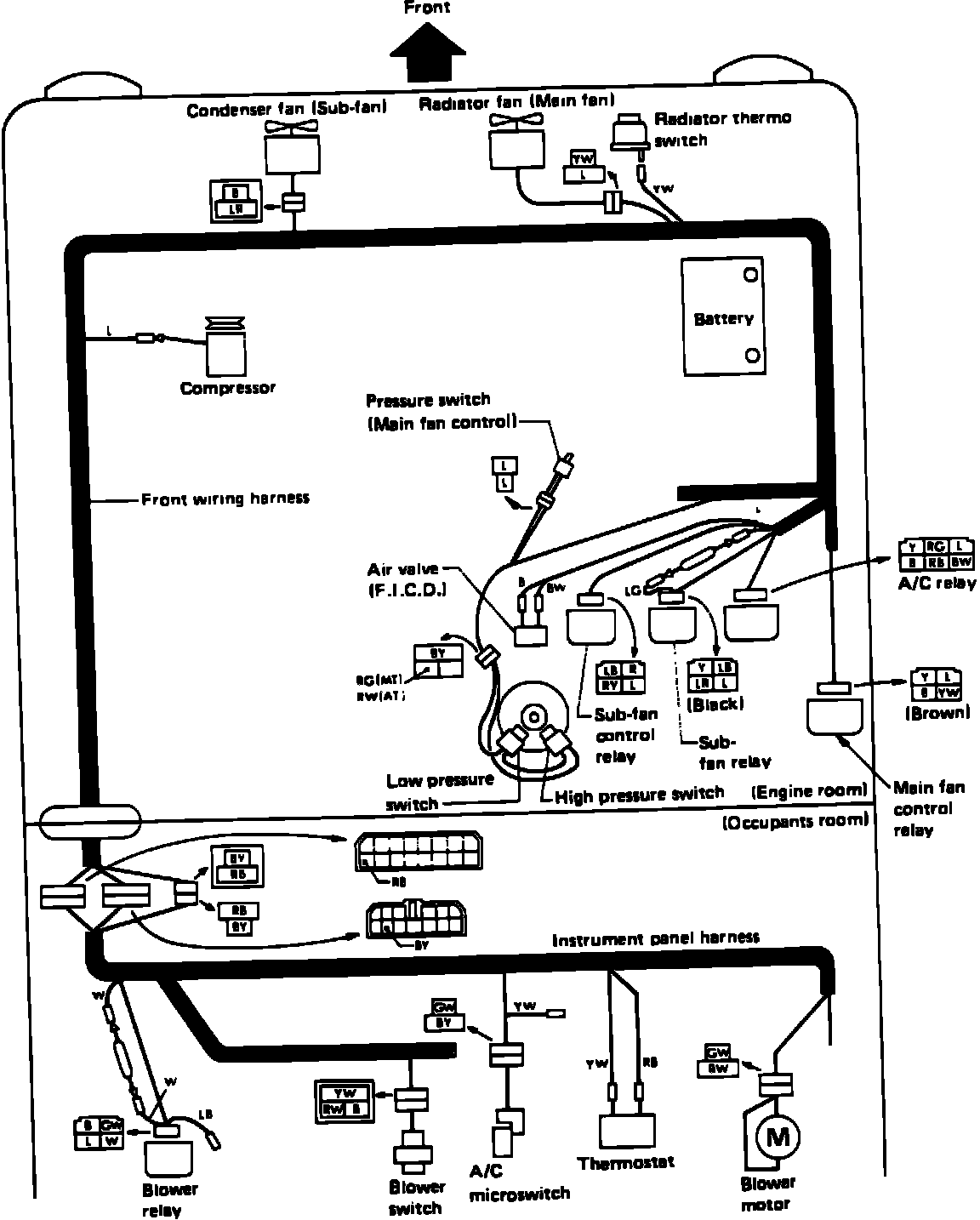

Wiring Harness (Non-Turbo):
