Fuel Pump & Fuel Pump Circuit Check

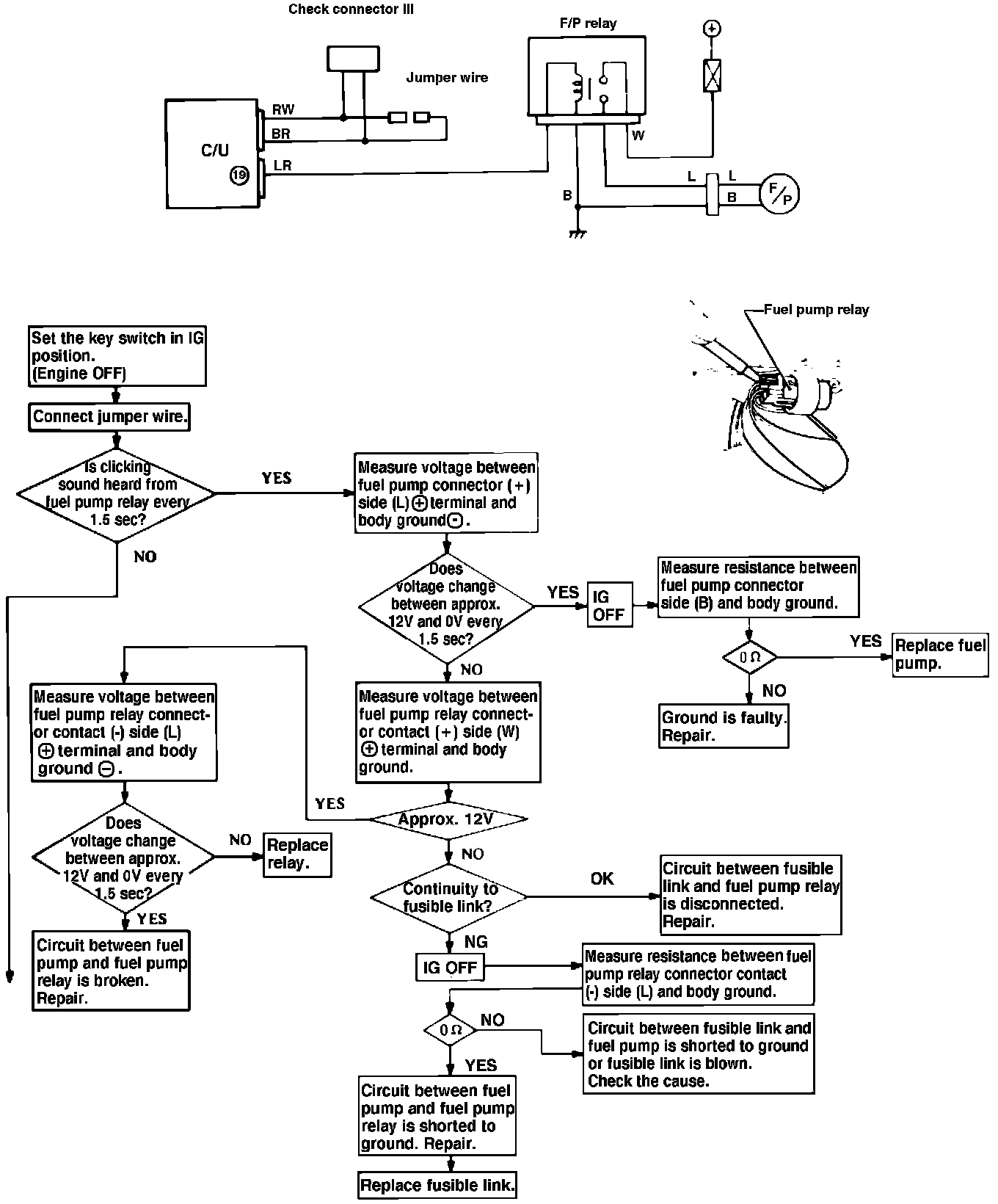

Fig.4a EGI system troubleshooting chart. Fuel pump circuit check.:

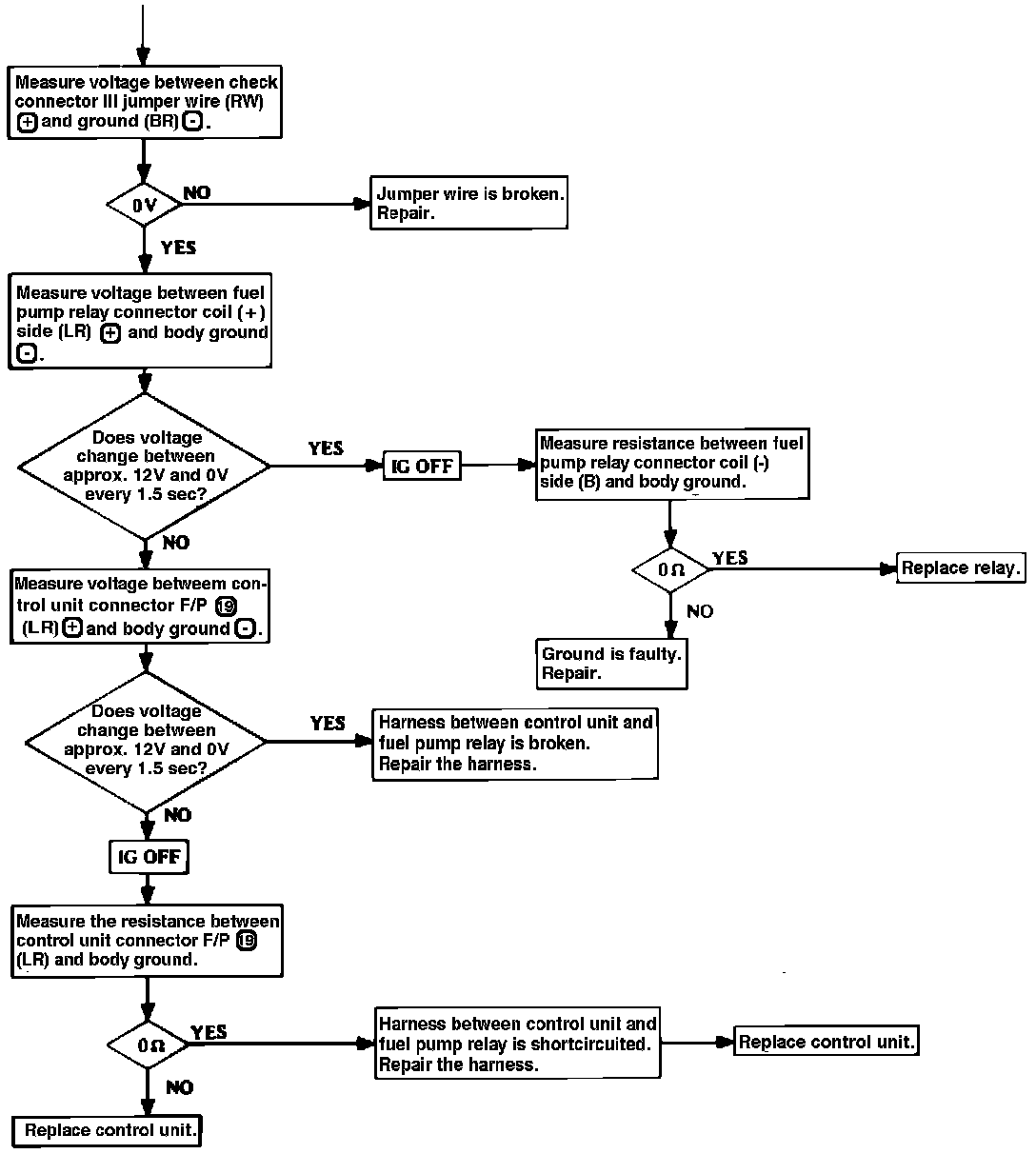

Fig.4b EGI system troubleshooting chart. Fuel pump circuit check.:
