Diagnostic Mode Switch/Connector
>>
Diagrams
>>
Check Connector I
Check Connector I

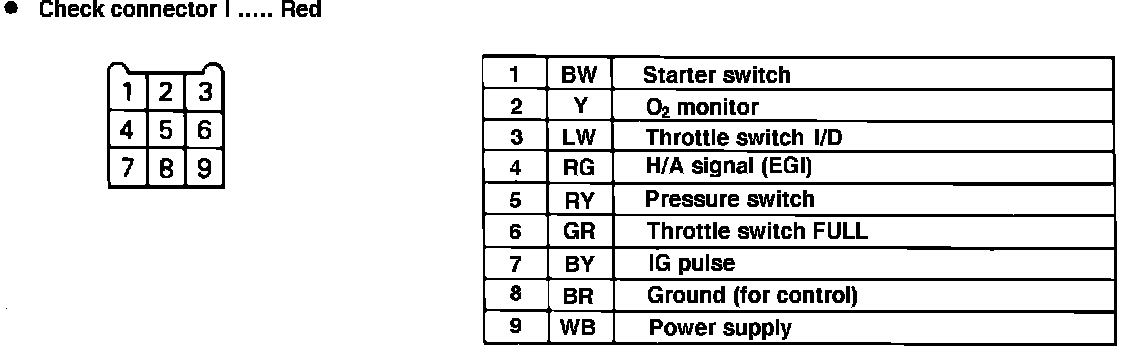

Fig.51a Check connector l...Red.:
