Air Temperature Sensor ( Ambient / Intake )
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

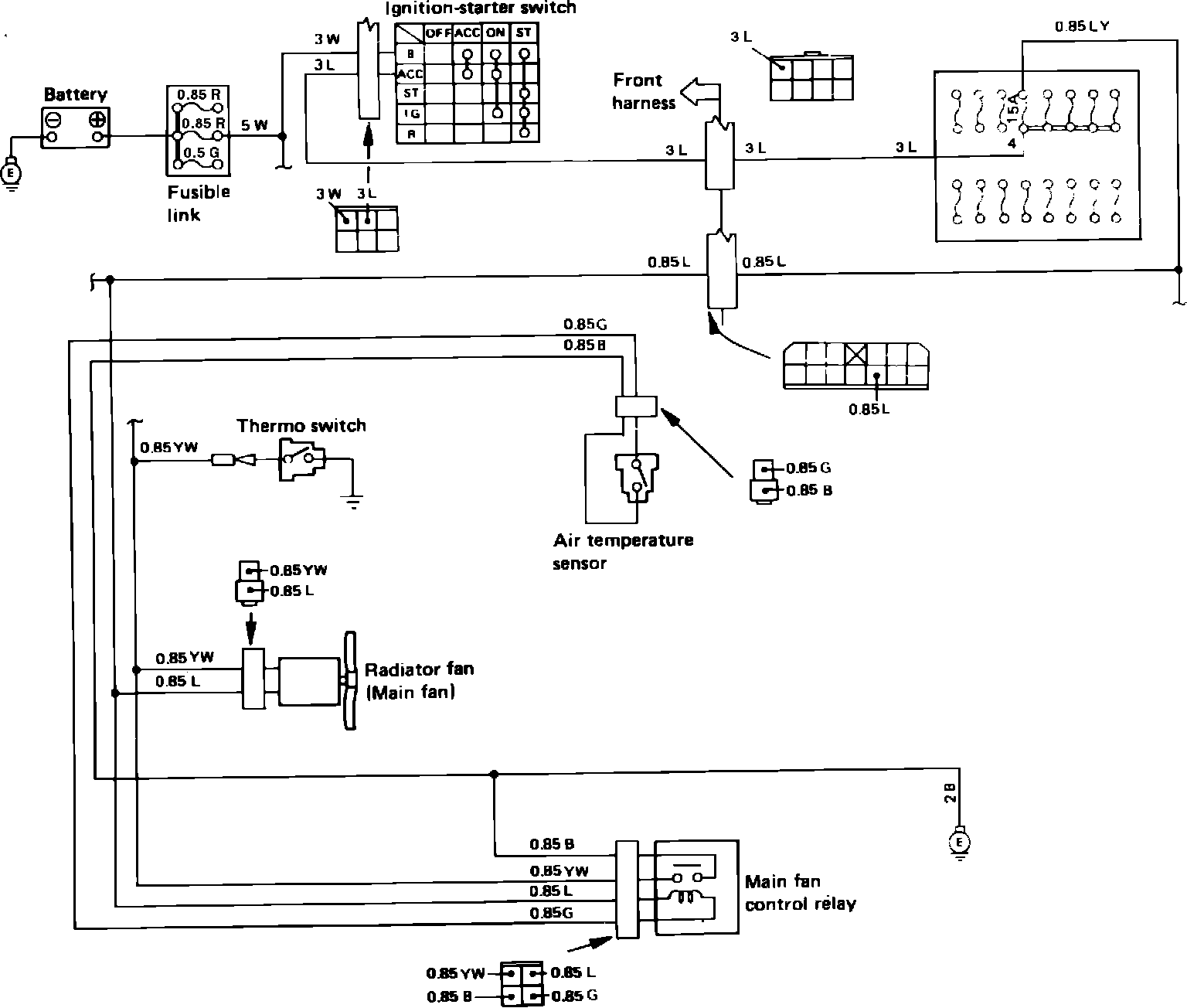

Fig. 15 Air Temperature Sensor & Cooling Fan Wiring Circuit. 1984 Turbocharged Models:
