Subaru Truck
>>
1984
>>
Brat F4-1781cc 1.8L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

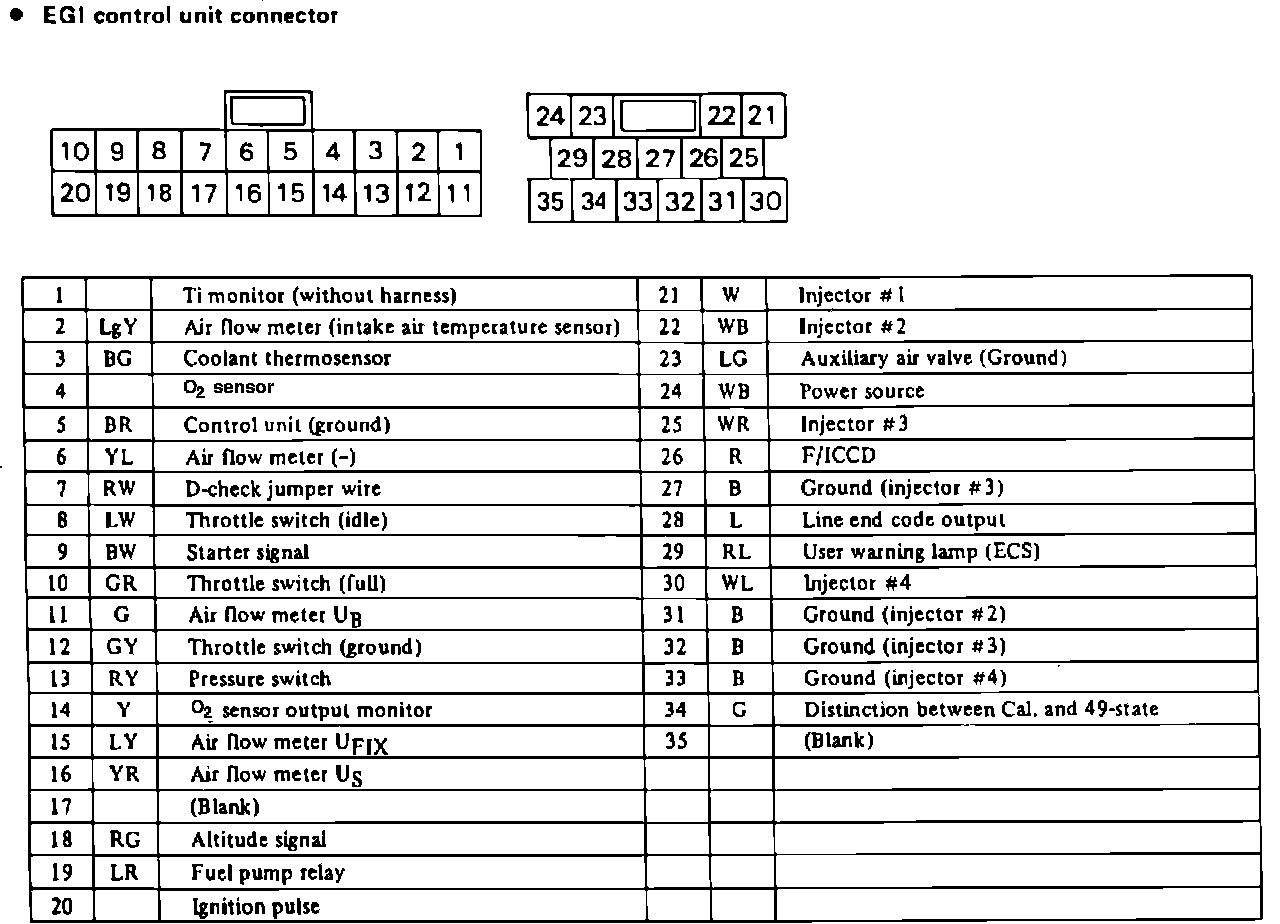

Fig.39 EGI control unit connector & wiring.:
