Home
>>
Saturn
>>
2009
>>
Astra L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Marker Lamp
>>
Position Lamp
Position Lamp
Component Connector End Views

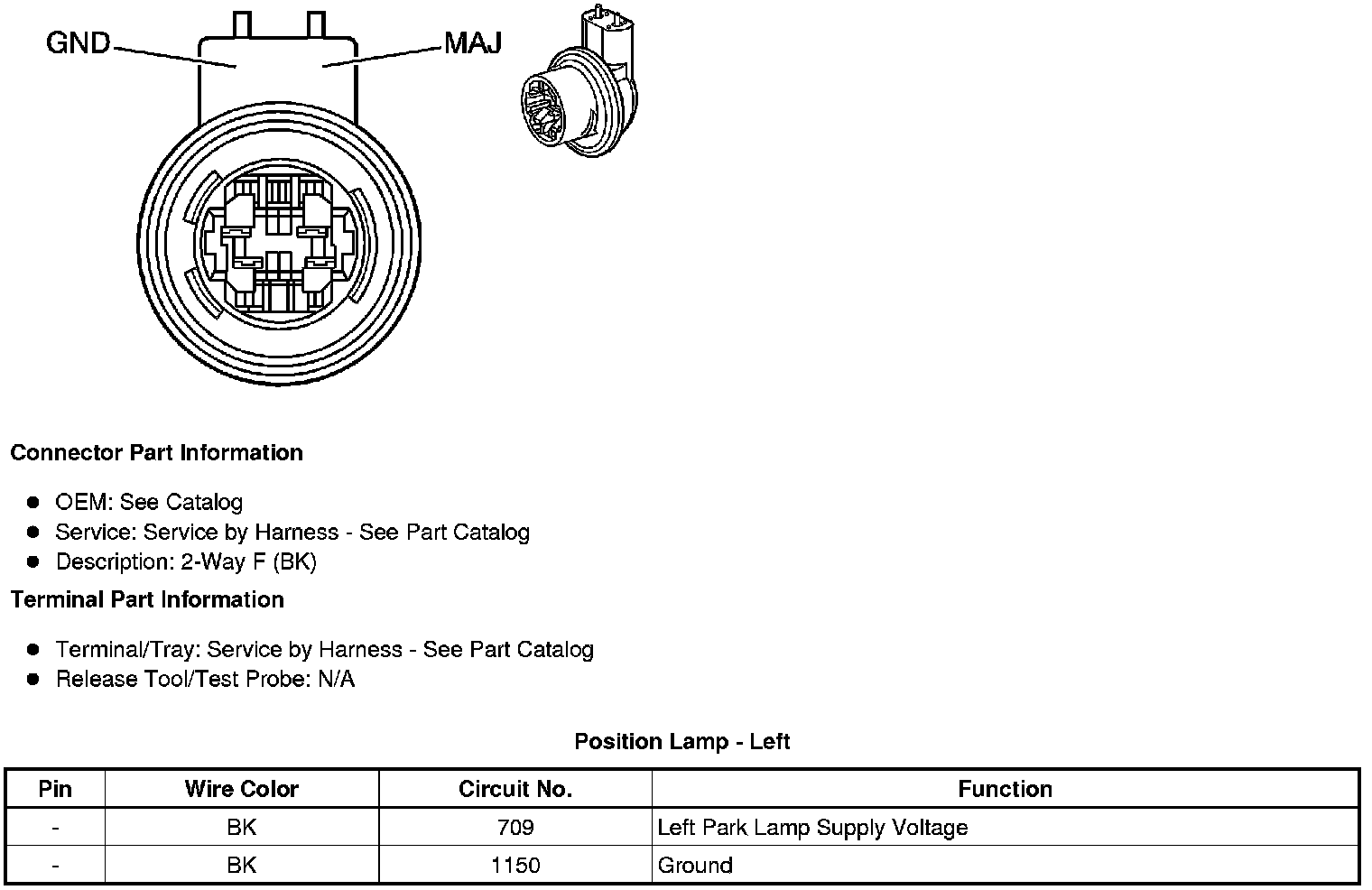

Position Lamp - Left
Position Lamp - Right
