Front Door Window Motor
Front Door Window Motor
Component Connector End Views

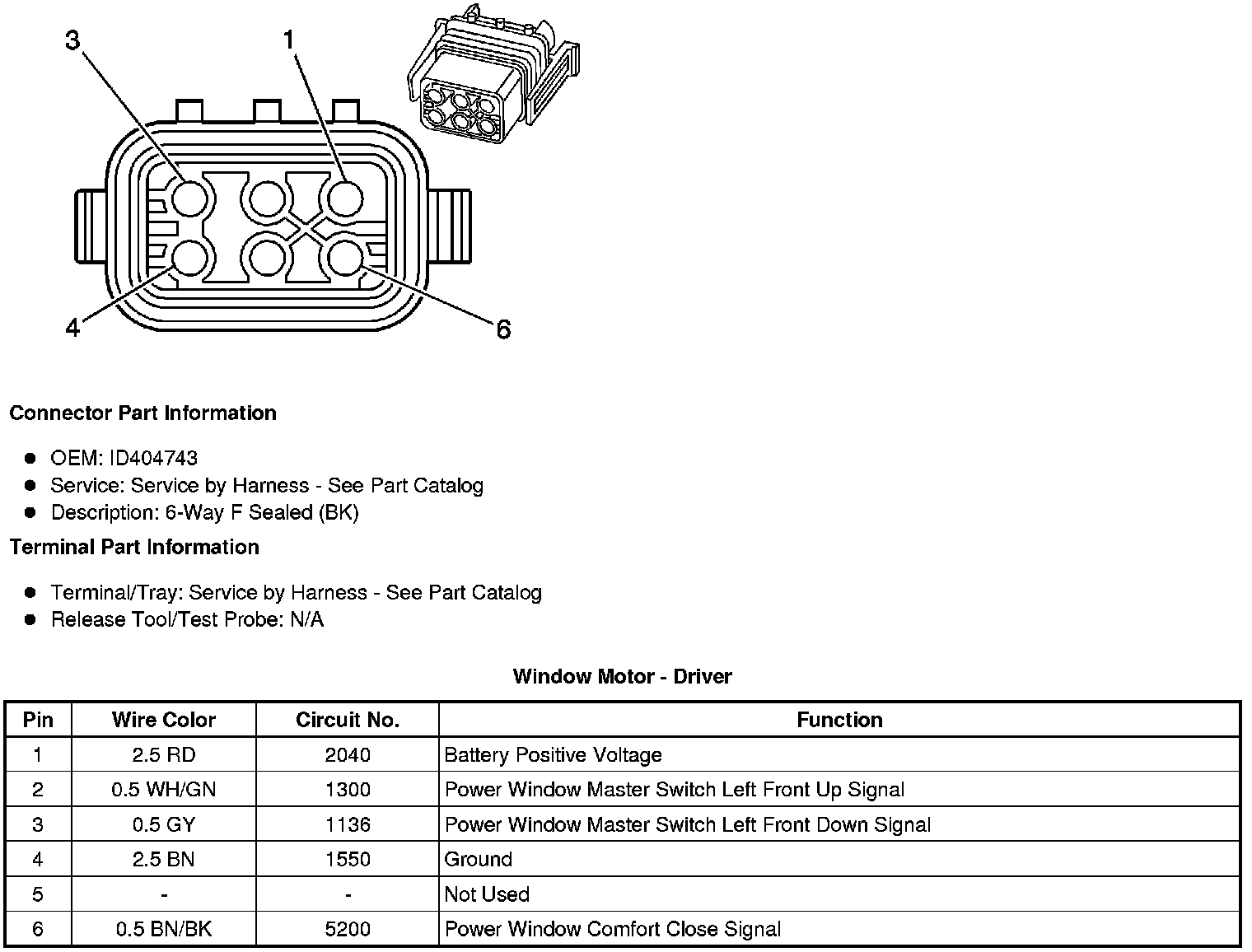

Window Motor - Driver

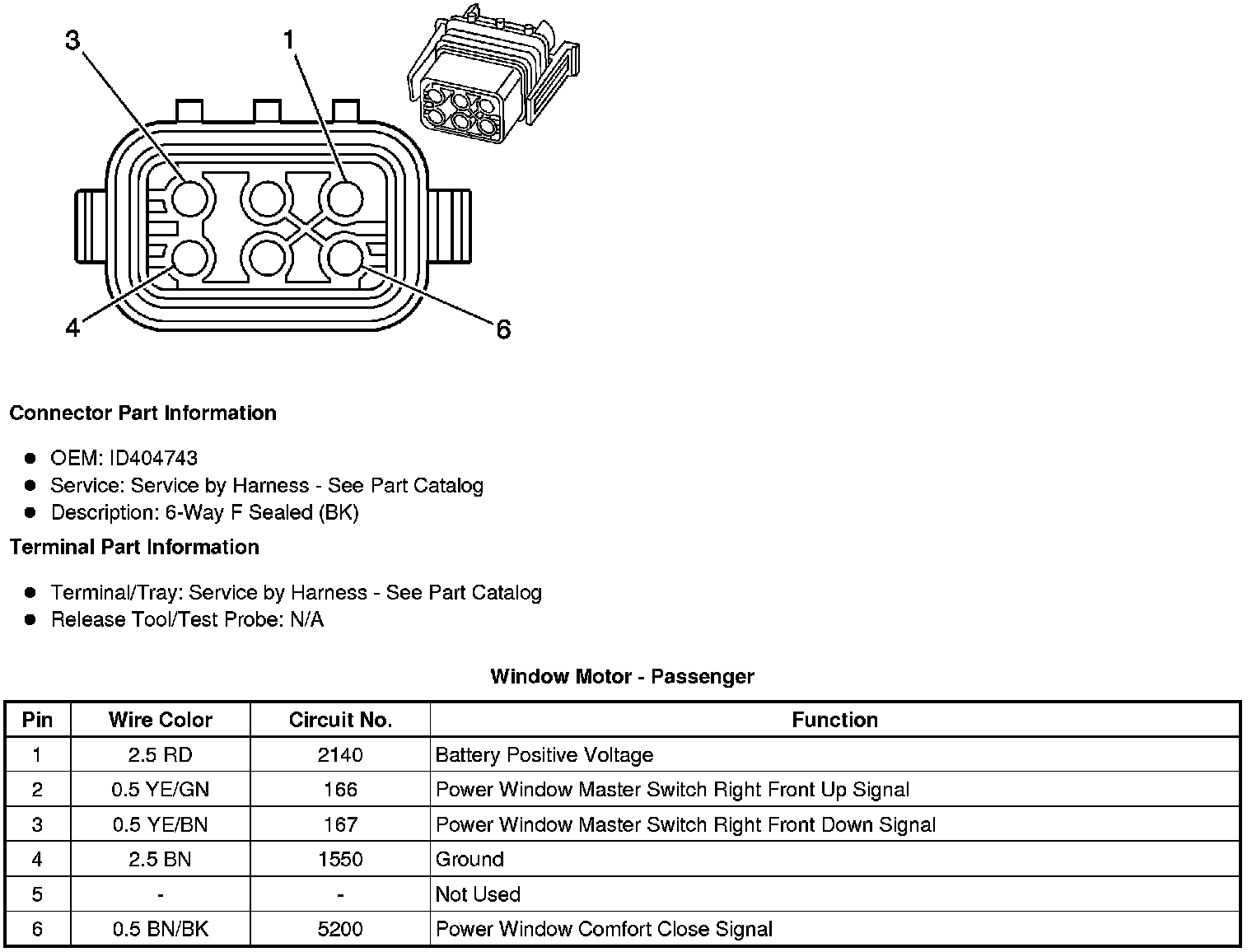

Window Motor - Passenger
