Home >> Saturn >> 2007 >> Sky L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Acceleration/Deceleration Sensor

Acceleration/Deceleration Sensor

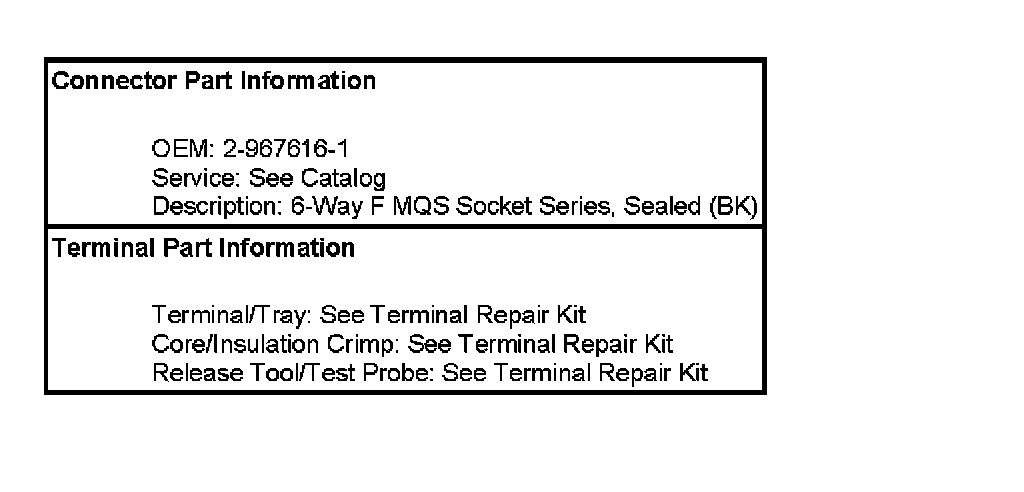

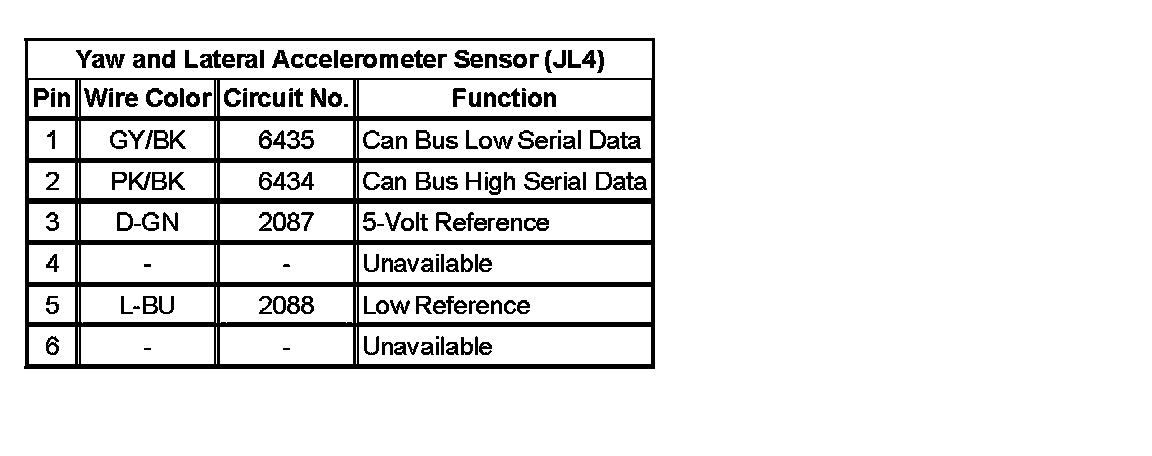

Yaw and Lateral Accelerometer Sensor (JL4)







Yaw And Lateral Accelerometer Sensor (JL4):
