Home >> Saturn >> 2007 >> ION L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp

Courtesy Lamp

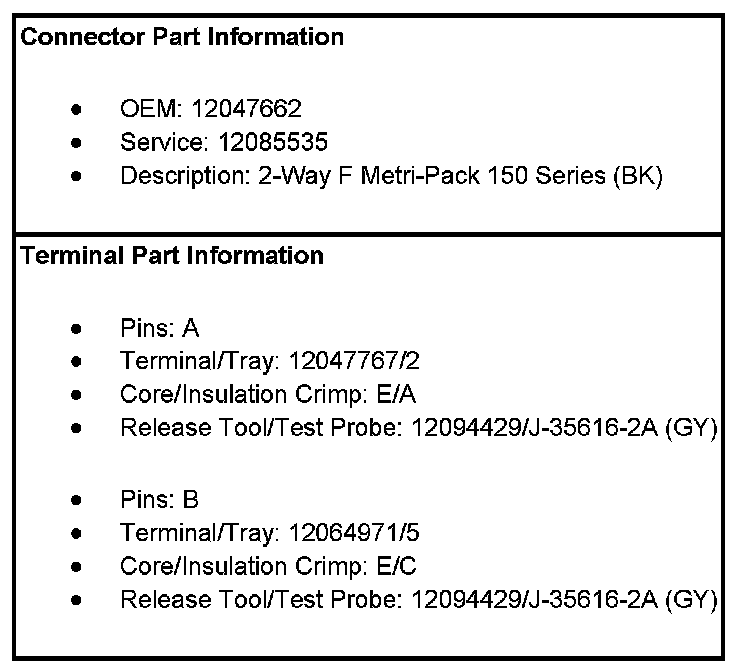

Lighting Systems Connector End Views

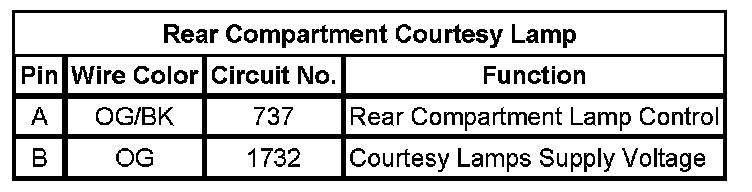

Rear Compartment Courtesy Lamp
