Home >> Saturn >> 2007 >> ION L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> Headlamp Relay

Headlamp Relay

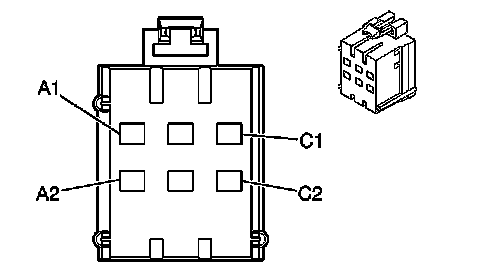

Lighting Systems Connector End Views

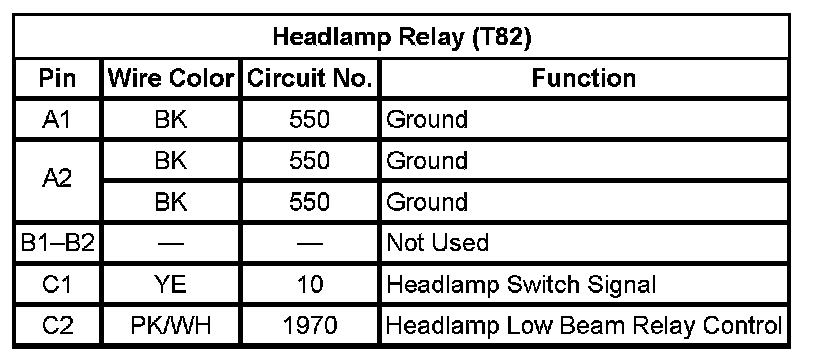

Headlamp Relay (T82)
