Home
>>
Saturn
>>
2006
>>
ION L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Driver Controls:

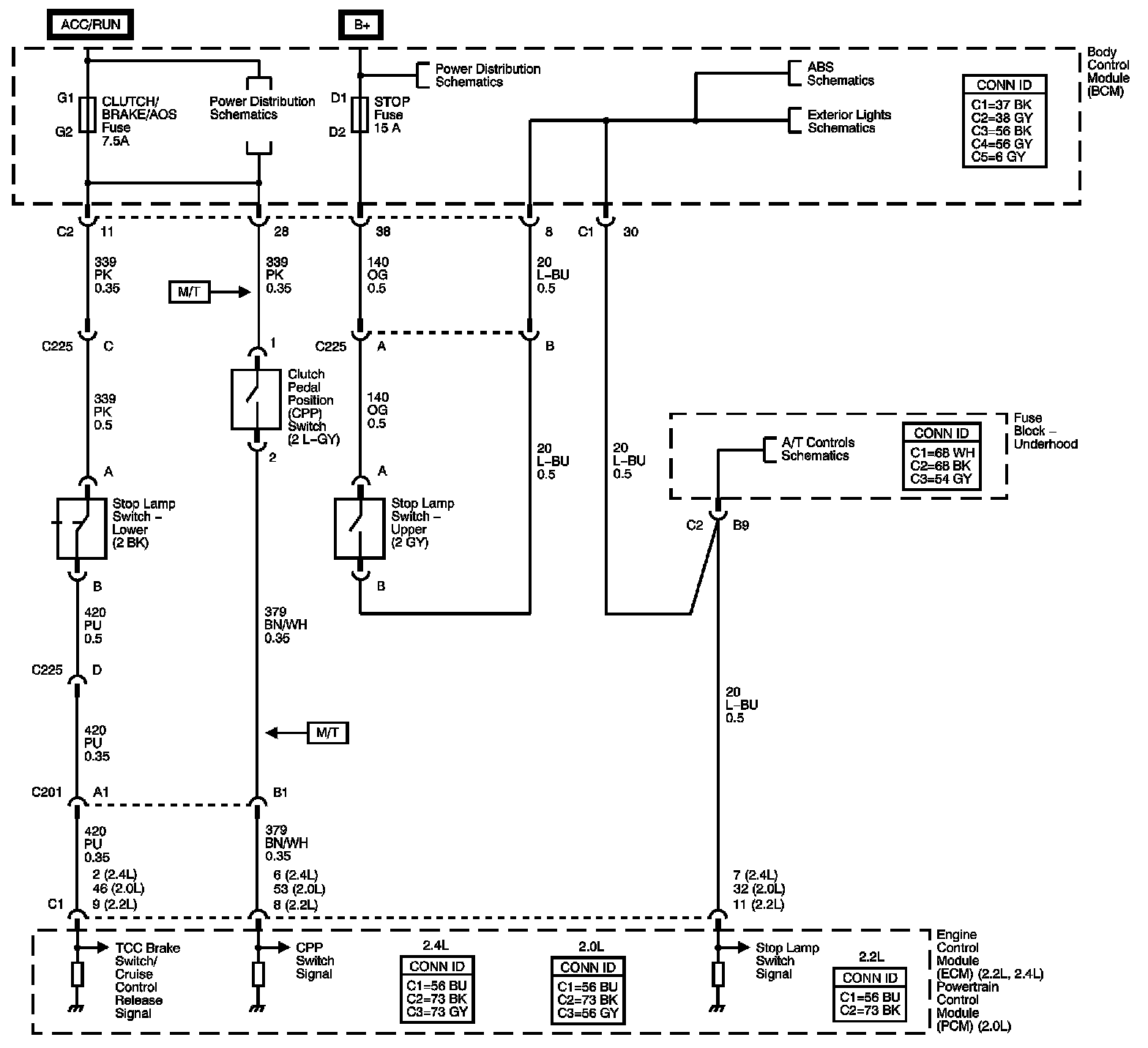

Stop Lamp and Clutch Switches:

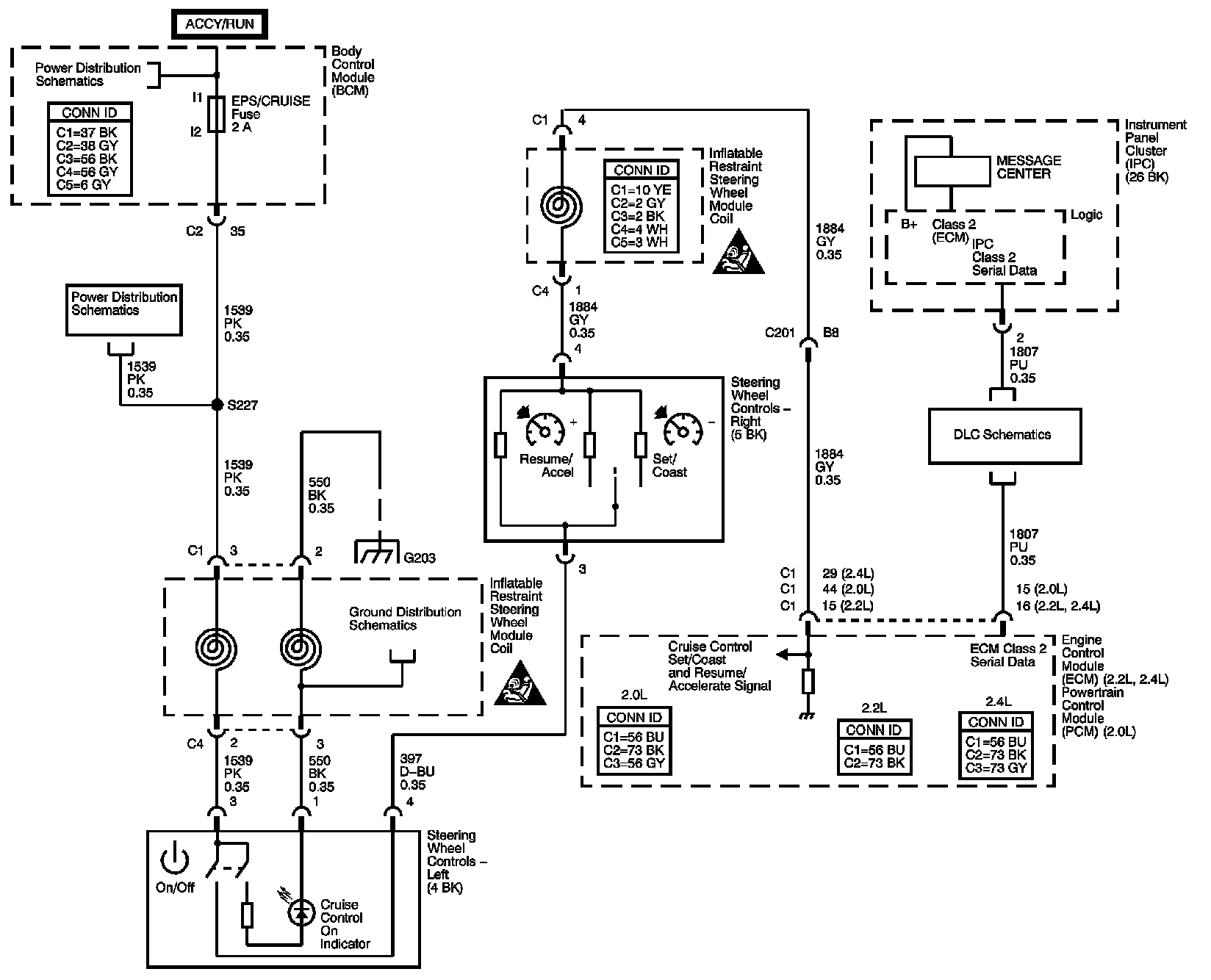

Cruise Control
Schematics
